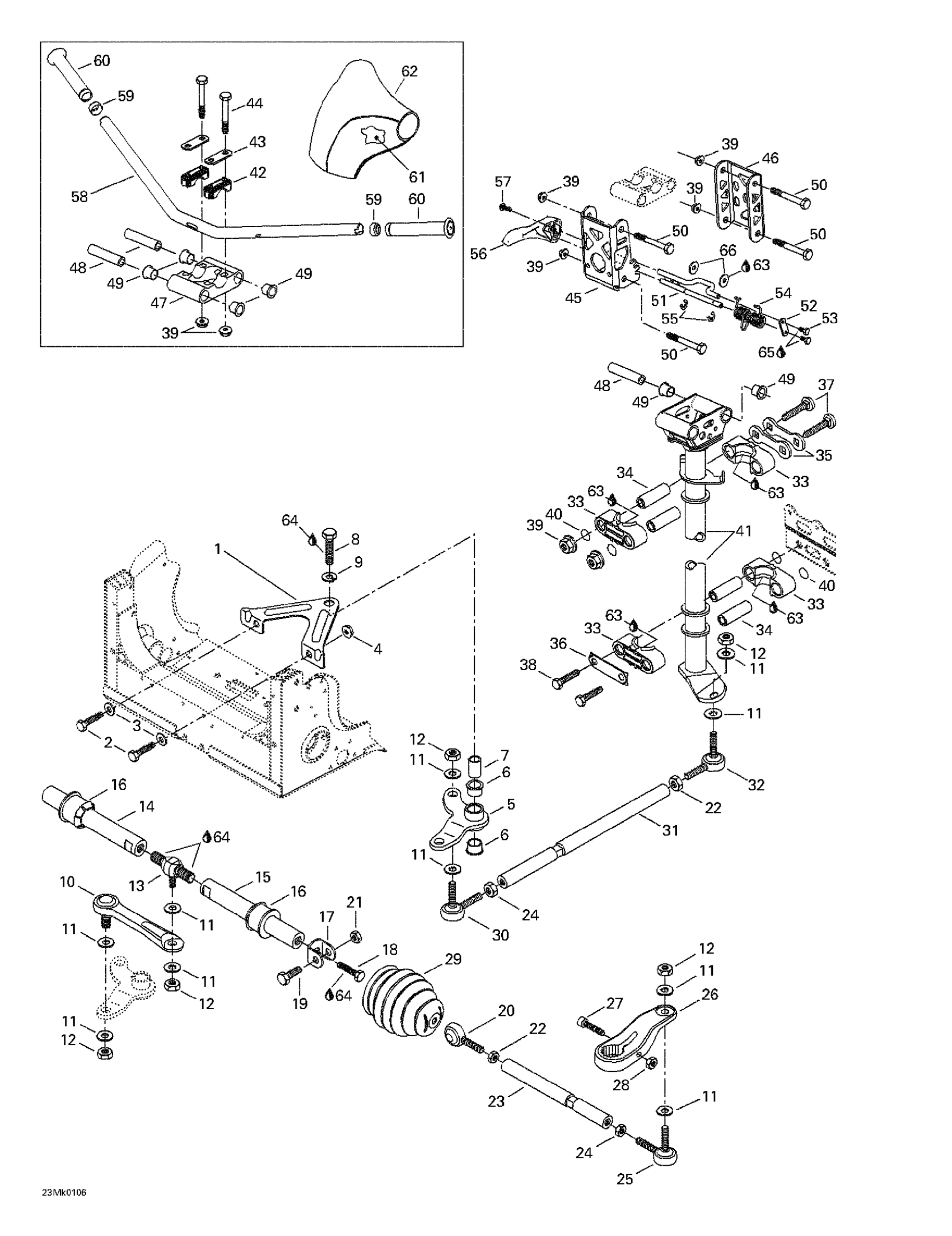

Ski-Doo Grand Touring 800 SE, 2001 07- Steering System Diagram

#

Description
Price

1

PIVOT SUPPORT - Call your local BRP dealership

506138400

Unavailable

2

Hex. Screw M6 X 60

207066044

$0.67

3

Flat Washer

224061121

$0.53

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Pivot Arm

506129500

Unavailable

6

CUSHION - Call your local BRP dealership

415041100

Unavailable

7

Pivot

506131500

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Lock Washer Helical M10

234101411

$0.23

10

Ball Stud Lever

415059800

Unavailable

11

Washer

503175800

$3.28

12

Elastic Flange Nut M10

232501416

$1.48

13

Ball Joint (Double)

415053300

Unavailable

14

Sliding Bar (Long)

506129402

Unavailable

15

Sliding Bar (Short)

506129400

Unavailable

16

Cushion

572108500

Unavailable

17

Bracket

506138300

Unavailable

18

Hex. Screw M10 X 25

207102544

$1.37

19

Hex. Screw M8 X 45

207084544

$1.48

20

LH Ball Joint

415048600

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

LH Threaded Hex. Jam Nut M10

250100016

$0.74

23

Tie-Rod

506129600

Unavailable

24

RH Threaded Hex. Jam Nut M10

732610010

$0.74

25

Ball Joint

506151491

$45.99

26

RH Steering Arm

506151385

Unavailable

LH Steering Arm

506151386

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

Hex. Elastic Stop Nut M8

232581414

$0.56

29

Tie-Rod Cap

570054100

Unavailable

30

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

31

Tie-Rod

506151394

Unavailable

32

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

33

Housing Half

506150400

$7.62

34

Housing Bushing

506150500

$7.99

35

Stopper Plate

506150600

$4.39

36

Lock Tab

506151332

Unavailable

37

Carriage Bolt M8 X 70

207787044

$1.37

38

Hex. Screw M8 X 55

207085544

$1.68

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

O-RING - Call your local BRP dealership

506151140

Unavailable

41

Main Tube | Mach Z (Tech Plus).

506151165

Unavailable

42

Steering Support

709400919

$22.49

43

Stiffner

709400509

$4.69

44

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

45

FRONT ARM - Call your local BRP dealership

506151156

Unavailable

46

Rear Arm

506151152

Unavailable

47

Clamp

506151147

Unavailable

48

Spacer

506151146

Unavailable

49

Cushion

506152520

$15.72

50

HEX. FLANGED SCREW M8 X 80 - Call your local BRP dealership

207688044

Unavailable

51

Lock

506151162

Unavailable

52

Plate

506151240

Unavailable

53

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

54

SPRING - Call your local BRP dealership

506151219

Unavailable

55

Circlip

414274500

$0.90

56

HANDLE - Call your local BRP dealership

506151188

Unavailable

57

Socket Head Screw M4 X 12

205041254

$2.11

58

Handlebar

506142000

Unavailable

59

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

60

RH Grip 6-1/2"

506151530

$16.49

61

Foam | Mach Z (Tech Plus).

506151285

Unavailable

62

Steering Padding Cover

506151302

Unavailable

63

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

64

Loctite 271, 10 ml

293800005

$26.99

65

Loctite 243, 10 ml

293800060

$21.49

66

Washer

517302265

Unavailable
