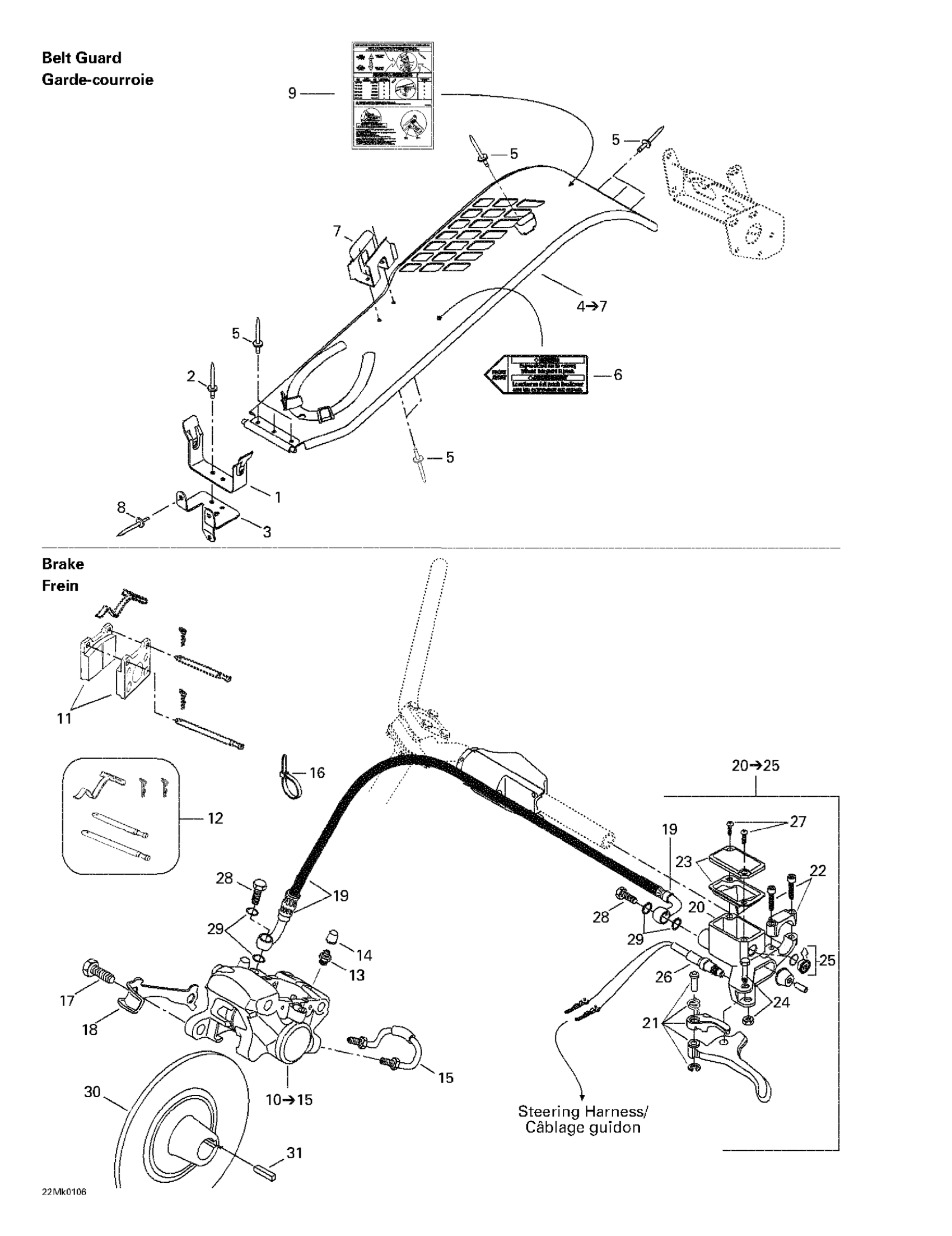

Ski-Doo Grand Touring 800 SE, 2001 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Belt Guard Bracket

518202100

$15.64

2

Pop Rivet 3/16"

390402200

$0.30

3

Pulley Guard Support

518317000

Unavailable

4

Belt Guard Ass'y | Includes 4 - 7.

417300050

Unavailable

5

Pop Rivet 3/16"

390402200

$0.30

6

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

7

Bracket

517281905

$14.90

8

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

9

Suspension Adjustment Decal (SE) | Grand Touring 600. Grand Touring 800.

516000953

Unavailable

10

Caliper | Includes 10 - 15.

414920000

Unavailable

11

Brake Pad Kit

415084600

$73.85

12

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

13

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

14

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

15

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

16

Tie Wrap 368 mm

293750008

$0.97

17

Hex. Screw M10 X 35

207103544

$1.63

18

Locking Tab

507031900

Unavailable

19

Hose | Mach Z (Tech Plus).

507032272

Unavailable

20

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$328.33

21

LEVER - Call your local BRP dealership

507032428

Unavailable

22

Clamp And Screw Kit

507032477

$22.36

23

Cap

415029900

$38.78

24

Pin Ass'y

415030000

$17.13

25

WINDOW - Call your local BRP dealership

414990600

Unavailable

26

Microswitch

507032366

$101.46

27

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

28

Banjo Bolt

414920500

$8.24

29

Washer

414920600

$1.75

30

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

31

KEY - Call your local BRP dealership

507021300

Unavailable
