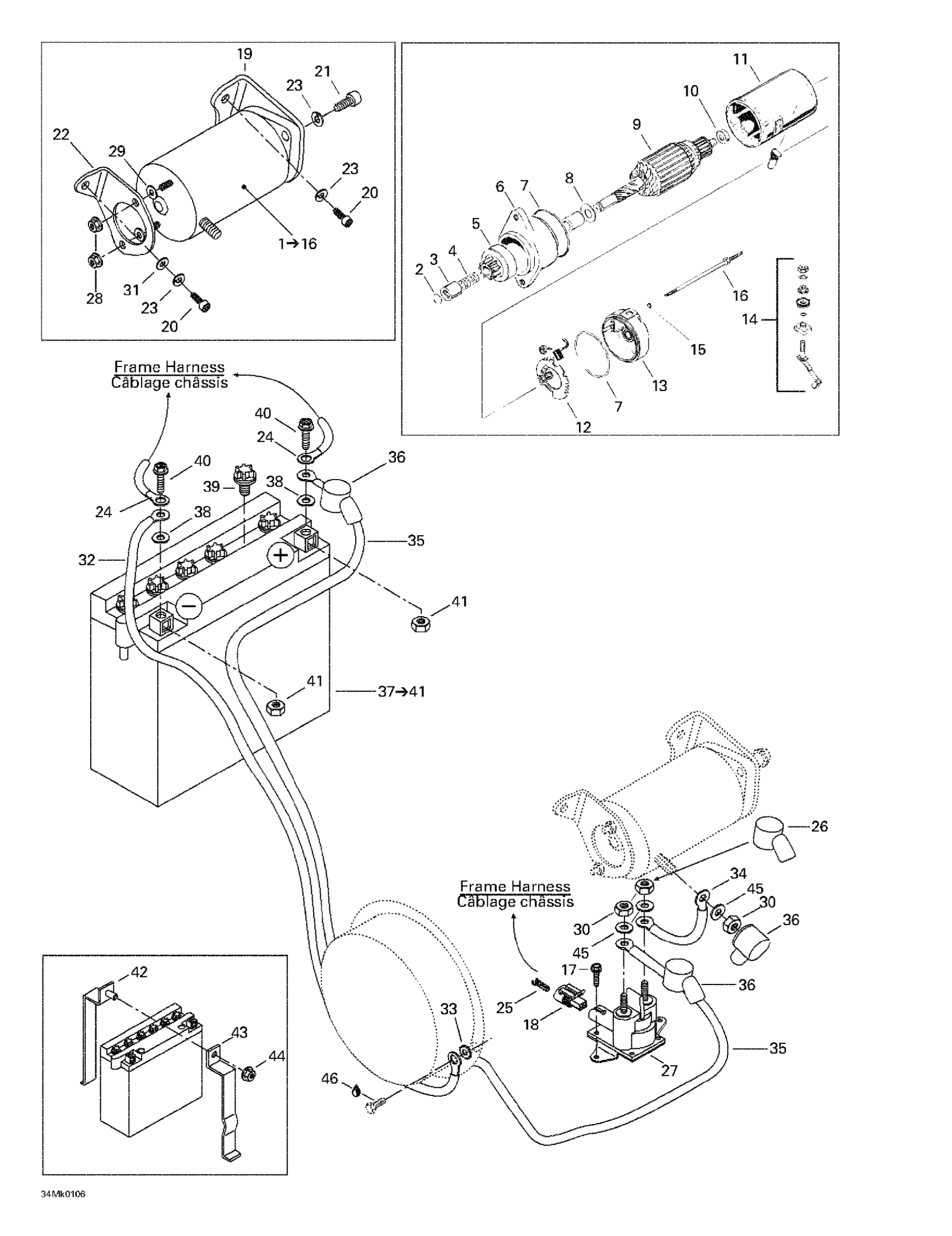

Ski-Doo Grand Touring 800 SE, 2001 04- Electric Starter And Battery Diagram

#

Description
Price

1

Electric Starter | Includes 1 - 16.

515175305

Unavailable

2

SNAP RING - Call your local BRP dealership

410207700

Unavailable

3

STOP BUSHING - Call your local BRP dealership

410207800

Unavailable

4

SPRING - Call your local BRP dealership

410213101

Unavailable

5

Starter Clutch

410208000

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

O-Ring

278000695

$14.24

8

Flat Washer

278000054

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

THRUST WASHER - Call your local BRP dealership

278000056

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Brush Holder

410213105

Unavailable

13

Commutator End Frame

278000251

Unavailable

14

Brush Kit

410212100

$33.99

15

O-RING - Call your local BRP dealership

278000060

Unavailable

16

RETAINER STUD - Call your local BRP dealership

278000170

Unavailable

17

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

18

Male Connector, 2 Circuits

278001113

$16.86

19

Starter Bracket (PTO)

512059209

Unavailable

20

Socket Head Screw M8 X 20

205082044

$1.15

21

Socket Head Screw M8 X 25

205082544

$1.15

22

Starter Bracket (MAG)

512059208

Unavailable

23

Lock Washer 8 mm

234181401

$0.92

24

Open Barrel Terminal

278001392

$4.79

25

Female Terminal

278001114

$3.19

26

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

27

Starter Relay

278003012

$42.49

28

Hex. Flange Elastic Nut M5

233251414

$1.04

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Elastic Stop Nut M6

232561414

$0.55

31

Flat Washer 8 mm

234081410

$0.83

32

Ground Wire | Formula Deluxe 380 F.

515175425

Unavailable

33

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

34

Battery Wire

515175101

Unavailable

35

Battery Wire

515166400

Unavailable

36

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

37

Battery | Includes 4 - 8.

410301100

Unavailable

38

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

39

Battery Cap

410300800

Unavailable

40

Hex. Screw M6 X 16

207161644

$0.74

41

Hex. Nut M6

232061414

$0.53

42

Steel Strip (Weld)

517290400

Unavailable

43

Steel Strip

517290402

Unavailable

44

Hex. Flange Elastic Nut M5

233251414

$1.04

45

Flat Washer 6 mm

234061410

$1.36

46

Loctite 271, 10 ml

293800005

$26.99
