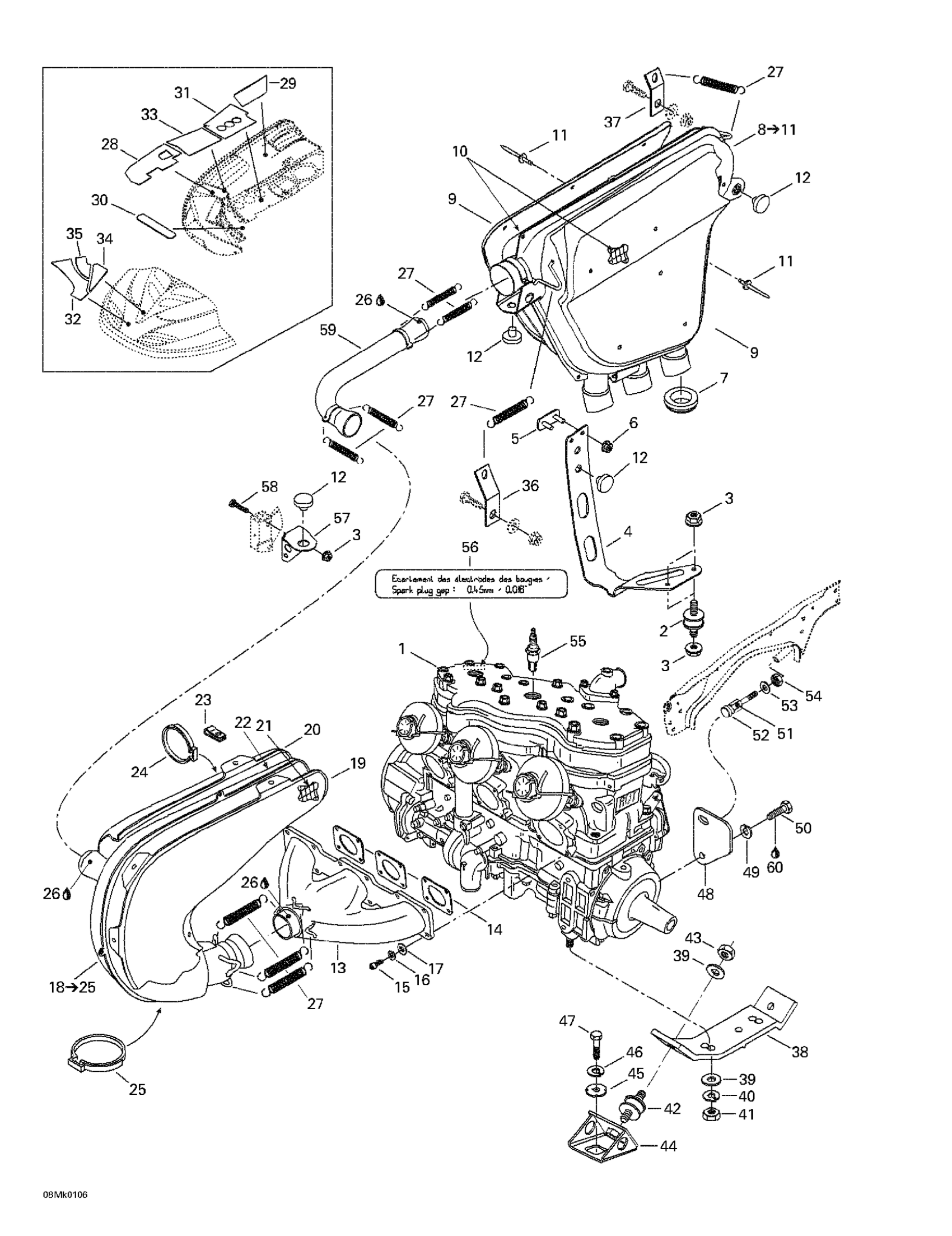

Ski-Doo Grand Touring 800 SE, 2001 01- Engine Support Diagram

#

Description
Price

1

Engine <<809>>

400800309

Unavailable

2

Rubber Mount | Formula DLX 500 F.

514052838

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Support

514052887

Unavailable

5

Bracket

517294300

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Exhaust Grommet

570066200

Unavailable

8

Muffler Ass'y | Includes 8 - 11.

514053052

Unavailable

9

RH Heat Shield

514052900

Unavailable

LH Heat Shield

514047200

Unavailable

10

RH Insulator

514052901

Unavailable

LH Insulator

514047300

Unavailable

11

Pop Rivet 3/16”

390910000

$0.57

12

Rubber Bumper

514053654

$50.99

13

Exhaust Socket

420979970

Unavailable

14

Gasket

420850552

$8.85

15

Socket Head Screw M6 X 25

205062544

$1.15

16

Lock Washer M6, Black

234161471

$0.53

17

Flat Washer 6 mm

234061410

$1.36

18

Tuned Pipe Ass'y | Includes 18 - 25.

514053070

Unavailable

19

Upper Shell

514097807

Unavailable

20

Lower Shell

514097806

Unavailable

21

Upper Insulator

514097808

Unavailable

22

Lower Insulator

514097809

Unavailable

23

Cleat

514046503

Unavailable

24

Norma Gear Clamp | Grand Touring 500.

514052962

Unavailable

25

Norma Gear Clamp | Grand Touring 600.

514052902

Unavailable

26

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

27

Spring

415107100

$6.35

28

Reflective Sheet

514098000

Unavailable

29

RH Reflective Sheet

415083800

Unavailable

30

Reflective Sheet

415111900

Unavailable

31

Reflective Sheet

415115000

Unavailable

32

RH Reflective Sheet

415112300

Unavailable

LH Reflective Sheet

415112400

Unavailable

33

Reflective Sheet

415084000

Unavailable

34

RH Reflective Sheet

415112500

Unavailable

LH Reflective Sheet

415112600

Unavailable

35

RH Reflective Sheet

415114800

Unavailable

LH Reflective Sheet

415114900

Unavailable

36

Spring Bracket

514052968

Unavailable

37

Spring Bracket

514051000

Unavailable

38

Engine Support (MAG Side)

512059089

Unavailable

Engine Support (PTO Side)

512059090

Unavailable

39

Flat Washer 10 mm

234001410

$1.26

40

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

41

Hex. Nut M10 X 1.5

232006414

$1.37

42

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

43

Elastic Locking Nut M10 X 1.5

233601416

$1.69

44

Engine Support

512050900

Unavailable

45

Lock Washer

512056700

$3.17

46

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

47

Hex. Screw M10 X 25

207102544

$1.37

48

STOPPER PLATE - Call your local BRP dealership

512056000

Unavailable

49

Lock Washer 8 mm

234181401

$0.92

50

Hex. Screw M8 x 16

207181644

$1.15

51

Stopper Screw

512056900

Unavailable

52

STOPPER - Call your local BRP dealership

512059055

Unavailable

53

Washer

512059058

Unavailable

54

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

55

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

56

Spark Plug Decal

516000986

Unavailable

57

Pipe Su Deg.pport

514049900

Unavailable

58

Hex. Screw M8 X 55

207085544

$1.68

59

Tail Pipe

514052801

Unavailable

60

Loctite 271, 10 ml

293800005

$26.99
