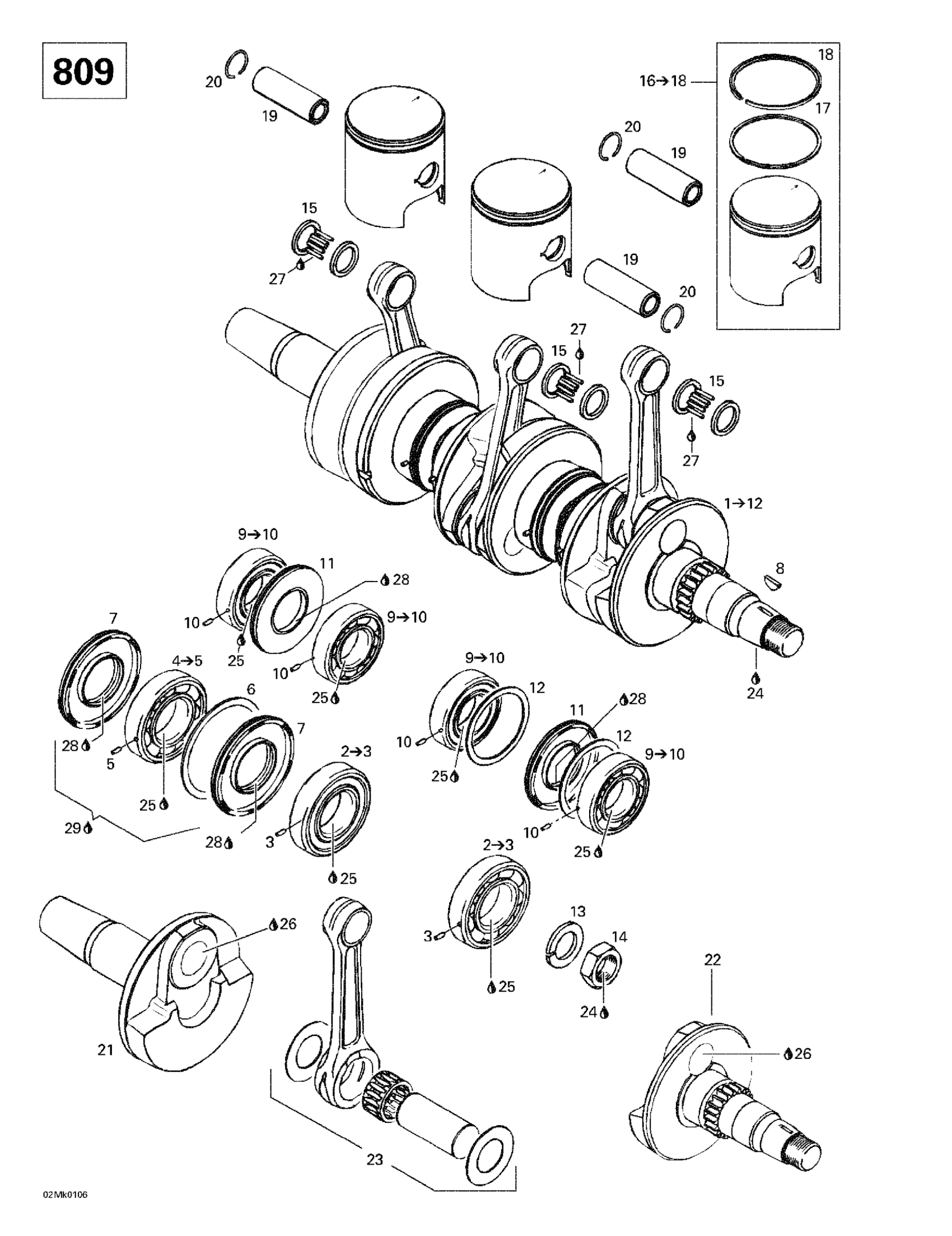

Ski-Doo Grand Touring 800 SE, 2001 Crankshaft And Pistons (809) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 12.

420887662

Unavailable

2

Ball Bearing Ass'y | Includes 2 - 3.

420432272

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ball Bearing Ass'y | Includes 4 - 5.

420832580

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Washer

420926190

$9.37

7

Oil Seal

420931280

$49.20

8

Woodruff Key

420246015

$3.11

9

Ball Bearing Ass'y | Includes 9 - 10.

420832630

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Oil Seal This part replaces 290831952.

420831952

$14.27

12

Retaining Disk

420927710

$7.23

13

Lock Washer, 22 mm

420945759

$1.55

14

Hex. Nut, M22 X 1.5

420842239

$14.27

15

Needle Bearing

420832320

$24.67

16

Piston Ass'y | Includes 16 - 18.

420887643

Unavailable

17

Rectangular Ring 70.5 mm

420915988

Unavailable

18

Semi-Tapez Ring 70.5 mm

420815049

Unavailable

19

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

20

Piston Circlip

420945735

$3.93

21

Crankshaft (PTO Side)

420818572

Unavailable

22

Crankshaft (MAG Side)

420818583

Unavailable

23

ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership

420887663

Unavailable

Rod Repair Kit (MAG/Center Side)

420887664

Unavailable

24

Loctite 243, 10 ml

293800060

$20.77

25

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

26

Sealant Loctite 648

219703000

$35.72

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

28

Petamo Grease, GHY133N, 400 g

420899271

$57.17

29

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
