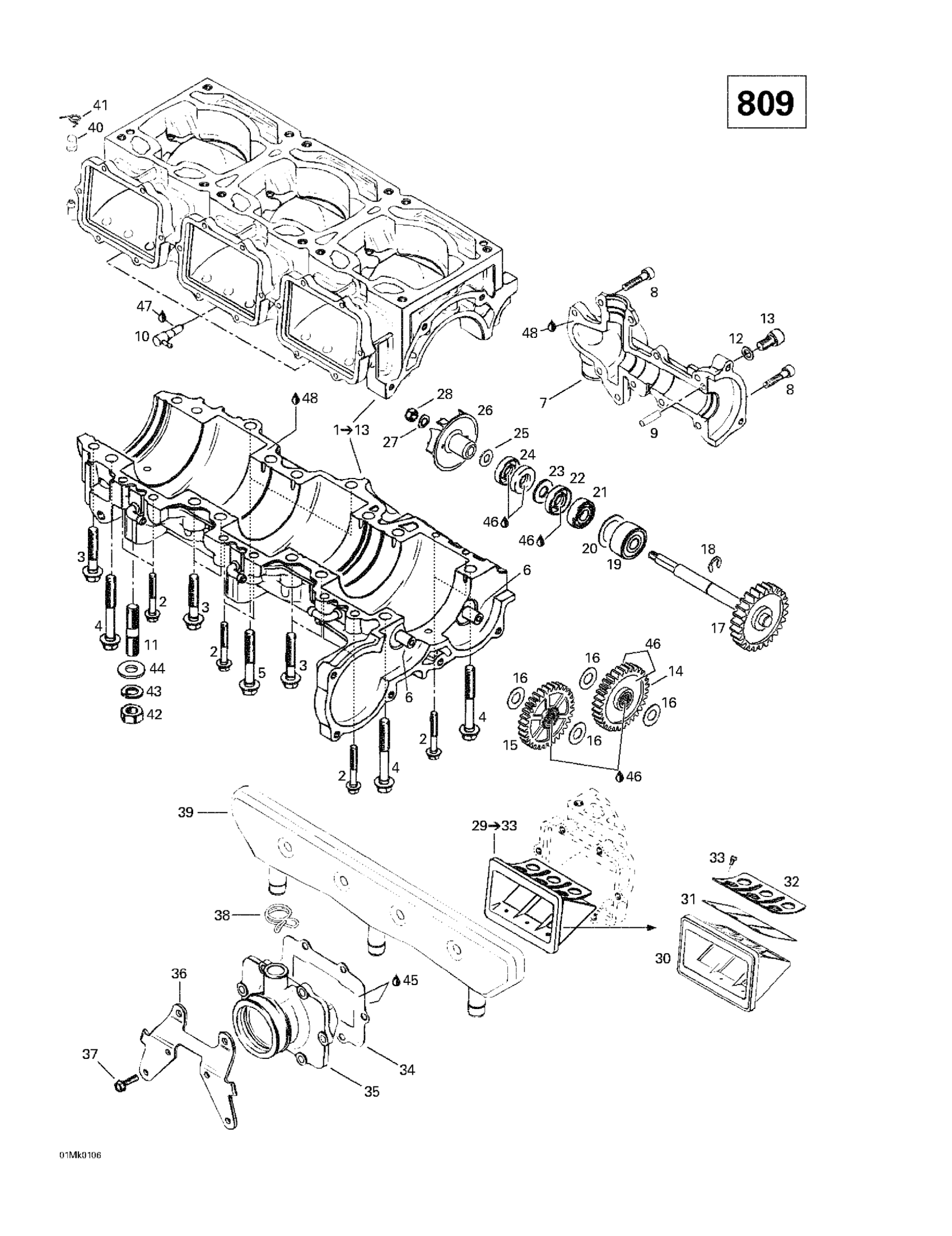

Ski-Doo Grand Touring 800 SE, 2001 Crankcase, Reed Valve, Water Pump (809) Diagram

#

Description
Price

1

Crankcase Water Pump Cover Ass'y | Includes 1 - 13.

420888731

Unavailable

2

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

3

Hex. Collar Screw M8 x 45

420640432

$1.88

4

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$5.91

5

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

6

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420929935

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Socket Head Screw M6 X 25

205062544

$1.01

9

Dowel Pin

420429230

Unavailable

10

Check Valve

420956511

$32.81

11

Stud M10 x 25

420940400

Unavailable

12

Sealing Ring

420950141

$1.88

13

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

14

Sprocket (32 Teeth)

420834395

Unavailable

15

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420927952

Unavailable

17

Waterpump - Shaft/Gear Ass'y

420837431

Unavailable

18

RETAINING RING - Call your local BRP dealership

420845390

Unavailable

19

Bearing_Ball - Call your local BRP dealership

420832490

Unavailable

20

SHIM 1 MM - Call your local BRP dealership

420944466

Unavailable

21

Ball Bearing

420232100

$17.88

22

Oil Seal

420230195

$14.52

23

Flat Washer M10 This part replaces 420927410.

420927411

$2.00

24

OIL SEAL - Call your local BRP dealership

420950400

Unavailable

25

Washer

420227155

Unavailable

26

Impeller Water

420922445

Unavailable

27

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

28

Locking Nut M6

420842042

Unavailable

29

Reed Valve Ass'y

420924519

$49.22

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Reed Pedal

420924532

$42.51

32

Reed Pedal Stop

420924539

$11.18

33

Phillips Screw M3 X 5

420941215

$1.63

34

GASKET 1 MM - Call your local BRP dealership

420950292

Unavailable

35

INTAKE SOCKET - Call your local BRP dealership

420867848

Unavailable

36

CARRIER - Call your local BRP dealership

420851351

Unavailable

37

Hex. Tapping Screw M5 X 20

420841555

$1.63

38

Clamp

420851360

Unavailable

39

Intake Resonator

420867797

Unavailable

40

Cap

420960770

$3.88

41

CLAMP - Call your local BRP dealership

420938190

Unavailable

42

Hex. Nut M10 X 1.5

232006414

$1.27

43

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

44

Flat Washer 10 mm

234001410

$1.12

45

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

46

Dow Corning 111, 150 g

413707000

$59.99

47

Sealant Loctite 648

219703000

$41.01

48

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
