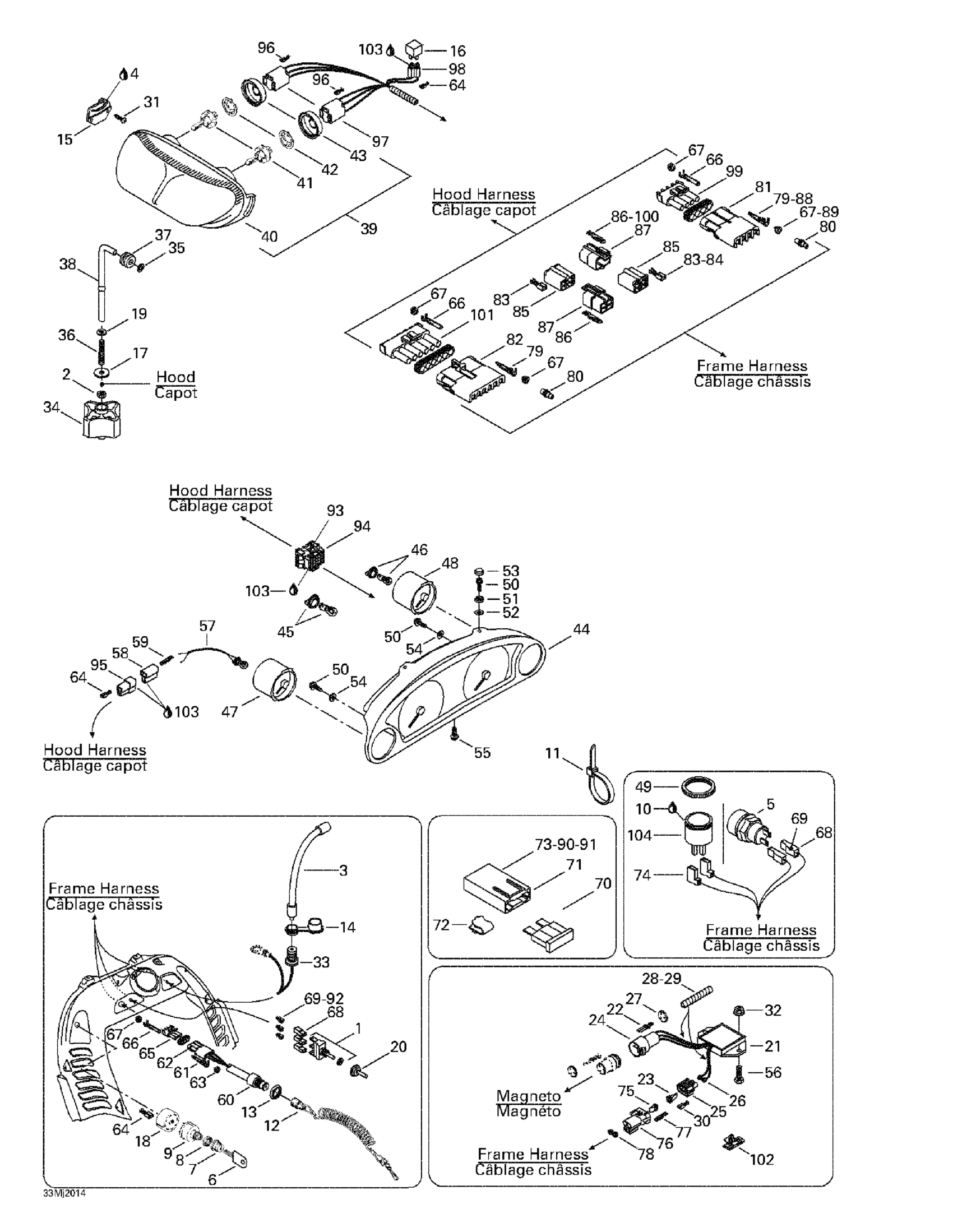

Ski-Doo Grand Touring 700, 2000 10- Electrical System Diagram

#

Description
Price

1

Switch (Compressor) | Grand Touring 600. Grand Touring 800.

410111500

Unavailable

2

Elastic Stop Nut M6

232561414

$0.55

3

EXTENSION - Call your local BRP dealership

515175971

Unavailable

4

Grease Tube Lmz, 400 G

413707500

Unavailable

5

Push Button

415130372

$122.49

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

12

DESS

515178284

$84.99

13

Safety Nut (DESS Switch)

278002963

$3.28

14

Cap

572103300

$10.49

15

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

16

Relay | DS 650 X

710010053

$23.49

17

Washer

224060251

$0.58

18

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

19

Flat Washer 6 mm

234061410

$1.36

20

Switch Cover

515175281

$15.99

21

Voltage Regulator | Includes 21 - 30.

515175461

Unavailable

22

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

25

Female Connector Housing (2 Circuits)

409206500

Unavailable

26

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

27

SEAL - Call your local BRP dealership

409208500

Unavailable

28

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

31

Headlamp Screw

732601315

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Visor-Plug

860702700

Unavailable

34

Handle - Call your local BRP dealership

515175548

Unavailable

35

Push Nut

732610072

$2.19

36

SPRING - Call your local BRP dealership

415100600

Unavailable

37

Grommet - Call your local BRP dealership

415100800

Unavailable

38

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

39

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

42

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

Dash

515175512

Unavailable

45

Meter Bulb

410504403

Unavailable

46

Meter Bulb (Small)

410504402

Unavailable

47

Temperature Gauge | GT 700.

515175395

Unavailable

Pressure Gauge

515175394

Unavailable

48

Fuel Gauge

515175396

Unavailable

49

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

50

Screw K40 X 10

241140060

$1.48

51

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

52

Flat Washer 4 mm, Stainless

234042600

$1.15

53

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

54

Washer

517124300

$0.19

55

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

56

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

57

Not Available As Spare Part - Friction Washer

Unavailable

58

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

59

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

60

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

61

Male Terminal | XT Models

278000222

$3.19

62

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

63

Wire Seal

278000218

$4.39

64

Female Terminal

561503100

$2.41

65

Male Housing, 3 Circuits

278000273

$9.59

66

Female Terminal

278000223

$3.19

67

Wire Seal

278000218

$4.39

68

Female Terminal Housing, 1 Circuit

409010400

$7.62

69

Female Terminal

409010100

$5.61

70

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

Fuse, 20 Amperes

409003900

$3.28

Fuse, 30 Amperes

410917200

$3.28

71

Fuse Holder

409004000

$8.09

72

CLIP - Call your local BRP dealership

409014200

Unavailable

73

Female Terminal

409011600

$5.39

74

Female Terminal

409010300

$4.39

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Not Available As Spare Part - Friction Washer

Unavailable

77

Male Terminal

409010900

Unavailable

78

Seal

409208300

Unavailable

79

Male Terminal | XT Models

278000222

$3.19

80

Wire Seal

278000216

$3.19

81

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

82

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

83

Female Terminal PACKARD

561503200

Unavailable

84

FEMALE TERMINAL - Call your local BRP dealership

515175313

Unavailable

85

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

86

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

87

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

88

Male Terminal

409004300

$5.61

89

Wire Seal

710000048

$7.69

90

Not Available As Spare Part - Friction Washer

Unavailable

91

Not Available As Spare Part - Friction Washer

Unavailable

92

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

93

Female Terminal

409013500

Unavailable

94

Not Available As Spare Part - Friction Washer

Unavailable

95

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

96

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

97

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

98

Female Housing, 5 Circuits

409209900

$9.59

99

Male Housing, 4 Circuits

278000395

$15.99

100

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

101

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

102

Housing Support

515175283

$9.19

103

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

104

HORN - Call your local BRP dealership

515176035

Unavailable
