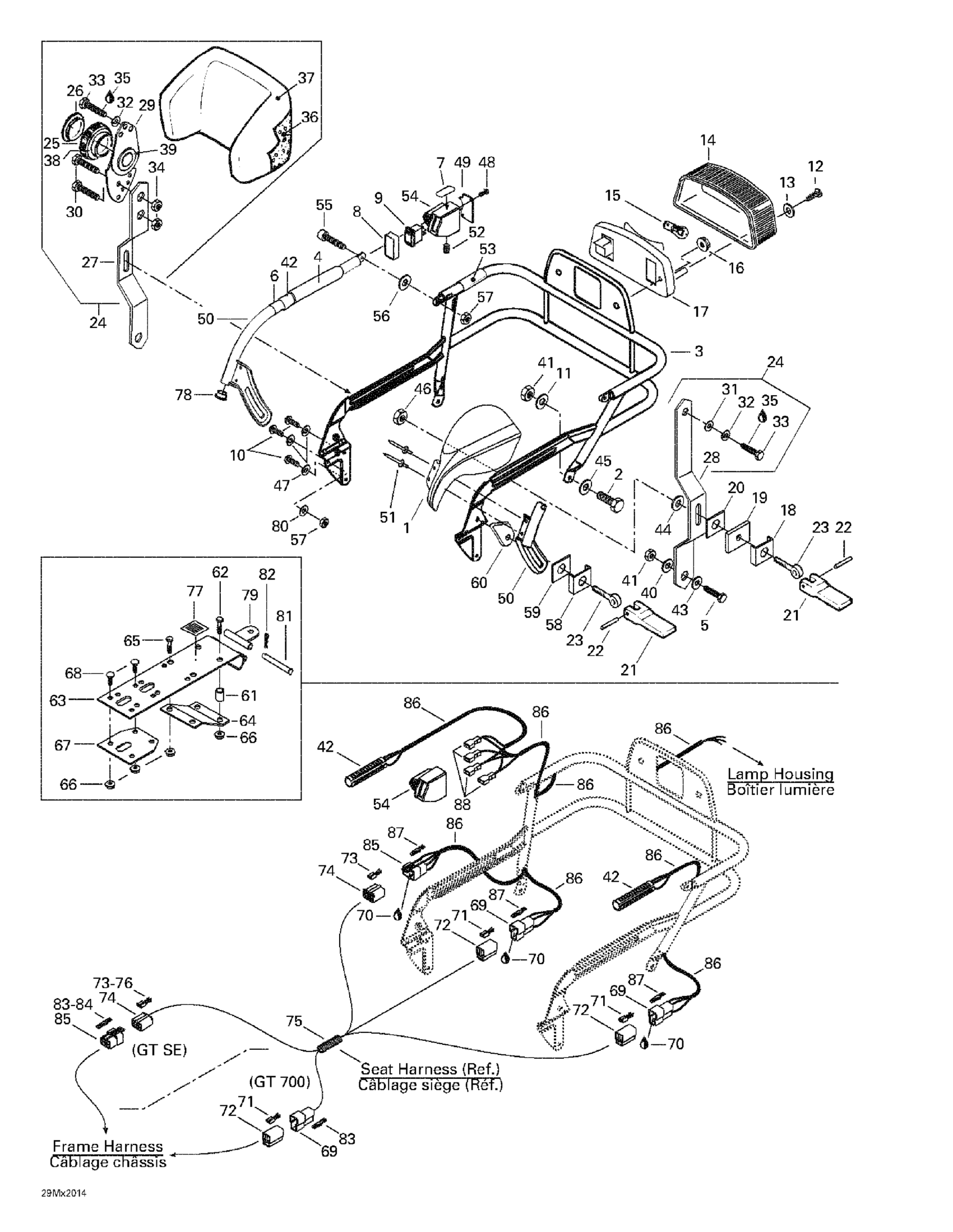

Ski-Doo Grand Touring 700, 2000 09- Luggage Rack, Hitch Diagram

#

Description
Price

1

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

2

Hex. Screw M8 X 20

207182044

$0.74

3

Rack Ass’Y

511000124

Unavailable

Rack Ass'y | GT SE Millennium Edition.

511000121

Unavailable

4

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

5

Hex. Screw M8 X 25

207182584

Unavailable

6

Reflective Sheet

414988700

Unavailable

7

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

8

Switch Protector

511000002

Unavailable

9

Rocker Switch

511000001

Unavailable

10

Hex. Flange Screw M6 X 16

210261650

$1.67

11

Yellow, Washer

503183200

$3.19

12

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Lens

414513700

$28.99

15

Bulb

520000758

$9.10

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Lamp Housing

515175405

Unavailable

18

Guide

517257300

Unavailable

19

Rubber Shim

570027400

Unavailable

20

SPACER - Call your local BRP dealership

517251300

Unavailable

21

Lock Lever

572038200

Unavailable

22

Pin

414821400

$7.55

23

Eye Bolt

517257600

Unavailable

24

Backrest Ass'y | Includes 1 - 16.

510003783

Unavailable

Backrest Ass'y | GT SE.

510003560

Unavailable

25

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

26

Cap

414821000

Unavailable

27

RH Arm

517296400

Unavailable

28

LH Arm

517296500

Unavailable

29

Recliner

414813300

Unavailable

30

Hex. Screw M8 X 25

207182544

$0.90

31

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

32

Lock Washer 8 mm

234181401

$0.92

33

Hex. Screw M8 X 20

207182044

$0.74

34

Hex. Elastic Stop Nut M8

232581414

$0.56

35

Loctite 243, 10 ml

293800060

$21.49

36

Backrest Foam

414821200

Unavailable

37

Backrest Cover

510003782

Unavailable

Backrest Cover | GT SE.

510003562

Unavailable

38

STRIP - Call your local BRP dealership

415015500

Unavailable

39

Cap

517250500

Unavailable

40

Washer

414819600

Unavailable

41

Hex. Elastic Stop Nut M8

232581414

$0.56

42

Heating Grip

515175573

$63.99

43

Stainless Steel Flat Washer 8 mm

234081670

$0.67

44

Washer

414819500

Unavailable

45

Flat Washer 8 mm

234081410

$0.83

46

Nut

517250000

Unavailable

47

Lock Washer Helical M6

234161601

$1.15

48

Screw

732601255

Unavailable

49

Plate

572089300

Unavailable

50

RH Arm, Rack

511000012

Unavailable

RH Arm (Rack) | GT SE Millennium Edition.

511000122

Unavailable

LH Am, Rack

517300900

Unavailable

LH Arm (Rack) | GT SE Millennium Edition.

511000123

Unavailable

51

Pop Rivet 3/16"

390906800

$0.93

52

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

53

Grip, Short, 60 mm

415050400

Unavailable

54

Switch Housing

572089200

Unavailable

55

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

56

Flat Washer 6 mm

234062100

$1.26

57

Elastic Stop Nut M6

232561414

$0.55

58

Guide

517290000

Unavailable

59

Outer Spacer

570063800

Unavailable

60

Spacer Block

572088900

Unavailable

61

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

62

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

63

Support

517275500

Unavailable

64

Reinforcement | Europe

517223500

Unavailable

65

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

67

Inner Plate

517256100

Unavailable

68

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

69

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

70

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

71

Female Terminal

561503100

$2.41

72

Female Housing

409204300

Unavailable

73

Female Terminal PACKARD

561503200

Unavailable

74

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

75

Tubing 10 MM 1000MM Long

219704407

$2.79

76

FEMALE TERMINAL - Call your local BRP dealership

515175313

Unavailable

77

Instruction Label (Hitch)

414998500

Unavailable

78

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

79

Hitch Plate Welded

511000521

$16.33

80

Flat Washer 6 mm

234061410

$1.36

81

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

82

Cotter Pin

371800200

$0.53

83

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

84

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

85

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

86

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

87

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

88

Female Terminal

409010700

$5.39
