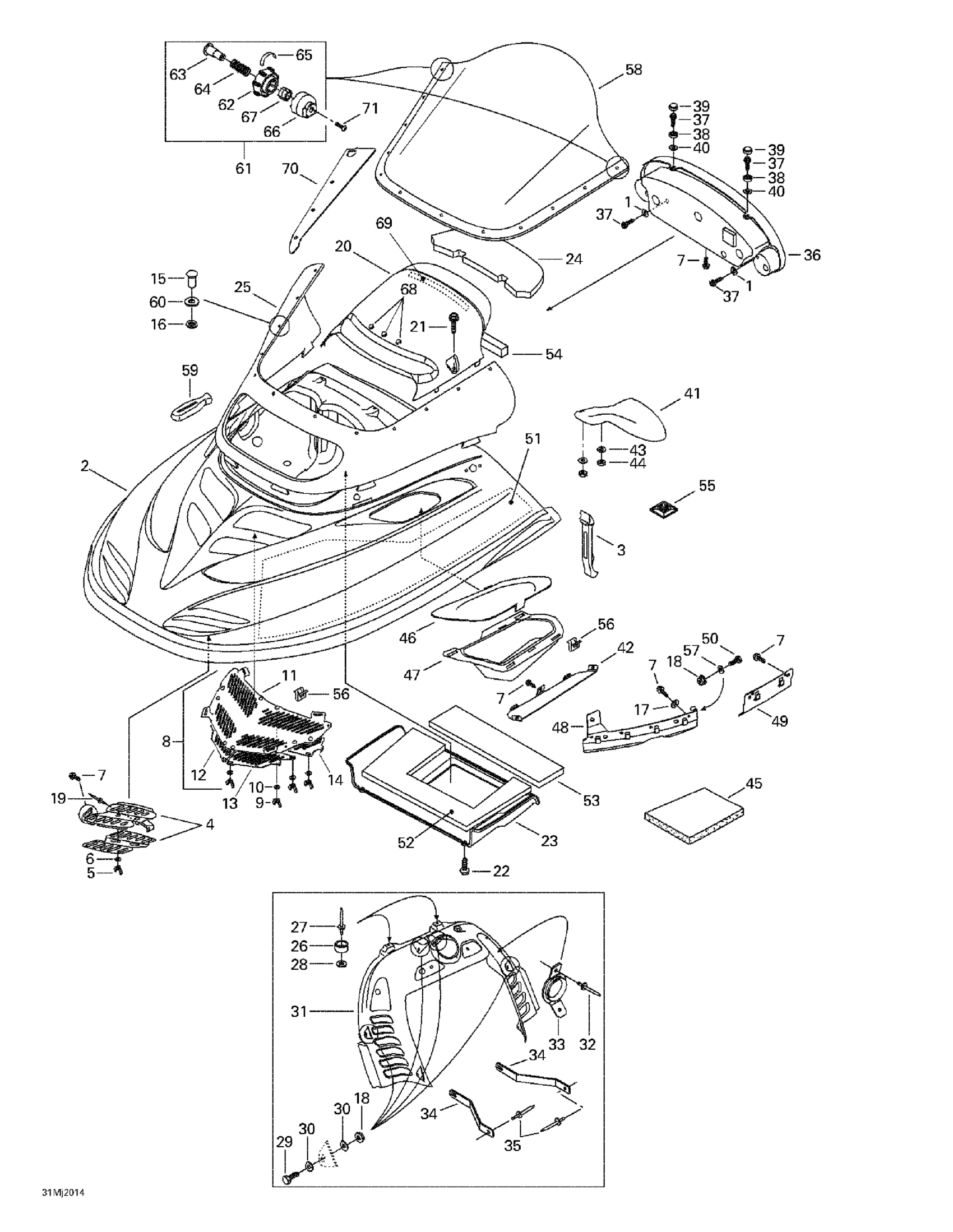

Ski-Doo Grand Touring 700, 2000 09- Cab, Console Diagram

#

Description
Price

1

Washer

517124300

$0.19

2

Hood | GT 700. GT SE Millennium Edition.

517302170

Unavailable

Hood | GT SE.

517302427

Unavailable

3

Hood Latch

517302152

$18.49

4

RH Front Grille Ass'y | Includes 3 - 5.

517302205

Unavailable

RH Front Grille Ass'y | GT SE Millennium Edition.

517302406

Unavailable

LH Front Grille Ass'y

517302208

Unavailable

LH Front Grille Ass'y | GT SE Millennium Edition.

517302407

Unavailable

5

Wing Nut M5

414070300

Unavailable

6

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

7

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

8

Center Grill Ass'y | Includes 8 - 14.

517302073

Unavailable

Center Grille Ass'y | GT SE Millennium Edition.

517302408

Unavailable

9

Wing Nut M5

414070300

Unavailable

10

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

11

Central Grille

517289100

Unavailable

Central Grille | GT SE Millennium Edition.

517302384

Unavailable

12

RH Front Sliding Grille

517289103

Unavailable

13

LH Front Sliding Grille

517289104

Unavailable

14

RH Rear Sliding Grille

517289105

Unavailable

LH Rear Sliding Grille

517289106

Unavailable

15

STUD - Call your local BRP dealership

572103500

Unavailable

STUD - Call your local BRP dealership | Mach Z (Tech Plus).

517302264

Unavailable

16

Push Nut

732610072

$2.19

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Hex. Flange Elastic Nut M5

233251414

$1.04

19

Pop Rivet 3/16"

390402400

$0.35

20

Air Intake Deflector

572107300

Unavailable

21

Tuflock Phillips Plastic Screw

414745900

$1.69

22

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

23

Plate

572087800

Unavailable

24

Filter Foam

415123100

Unavailable

25

Windshield Support

517302076

Unavailable

26

Rubber Stopper

415018100

$2.49

27

Pop Rivet 1/8" | SM5

390401600

$5.69

28

WASHER - Call your local BRP dealership

293150007

Unavailable

29

Hex. Screw M5 X 20

207152044

$0.90

30

Washer | DS 650 X

391301600

$0.48

31

Console

517302249

Unavailable

32

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

33

Rope Guide

517296800

Unavailable

34

Bracket

517296900

Unavailable

35

Pop Rivet 3/16”

390910000

$0.57

36

Dash

515175512

Unavailable

37

Screw K40 X 10

241140060

$1.48

38

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

39

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

40

Flat Washer 4 mm, Stainless

234042600

$1.15

41

RH Mirror Ass'y

517302067

Unavailable

LH Mirror Ass'y

517302068

Unavailable

42

Plate

517302414

Unavailable

43

Washer

517124300

$0.19

44

Elastic Stop Nut M4

232541414

$0.58

45

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

46

RH Grille

517302156

Unavailable

RH Grille | GT SE Millennium Edition.

517302390

Unavailable

LH Grille

517302167

Unavailable

LH Grille | GT SE Millennium Edition.

517302389

Unavailable

47

Inlet Duct

517302155

Unavailable

48

RH Hood Guide

517301200

Unavailable

LH Hood Guide

517301300

Unavailable

49

Hood Guide

517302108

Unavailable

50

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

51

LH Side Foam

517302184

Unavailable

RH Side Foam

415045100

Unavailable

52

Center Foam

415045300

Unavailable

53

Rear Foam

415045400

Unavailable

54

Deflector Foam

415045500

Unavailable

55

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

56

Edge Clip

517302785

$0.88

57

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

58

High Windshield | GT 700.

415082500

Unavailable

High Windshield

517302268

Unavailable

59

Windshield Latch

570023800

$4.49

60

Washer

517302265

Unavailable

61

RH Handle Ass'y | Includes 24 - 30. Mach Z (Tech Plus).

517302360

Unavailable

LH Handle Ass'y | Mach Z (Tech Plus).

517302361

Unavailable

62

Handle | Mach Z (Tech Plus).

517302260

Unavailable

63

Stopper | Mach Z (Tech Plus).

517302262

Unavailable

64

Spring | Mach Z (Tech Plus).

517302263

Unavailable

65

RH Decal | Mach Z (Tech Plus).

516000331

Unavailable

LH Decal | Mach Z (Tech Plus).

516000332

Unavailable

66

Guard | Mach Z (Tech Plus).

517302261

Unavailable

67

Gear | Mach Z (Tech Plus).

517302321

Unavailable

68

Spacer | GT SE. GT SE Millennium Edition.

517302323

Unavailable

69

VELCRO 1/2? - Call your local BRP dealership

415110900

Unavailable

70

RH Plate Ass'y | GT SE. GT SE Millennium Edition.

517302269

Unavailable

LH Plate Ass'y | GT SE. GT SE Millennium Edition.

517302270

Unavailable

71

PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership

250000031

Unavailable
