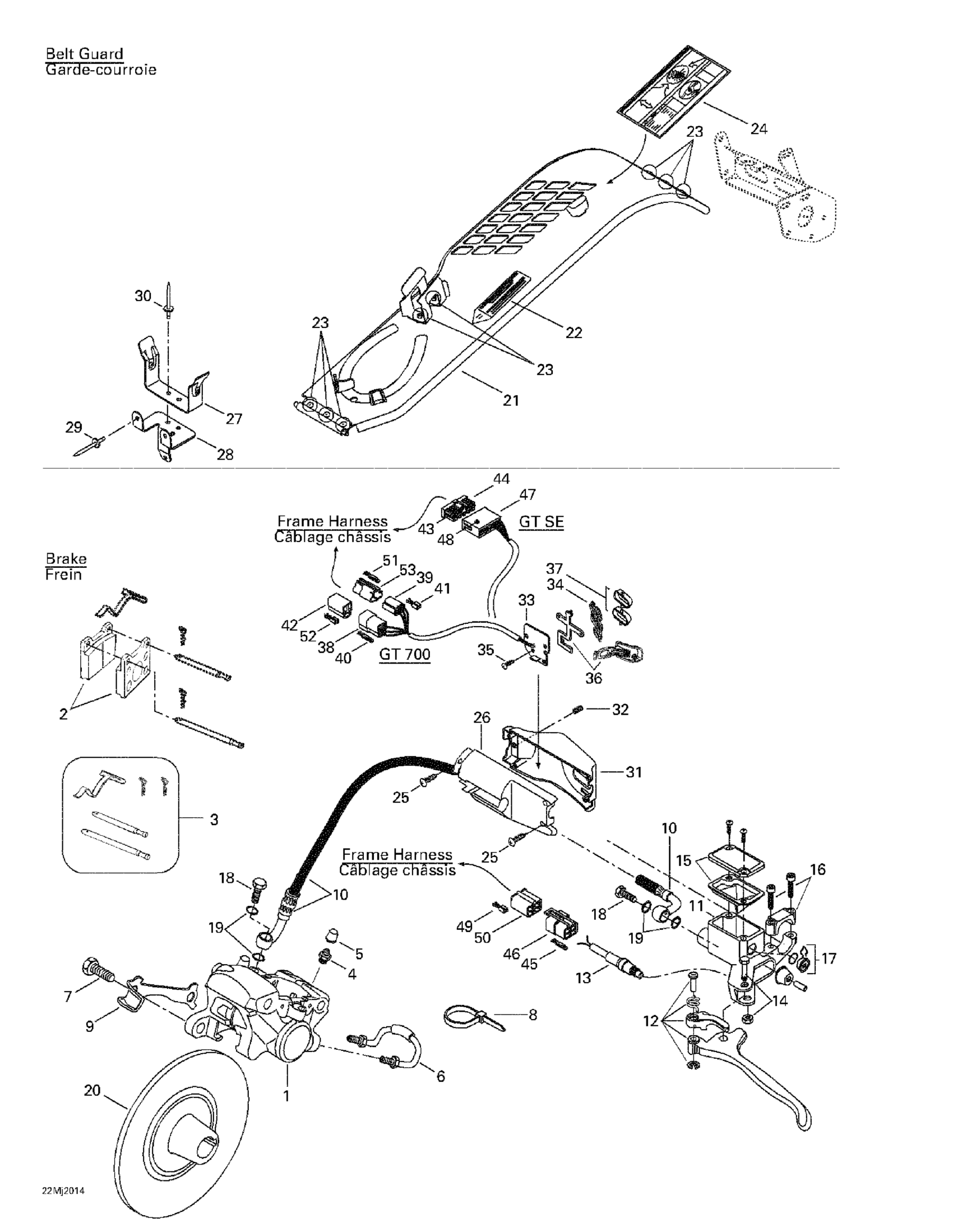

Ski-Doo Grand Touring 700, 2000 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

Tie-Rap 180 mm

414115200

$0.11

9

Locking Tab

507031900

Unavailable

10

Hose

507032220

Unavailable

Hose | Mach Z (Tech Plus).

507032272

Unavailable

11

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

12

LEVER - Call your local BRP dealership

507032428

Unavailable

13

Microswitch

507032366

$98.99

Microswitch

507032366

$98.99

14

Pin Ass'y

415030000

$19.99

15

Cap

415029900

$41.49

16

Clamp And Screw Kit

507032477

$23.99

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

21

Belt Guard Ass'y | Includes 4 - 7.

417300050

Unavailable

22

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

23

Pop Rivet 3/16"

390402200

$0.35

24

Adjustment Decal | GT 700.

418001717

Unavailable

Adjustment Decal | GT SE. GT SE Millennium Edition.

418001710

Unavailable

25

Screw

415047913

Unavailable

26

Rear Housing Ass'y

415047903

Unavailable

27

Belt Guard Bracket

518202100

$17.49

28

Pulley Guard Support

518317000

Unavailable

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Pop Rivet 3/16"

390402200

$0.35

31

Front Housing Ass'y | Includes 14 - 20.

515175503

Unavailable

31

Front Housing Ass'y | Includes 31 - 41. GT 700.

515175155

Unavailable

32

Socket Set Screw M8 X 10

414440800

$4.12

33

PCB Ass'y | GT 700.

515175388

Unavailable

Printed Circuit Ass'y

515175535

Unavailable

34

Silicon Pad

415047909

Unavailable

35

Screw M3

415047912

Unavailable

36

Lever Kit

415047918

Unavailable

37

Switch Kit

415047917

Unavailable

38

Male Terminal Housing (3 Circuits) | GT 700.

419204200

Unavailable

39

Female Terminal Housing (3 circuits)

409008500

Unavailable

40

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

41

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

42

Female Housing

409204300

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

46

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Male Terminal

515175232

$1.58

49

Female Terminal PACKARD

561503200

Unavailable

50

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

51

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

52

Female Terminal

561503100

$2.41

53

Male Terminal Housing (3 circuits)

409008600

Unavailable
