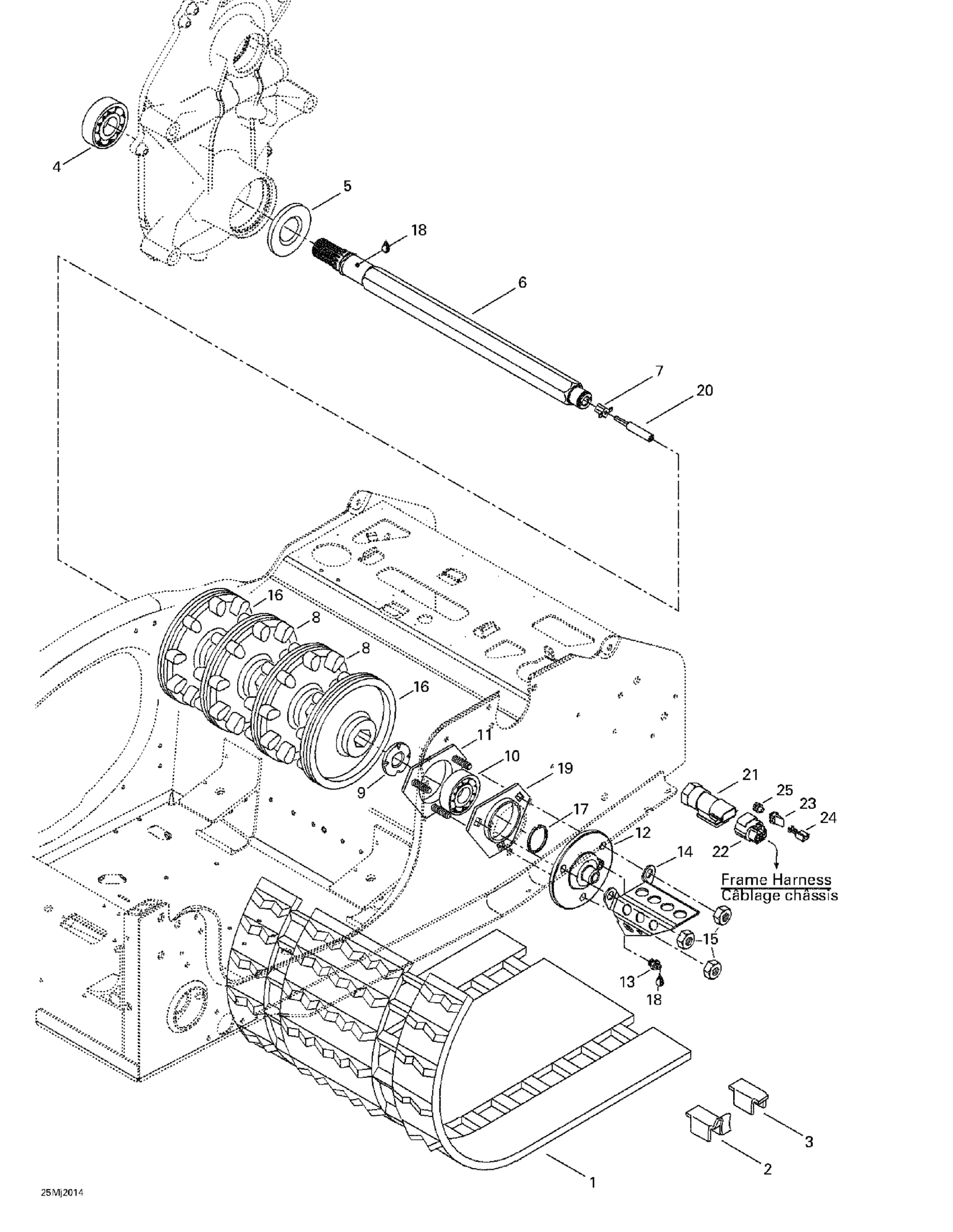

Ski-Doo Grand Touring 700, 2000 05- Drive Axle And Track Diagram

#

Description
Price

1

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

2

Track Guide | Track Width 16''

415129528

$3.29

3

Cleat

504152651

$9.69

4

Ball Bearing 6206 | Formula 500 LC.

405403900

Unavailable

5

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

6

Drive Axle

501026500

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

9 Tooth Sprocket

414663900

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350060

$38.49

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

Grease Fitting

408200700

$3.49

14

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

9 Tooth Half Sprocket

414990800

Unavailable

17

CIRCLIP - Call your local BRP dealership

371910200

$2.09

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

FLANGE - Call your local BRP dealership

501025000

Unavailable

20

Key

572098200

Unavailable

21

Speed Sensor

415049800

Unavailable

22

Connector (3 Circuits)

409004900

Unavailable

23

Female Terminal

409005300

Unavailable

24

FEMALE TERMINAL - Call your local BRP dealership

409004800

Unavailable

25

Wire Seal

409005400

Unavailable
