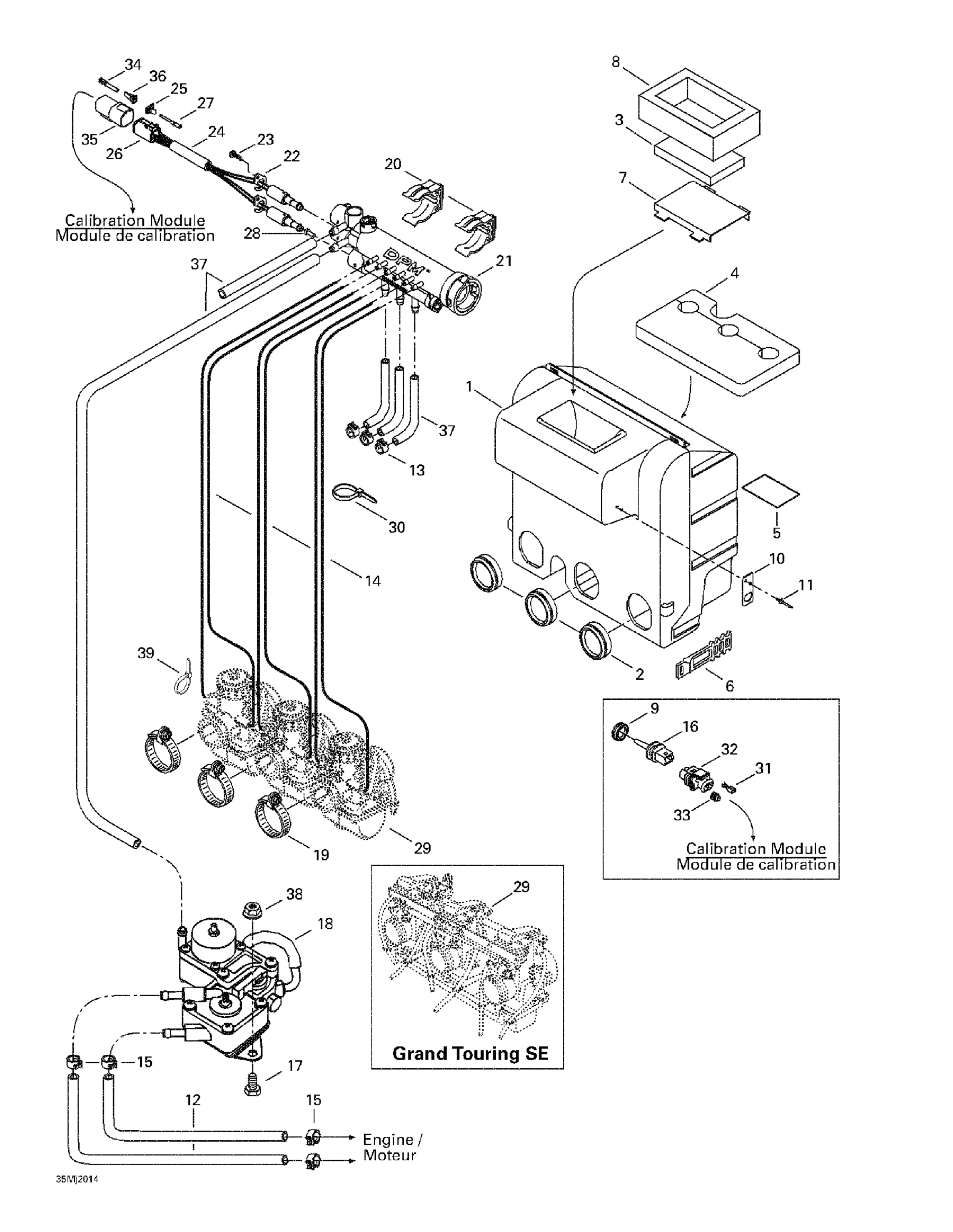

Ski-Doo Grand Touring 700, 2000 02- Air Intake System Diagram

#

Description
Price

1

Air Silencer Ass'y | Includes 1 - 11. GT 700.

508000111

Unavailable

Air Silencer Ass'y | GT SE. GT SE Millennium Edition.

508000114

Unavailable

2

Air Adaptor | Formula III 700 R.

570065900

Unavailable

Air Intake Adaptor

570069100

Unavailable

3

Air Filter

415081400

Unavailable

4

Inner Foam

415081200

Unavailable

5

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

6

LATCH - Call your local BRP dealership

570069700

Unavailable

7

Intake Grill

517294400

Unavailable

8

Lower Foam

415081300

Unavailable

9

GROMMET - Call your local BRP dealership

570065500

Unavailable

10

Support

512059211

Unavailable

11

RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership

293150034

Unavailable

12

Hose

219704549

$50.99

13

Spring Clamp

414554800

$0.88

14

Hose | GT 700.

404137800

Unavailable

HOSE - Call your local BRP dealership

404161888

Unavailable

15

Spring Clamp

414415200

$0.88

16

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

17

Hex. Screw M5 X 14

207151444

$0.87

18

Air Pump

512059197

Unavailable

19

Clamp

420951510

Unavailable

20

SUPPORT - Call your local BRP dealership

512058919

Unavailable

21

Pressure Manifold Ass'y | Includes 21 - 28.

512059160

Unavailable

22

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

23

Screw K40 X 10

241140060

$1.48

24

Collector Harness | Includes 24 - 27.

515175219

Unavailable

25

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

26

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

27

Female Terminal

278000632

$2.09

28

STARTER JET - Call your local BRP dealership

404161825

Unavailable

29

Carburetor VM 38-436 (PTO/MAG) | GT 700.

403138612

Unavailable

Carburetor VM 38-441 (CTR) | GT 700.

403138635

Unavailable

Carburetor Kit TM38-C317

403138633

Unavailable

30

Tie Wrap 142 mm

293750002

$1.25

31

Female Terminal

278000998

$4.39

32

Male Housing, 2 Circuits

278001005

$19.49

33

Wire Seal

278000999

$3.19

34

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

35

Male Terminal Housing, 6 Circuits

409015200

Unavailable

36

Male Lock, 6 Circuits

409014600

Unavailable

37

Polyurethane Hose 10000Mm Long

219704410

$56.99

38

Hex. Flange Elastic Nut M5

233251414

$1.04

39

Tie Wrap 94 mm | 4X4

293750001

$1.03
