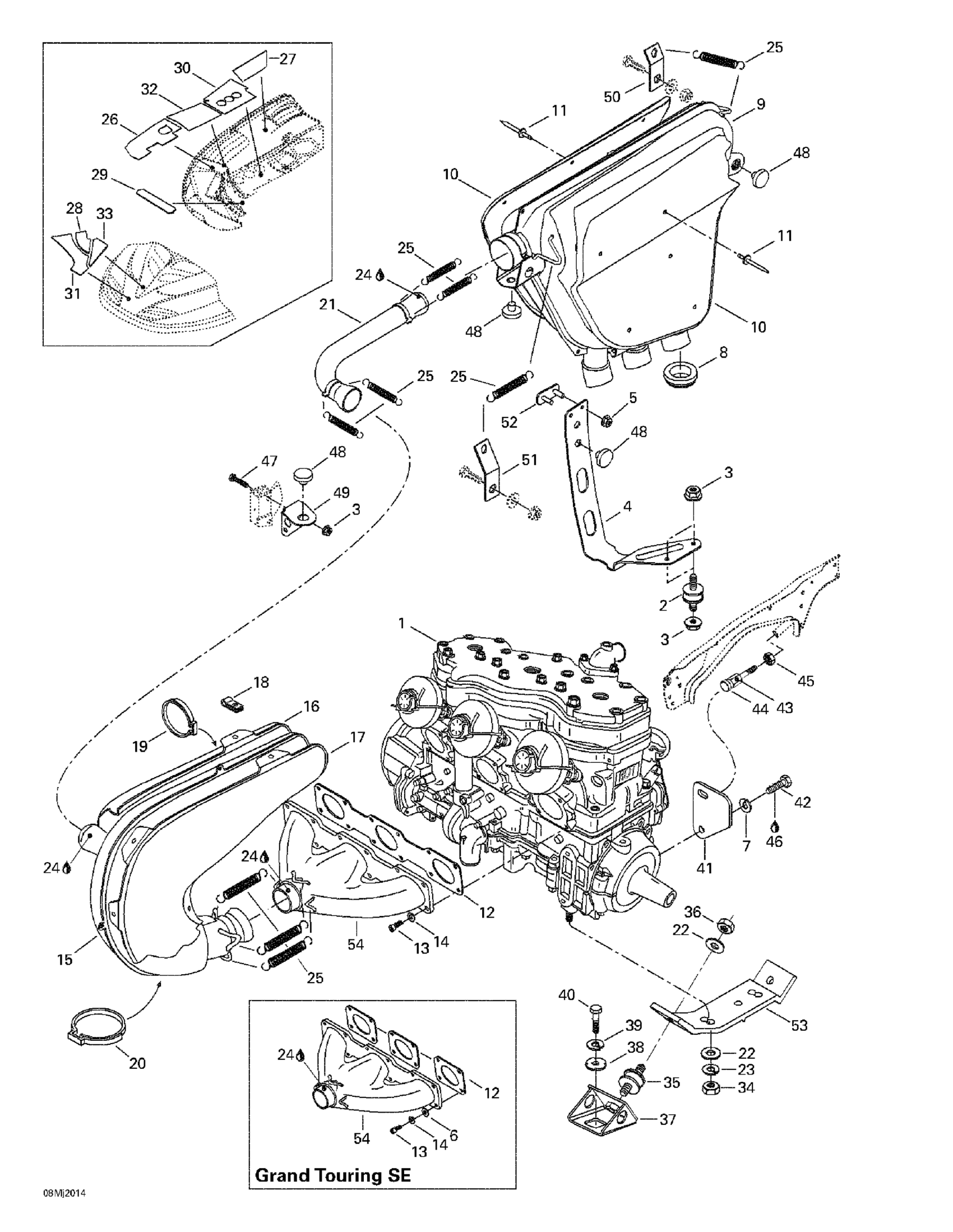

Ski-Doo Grand Touring 700, 2000 01- Engine Support And Muffler Diagram

#

Description
Price

1

Engine <<699>> | GT 700.

400604017

Unavailable

Engine <<809>> | GT SE. GT SE Millennium Edition.

400800305

Unavailable

2

Rubber Mount | Formula DLX 500 F.

514052838

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Support

514052887

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Flat Washer 6 mm

234061410

$1.36

7

Lock Washer 8 mm

234181401

$0.92

8

Exhaust Grommet

570066200

Unavailable

9

Muffler Ass'y | Includes 8 - 11.

514053052

Unavailable

10

RH Heat Shield

514052900

Unavailable

LH Heat Shield

514047200

Unavailable

11

Pop Rivet 3/16”

390910000

$0.57

12

GASKET - Call your local BRP dealership | Formula III 700 R.

420931740

Unavailable

Gasket

420850552

$8.85

13

Socket Head Screw M6 X 25

205062544

$1.15

14

Lock Washer M6, Black

234161471

$0.53

15

Tuned Pipe Ass'y | Includes 18 - 25.

514053070

Unavailable

16

Lower Shell

514097806

Unavailable

17

Upper Shell

514097807

Unavailable

18

Cleat

514046503

Unavailable

19

Norma Gear Clamp | Grand Touring 500.

514052962

Unavailable

20

Norma Gear Clamp | Grand Touring 600.

514052902

Unavailable

21

Tail Pipe

514052801

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

24

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

25

Spring

415107100

$6.35

26

Reflective Sheet

514098000

Unavailable

27

RH Reflective Sheet

415083800

Unavailable

28

RH Reflective Sheet

415114800

Unavailable

LH Reflective Sheet

415114900

Unavailable

29

Reflective Sheet

415111900

Unavailable

30

Reflective Sheet

415115000

Unavailable

31

RH Reflective Sheet

415112300

Unavailable

LH Reflective Sheet

415112400

Unavailable

32

Reflective Sheet

415084000

Unavailable

33

RH Reflective Sheet

415112500

Unavailable

LH Reflective Sheet

415112600

Unavailable

34

Hex. Nut M10 X 1.5

232006414

$1.37

35

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

36

Elastic Locking Nut M10 X 1.5

233601416

$1.69

37

Engine Support

512050900

Unavailable

38

Lock Washer

512056700

$3.17

39

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

40

Hex. Screw M10 X 25

207102544

$1.37

41

STOPPER PLATE - Call your local BRP dealership

512056000

Unavailable

42

Hex. Screw M8 x 16

207181644

$1.15

43

Stopper Screw

512056900

Unavailable

44

STOPPER - Call your local BRP dealership

512059055

Unavailable

45

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

46

Loctite 271, 10 ml

293800005

$26.99

47

Hex. Screw M8 X 50

207085044

$1.48

48

Rubber Bumper

514053654

$50.99

49

Pipe Su Deg.pport

514049900

Unavailable

50

Spring Bracket

514051000

Unavailable

51

Spring Bracket

514052968

Unavailable

52

Bracket

517294300

Unavailable

53

Engine Support | Formula III 700 R.

512059088

Unavailable

Engine Support (MAG Side)

512059089

Unavailable

Engine Support (PTO Side)

512059090

Unavailable

54

Exhaust Socket | Formula III 700 R.

420979610

Unavailable

Exhaust Socket

420979970

Unavailable
