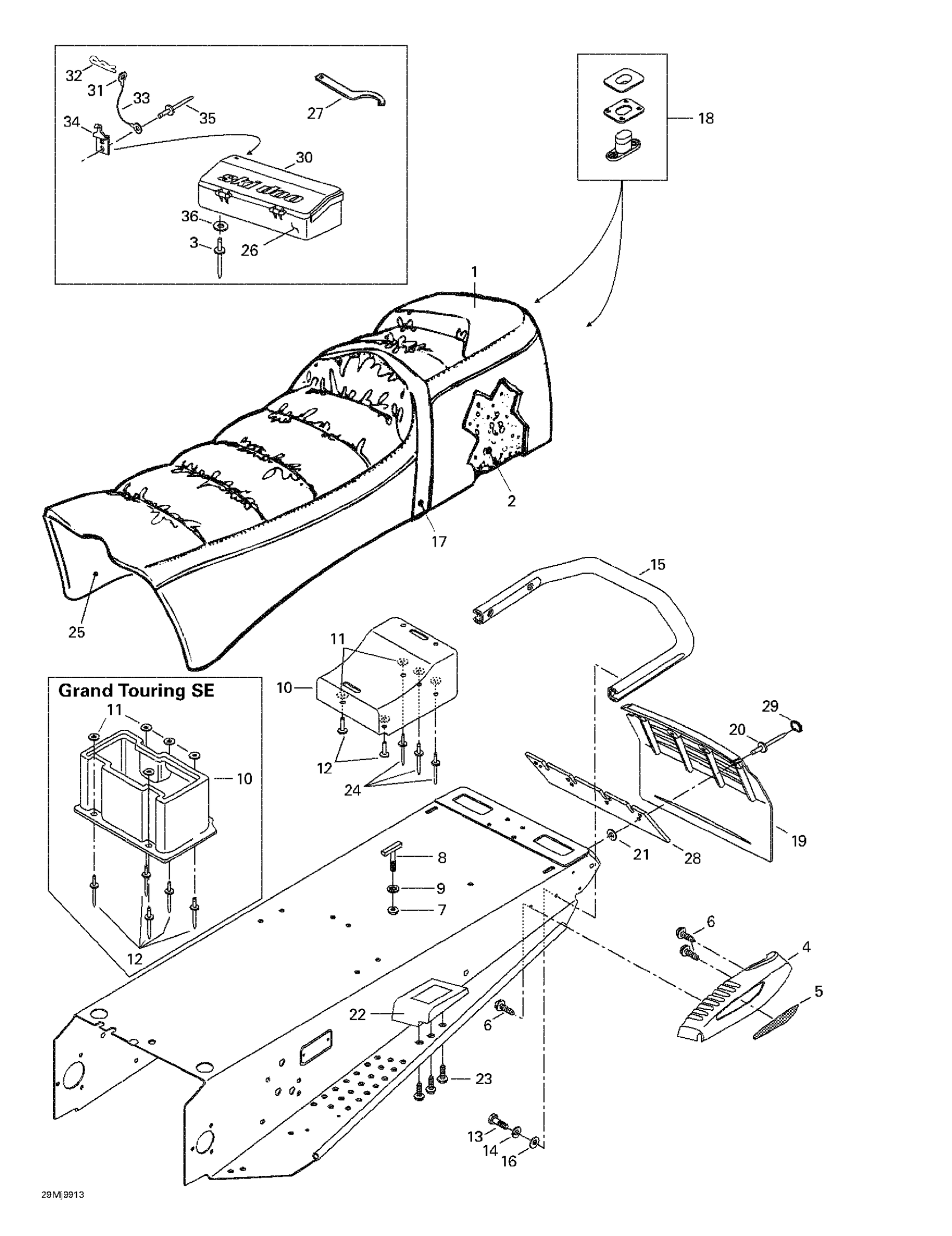

Ski-Doo Grand Touring 700, 1999 09- Seat And Accessories Diagram

#

Description
Price

1

Seat Cover | Grand Touring 700.

510003564

Unavailable

Seat Cover | Grand Touring SE.

510003559

Unavailable

2

Seat Foam | GT 700.

510003588

Unavailable

Seat Foam

510003591

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

RH Moulding

572103900

Unavailable

LH Moulding

572104000

Unavailable

5

RH Reflector, Red

516000237

Unavailable

LH Reflector, Red

516000238

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

6

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

«T» Bolt

732601221

Unavailable

9

Push Nut

732610072

$2.19

10

Rear Trunk | GT 700.

572051200

Unavailable

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

11

Flat Washer M5

234051410

$0.53

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

13

Hex. Screw M8 X 20

207182044

$0.74

14

Lock Washer 8 mm

234181401

$0.92

15

Rear Bumper | Includes 32 to 33

517272510

Unavailable

16

Flat Washer 8 mm

234081410

$0.83

17

Seat Belt

415095600

Unavailable

18

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

19

Snow Guard | Grand Touring 700.

520000072

Unavailable

Snow Guard (Europe) | Grand Touring 700.

520000074

Unavailable

Snow Guard (Europe) | Grand Touring 700.

520000074

Unavailable

20

Pop Rivet 3/16"

293150100

$1.09

21

Flat Washer

517225900

$0.18

22

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

23

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

24

Pop Rivet 3/16"

390906800

$0.93

25

Sub-Seat | GT 700.

510003587

Unavailable

Sub-Seat

510003589

Unavailable

26

Tool Kit (Not Shown) | Includes 44 - 55.

529035592

Unavailable

27

Adjustment Wrench

529000035

$2.09

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

28

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

29

Cap

415073300

Unavailable

30

Tool Box Ass'y | Includes 35 - 40.

520000107

Unavailable

31

Terminal Ring

561502800

Unavailable

32

HAIR PIN - Call your local BRP dealership

414112400

Unavailable

33

Wire

414407400

Unavailable

34

Latch

517168500

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Washer

517124300

$0.19
