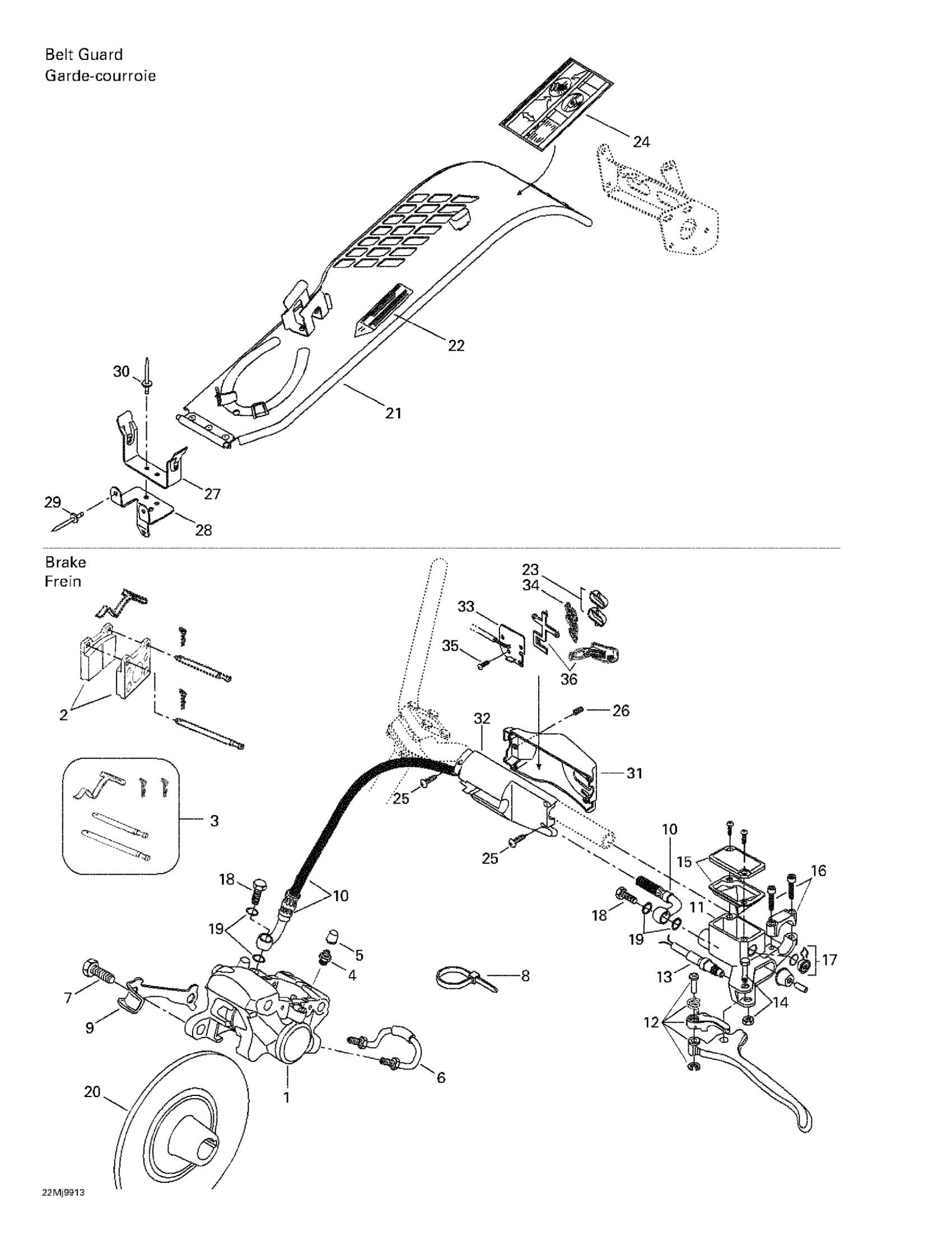

Ski-Doo Grand Touring 700, 1999 06- Hydraulic Brake And Belt Guard Diagram

Caliper | Includes 10 - 15.

414920000

Unavailable

Brake Pad Kit

415084600

$79.49

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Tie-Rap 180 mm

414115200

$0.11

Locking Tab

507031900

Unavailable

Hose

507032220

Unavailable

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

LEVER - Call your local BRP dealership

507032428

Unavailable

Microswitch

507032366

$98.99

Pin Ass'y

415030000

$19.99

Cap

415029900

$41.49

Clamp And Screw Kit

507032477

$23.99

WINDOW - Call your local BRP dealership

414990600

Unavailable

Banjo Bolt

414920500

$8.68

Washer

414920600

$1.90

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

Belt Guard Ass'y | Includes 4 - 7.

417300050

Unavailable

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

Switch Kit

415047917

Unavailable

Adjustment Decal | GT 700.

418001717

Unavailable

Adjustment Decal | GT SE. GT SE Millennium Edition.

418001710

Unavailable

Screw

415047913

Unavailable

Socket Set Screw M8 X 10

414440800

$4.12

Belt Guard Bracket

518202100

$17.49

Pulley Guard Support

518317000

Unavailable

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Pop Rivet 3/16"

390402200

$0.35

Front Housing Ass'y | Includes 31 - 41. GT 700.

515175155

Unavailable

Rear Housing Ass'y

415047903

Unavailable

PCB Ass'y | GT 700.

515175388

Unavailable

Silicon Pad

415047909

Unavailable

Screw M3

415047912

Unavailable

Lever Kit

415047918

Unavailable
