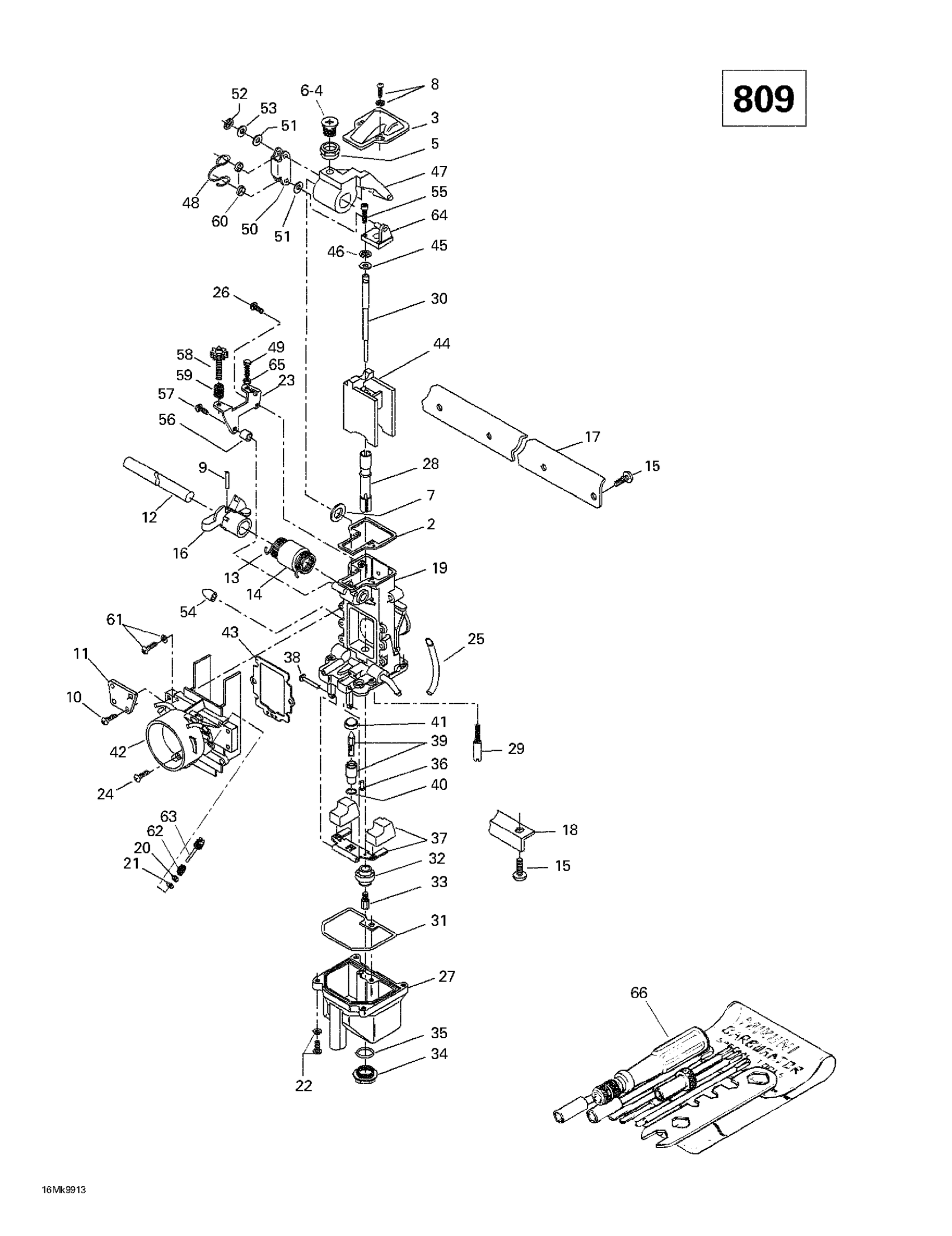

Ski-Doo Grand Touring 700, 1999 02- Carburetors (809) Diagram

#

Description
Price

1

Carburetors Ass'y TM38-C232 | Includes 1 - 65. Grand Touring SE.

403138556

Unavailable

2

Gasket

404143600

Unavailable

3

Cover

404142700

Unavailable

4

Screw (PTO/Center)

404139000

Unavailable

5

Ring (PTO/Center)

404143500

Unavailable

6

Screw (MAG)

404138900

Unavailable

7

Packing (MAG)

404144400

Unavailable

8

Screw

404139100

Unavailable

9

Pin

404140100

Unavailable

10

Screw

404136100

$6.38

11

Plate

404142400

Unavailable

12

Throttle Shaft

404137100

Unavailable

13

Spring

404143200

Unavailable

14

Ring

404141700

Unavailable

15

Screw

404138800

$6.06

16

Lever Ass'y

404142100

Unavailable

17

Plate

404142300

Unavailable

18

Plate

404142500

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

20

Washer

404140900

Unavailable

21

O-RING - Call your local BRP dealership

404139900

Unavailable

22

Screw

404138700

$4.14

23

Bracket (MAG)

404142600

Unavailable

24

Plug Screw

404131700

Unavailable

25

Hose | Grand Touring SE.

404109800

Unavailable

26

Screw (MAG)

404135900

Unavailable

27

Float Body Ass'y | Grand Touring SE.

404161843

Unavailable

28

Needle Jet

404161830

Unavailable

29

Pilot Jet 50

404144800

Unavailable

30

Needle J8-8ADY01-41

404161829

Unavailable

31

O'Ring

404137000

Unavailable

32

Ring

404142900

Unavailable

33

Main Jet MJ 280

404100500

$9.06

Main Jet 290 This part replaces 404162139.

404101100

$11.13

Main Jet MJ 270 | Formula III 700 R.

404100400

$5.21

34

Drain Plug Screw

404107400

$22.99

35

O-Ring

404107300

$9.06

36

Screw

404141000

Unavailable

37

Float

404149800

Unavailable

38

Lever Pin

404103300

$6.27

39

NEEDLE SEAT 1.5 - Call your local BRP dealership

404149500

Unavailable

40

O-RING - Call your local BRP dealership

270500127

Unavailable

41

Filter

404141200

Unavailable

42

Funnel (MAG) | Grand Touring SE.

404156000

Unavailable

Funnel (CTR) | Grand Touring SE.

404156100

Unavailable

Funnel (PTO) | Grand Touring SE.

404156200

Unavailable

43

Gasket

404143700

Unavailable

44

Piston Valve 2.0

404152900

Unavailable

45

Packing

404137600

$6.38

46

Circlip

404113300

Unavailable

47

Throttle Lever (PTO/Center)

404143000

Unavailable

Throttle Lever (MAG)

404143100

Unavailable

48

Clip

404144100

Unavailable

49

Bolt (MAG)

404138000

Unavailable

50

Plate

404144000

Unavailable

51

Packing

404138100

Unavailable

52

E-Ring

404138300

$11.18

53

Washer

404139500

Unavailable

54

CAP - Call your local BRP dealership

404154900

Unavailable

55

BOLT - Call your local BRP dealership | Formula III 800.

404137400

Unavailable

56

Ring (MAG)

404141800

Unavailable

57

Screw

404138800

$6.06

58

Adjustment Screw

404137500

$19.49

59

Spring (MAG)

404138200

Unavailable

60

Ring

404144200

Unavailable

61

Screw

404145100

Unavailable

62

SPRING - Call your local BRP dealership

404139800

Unavailable

63

Adjuster Screw

404154200

Unavailable

64

Plate Ass'y

404142000

Unavailable

65

Nut (MAG)

404139600

Unavailable

66

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

67

High Altitude Kit (Not Shown) | Grand Touring SE.

861768000

Unavailable
