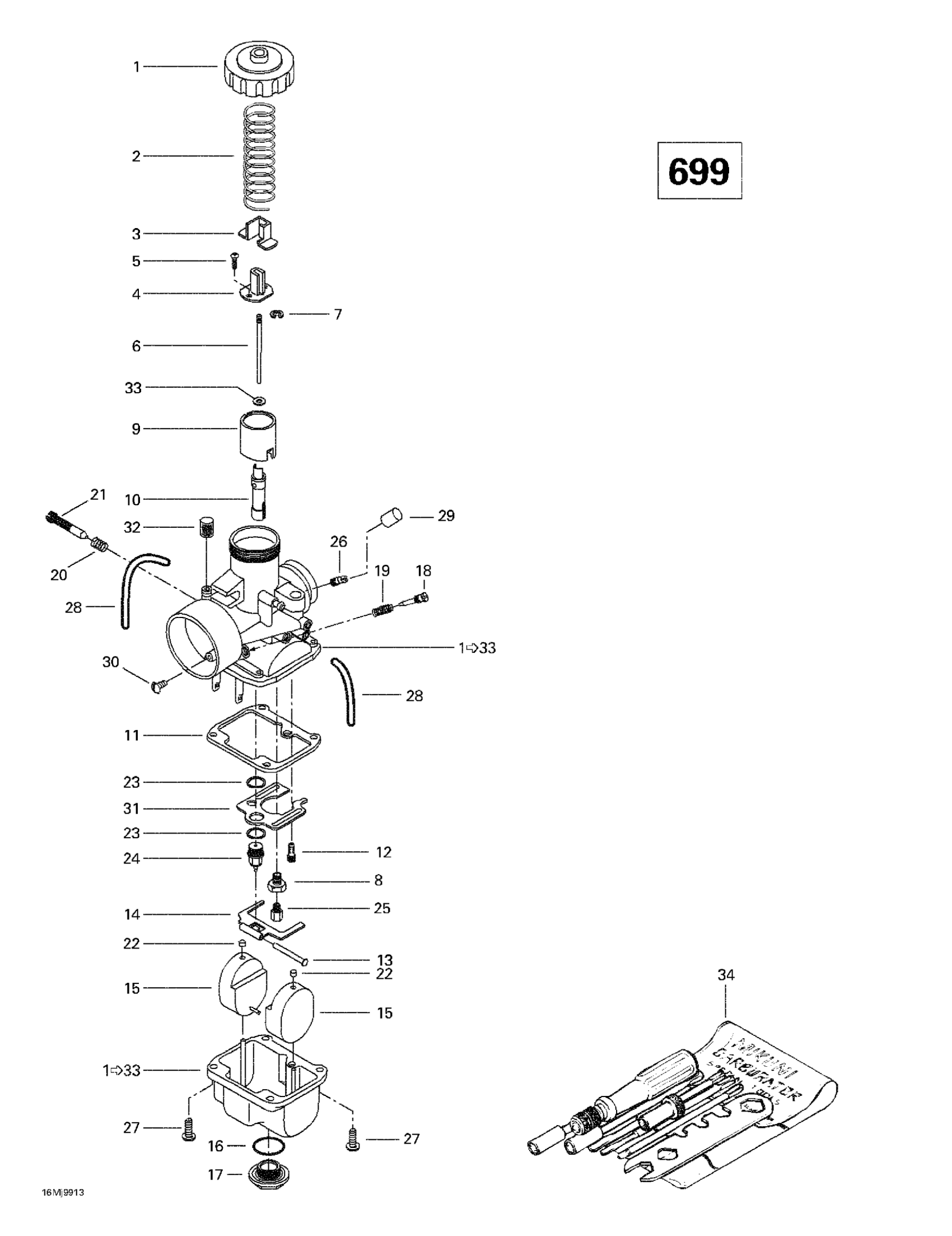

Ski-Doo Grand Touring 700, 1999 02- Carburetors (699) Diagram

#

Description
Price

1

VM 38-422 Carburetor | Includes 1 - 33. Grand Touring 700.

403138547

Unavailable

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

Needle J8-6DEH5 | Formula III 700.

404161800

Unavailable

7

E-Ring

404152400

$7.27

8

Guide Screw

404105500

$31.99

9

Piston Valve CA 2.5

404131300

Unavailable

10

Needle Jet | Formula III 700.

404159000

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

13

Lever Pin

404103300

$6.27

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Cap

404105800

$6.38

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

Main Jet 290 This part replaces 404162139.

404101100

$11.13

26

Nipple

404153400

$12.16

27

Screw With Lock Washer

404102000

$3.18

28

Hose | GT 700.

404137800

Unavailable

29

CAP - Call your local BRP dealership

404154900

Unavailable

30

Plug Screw

404131700

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Filter | Formula Deluxe 380.

404158900

Unavailable

33

Packing

404117000

$3.29

34

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

35

Hight Altitude Kit, (Not Shown) | Grand Touring 700.

861768100

Unavailable
