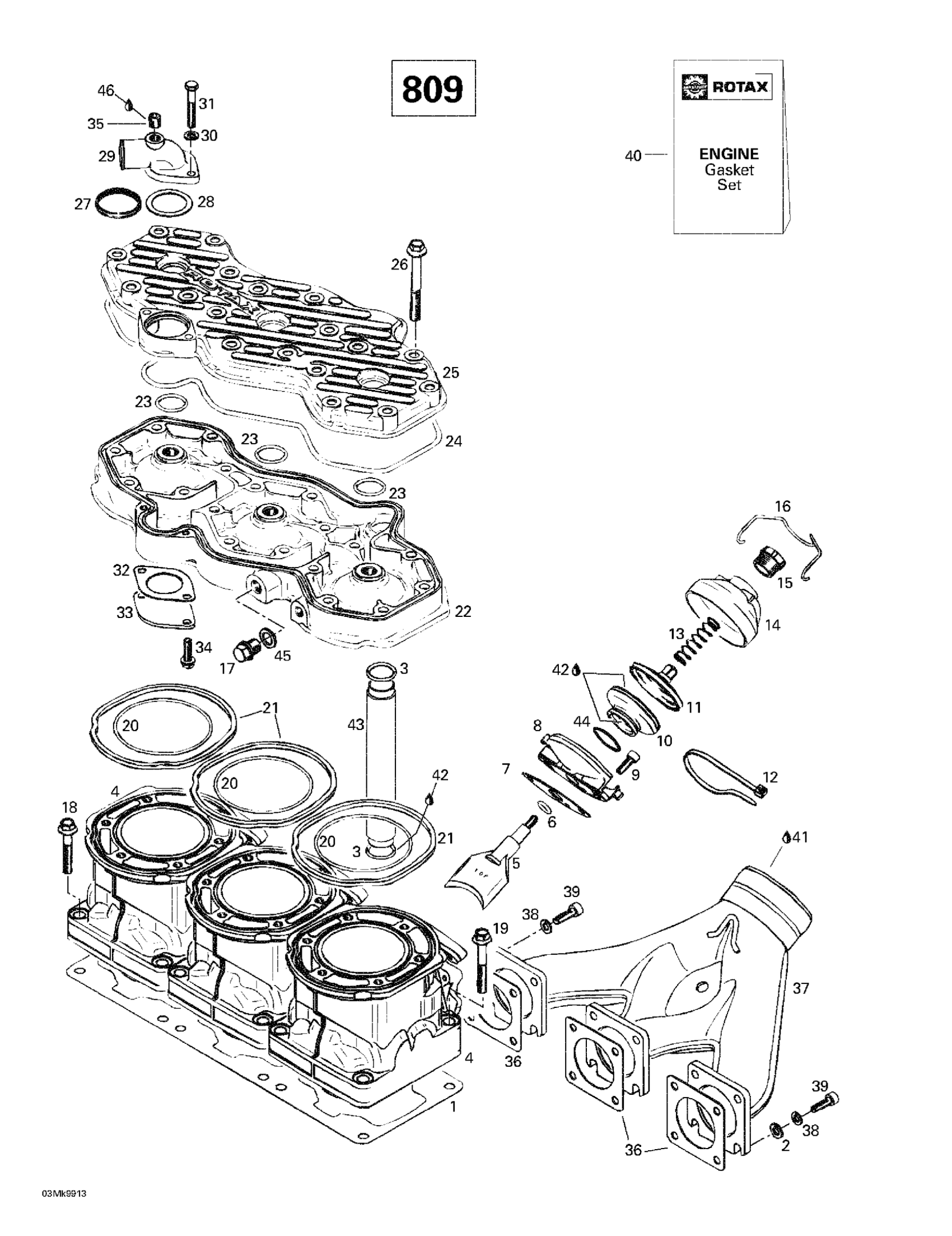

Ski-Doo Grand Touring 700, 1999 01- Cylinder, Exhaust Manifold (809) Diagram

#

Description
Price

1

GASKET 0.6 MM - Call your local BRP dealership

420931622

Unavailable

GASKET 0.4 MM - Call your local BRP dealership

420931621

Unavailable

GASKET 0.3 MM - Call your local BRP dealership

420931620

Unavailable

2

Flat Washer 6 mm

234061410

$1.36

3

O-Ring

420430373

$3.17

4

Cylinder (Nicasil Coated)

420923480

Unavailable

5

Exhaust Valve

420854303

Unavailable

6

O-Ring

420430110

$4.44

7

Gasket

420250239

$7.37

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

$2.22

10

Exhaust Bellows

420260723

$42.49

11

Exhaust Valve This part replaces 290253257.

420854449

$35.99

12

Clamp 77 mm | Formula Deluxe 583.

420251920

Unavailable

13

Spring

420239945

Unavailable

14

Valve Cover

420911552

$38.99

15

Adjuster Screw

420241221

$14.22

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

Plug screw

420841924

$14.28

18

Hex. Collar Screw M8 x 45

420640432

$8.57

19

Collar Hex. Screw M8 x 53.5

420640441

Unavailable

20

O-Ring | Grand Touring 500.

420831792

$15.89

21

SEAL RING - Call your local BRP dealership

420931320

Unavailable

22

Cylinder Head (Charcoal) | Formula III 800.

420913637

Unavailable

23

O-Ring

420430782

$5.39

24

O-RING - Call your local BRP dealership

420950310

Unavailable

25

Cylinder Head Cover (Charcoal) | Formula III 800.

420923492

Unavailable

26

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

RETAINING DISK - Call your local BRP dealership

420927745

Unavailable

29

Exhaust Socket

420922485

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Screw M6 X 40

207064044

$1.48

32

Gasket

420850338

$11.60

33

COVER - Call your local BRP dealership

420926260

$26.99

34

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

35

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

36

Gasket

420850552

$8.85

37

Exhaust Socket

420979970

Unavailable

38

Lock Washer M6, Black

234161471

$0.53

39

Socket Head Screw M6 X 25

205062544

$1.15

40

Gasket Set | Formula III 800.

420886249

Unavailable

41

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

42

Dow Corning 111, 150 g

413707000

$59.99

43

Water Tube

420922450

Unavailable

44

Hose Spring This part replaces 420838253.

420838255

$7.41

45

Aluminum Sealing Ring

420250016

$5.39

46

Loctite 243, 10 ml

293800060

$21.49
