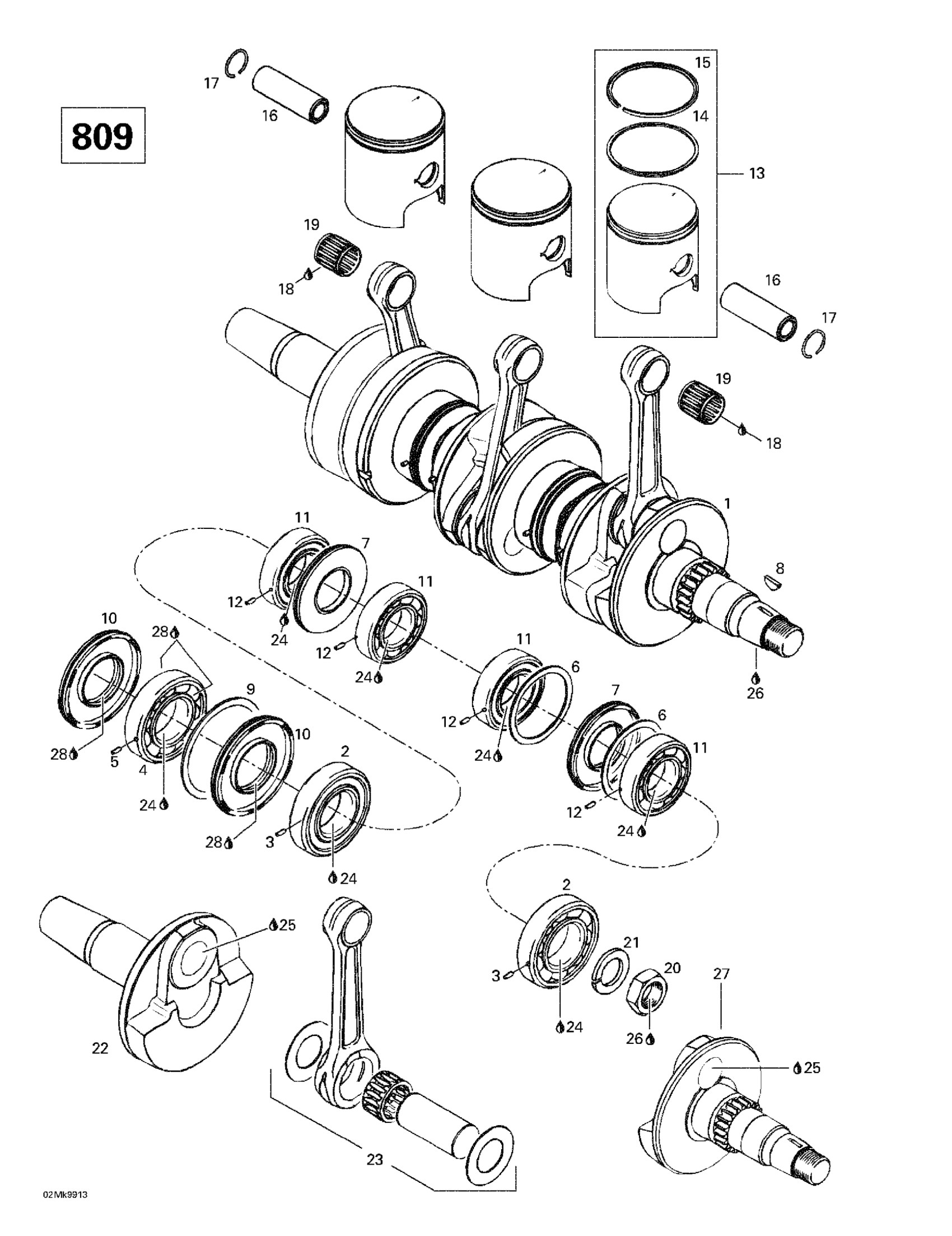

Ski-Doo Grand Touring 700, 1999 01- Crankshaft And Pistons (809) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 12. Formula III 800.

420887668

Unavailable

2

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

4

Ball Bearing Ass'y | Includes 4 - 5.

420832580

Unavailable

6

Retaining Disk

420927710

$7.41

7

Oil Seal This part replaces 290831952.

420831952

$18.01

8

Woodruff Key

420246015

$3.17

9

Washer

420926190

$11.63

10

Oil Seal

420931280

$51.49

11

Ball Bearing

420832573

$44.49

13

Piston Ass'y | Includes 13 - 15. Formula III 800.

420887641

Unavailable

14

Rectangular Ring 70.5 mm

420915988

Unavailable

15

Semi-Tapez Ring 70.5 mm | Formula III 800.

420815048

Unavailable

16

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

17

Piston Circlip

420945735

$4.46

18

Dow Corning 111, 150 g

413707000

$59.99

19

Needle Bearing

420832320

$30.49

20

Hex. Nut, M22 X 1.5

420842239

$17.53

21

Lock Washer, 22 mm

420945759

$1.90

22

Crankshaft (PTO Side)

420818572

Unavailable

23

ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership

420887663

Unavailable

Rod Repair Kit (MAG/Center Side)

420887664

Unavailable

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

Loctite 243, 10 ml

293800060

$21.49

27

Crankshaft (MAG Side)

420818583

Unavailable

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
