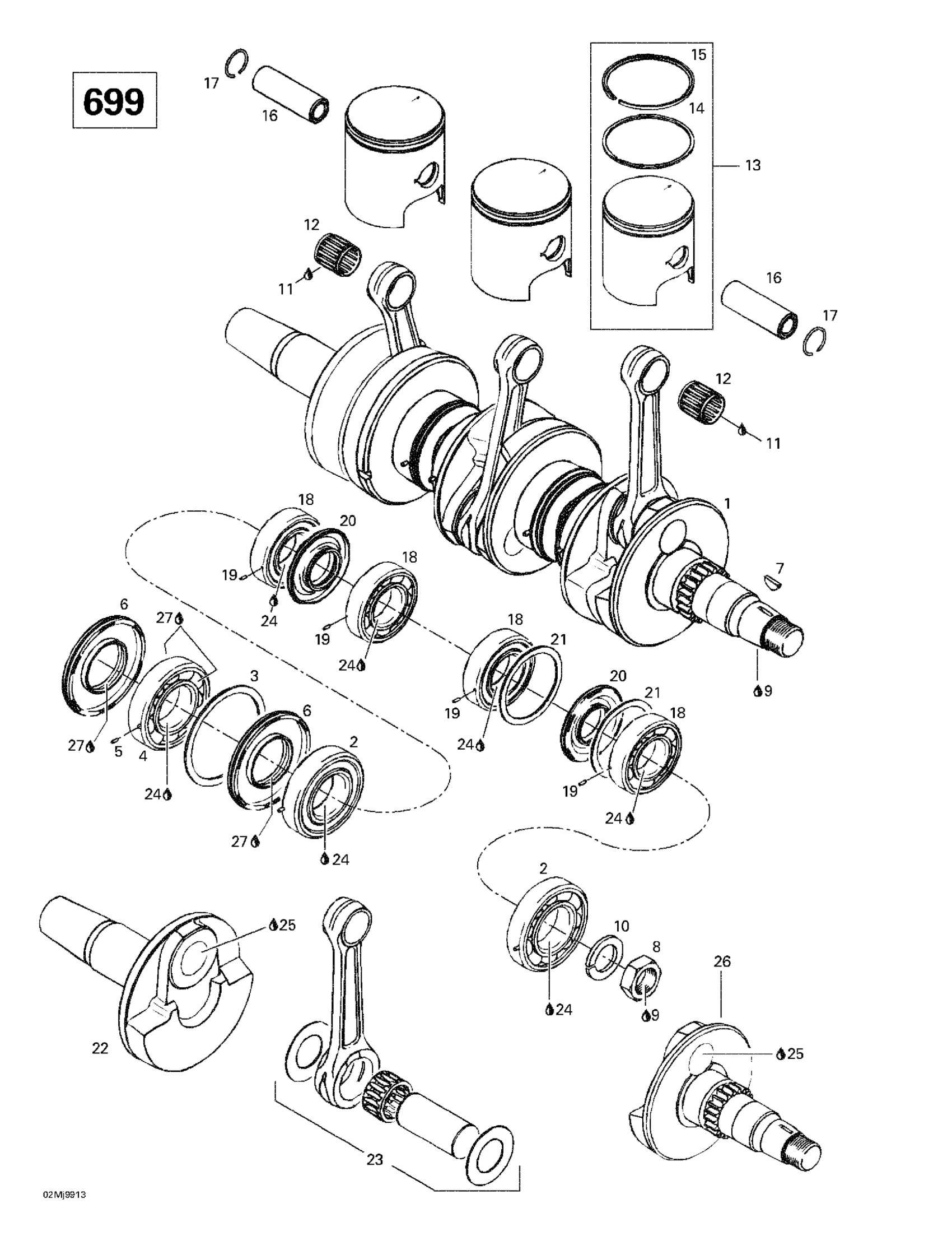

Ski-Doo Grand Touring 700, 1999 01- Crankshaft And Pistons (699) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 7. Formula III 700 R.

420888034

Unavailable

2

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

3

Washer

420926190

$11.63

4

Ball Bearing Ass'y | Includes 4 - 5.

420832580

Unavailable

6

Oil Seal

420931280

$51.49

7

Woodruff Key

420246015

$3.17

8

Hex. Nut, M22 X 1.5

420842239

$17.53

9

Loctite 243, 10 ml

293800060

$21.49

10

Lock Washer, 22 mm

420945759

$1.90

11

Dow Corning 111, 150 g

413707000

$59.99

12

Needle Bearing

420832439

Unavailable

13

Piston Ass'y | Includes 13 - 15. Formula III 700 R.

420887521

Unavailable

14

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

15

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

16

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

17

Piston Circlip

420945735

$4.46

18

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

19

Dowel Pin

420929972

Unavailable

20

Oil Seal

420831990

$20.49

21

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

22

Crankshaft P.T.O.-Side | Formula III 700 R.

420818617

Unavailable

23

ROD REPAIR KIT P.T.O.-SIDE - Call your local BRP dealership | Formula III 700 R.

420887603

Unavailable

Rod Repair Kit Mag, Side/Center | Formula III 700 R.

420887604

Unavailable

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

Crankshaft MAG.-Side | Formula III 700 R.

420818626

Unavailable

27

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
