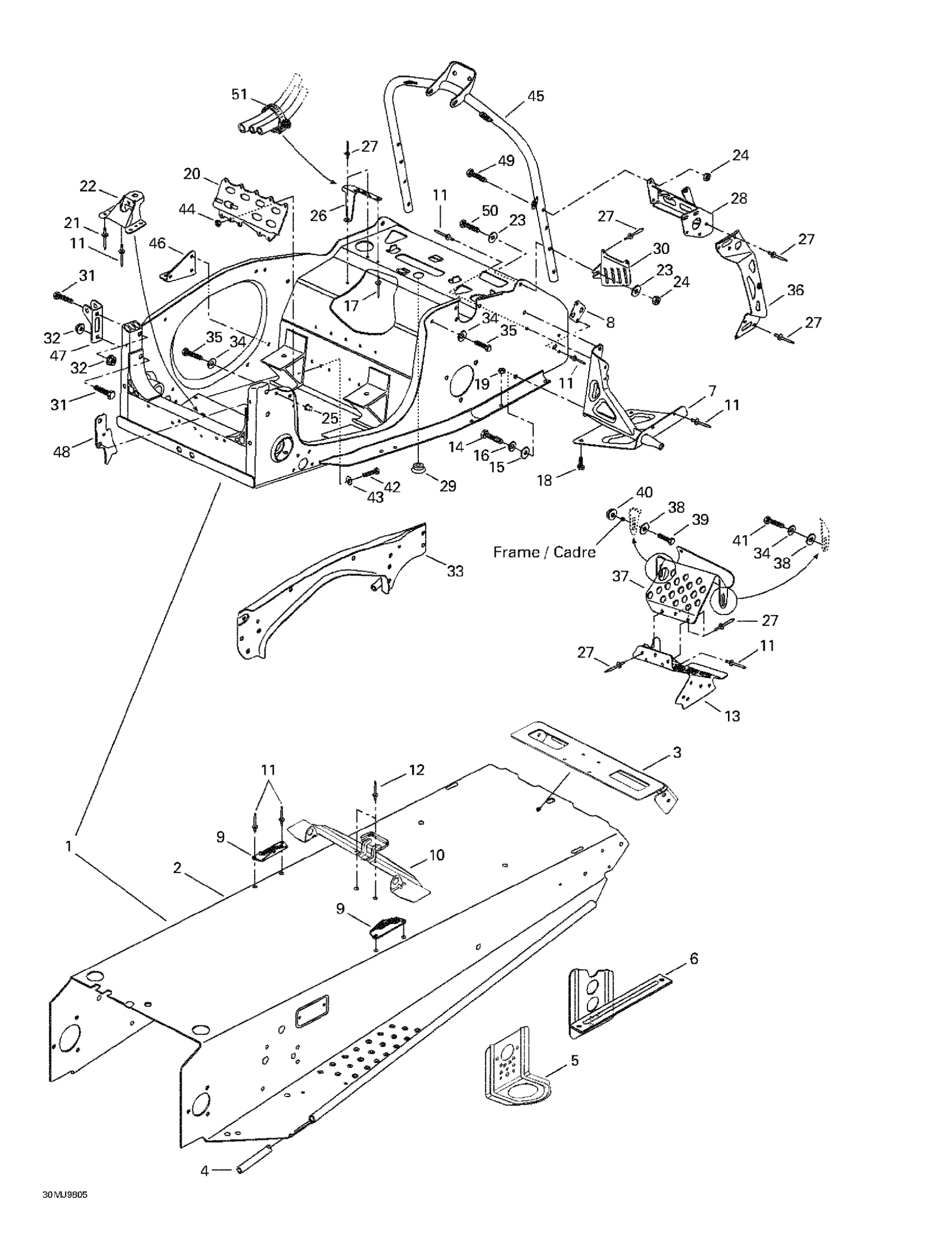

Ski-Doo Grand Touring 700, 1998 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 22.

518317244

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Cap-End | Formula III 600 LT.

518317551

Unavailable

4

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

5

Front Bracket

518312910

Unavailable

6

RH Rear Bracket

518318927

Unavailable

LH Rear Bracket

518318928

Unavailable

7

RH Support

518317564

Unavailable

LH Support

518317565

Unavailable

8

Reinforcement

518317533

Unavailable

9

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

10

Seat Bracket

518317560

Unavailable

11

Pop Rivet 3/16"

390402200

$0.35

12

Pop Rivet 3/16"

390402400

$0.35

13

RH Front Footrest

518317529

Unavailable

LH Front Footrest

518317530

Unavailable

14

Hex. Screw M10 X 35

207103544

$1.58

15

Flat Washer 10 mm

234001410

$1.26

16

Lock Washer 10 mm

224701170

Unavailable

17

Pop Rivet 3/16”

390407200

$0.70

18

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

19

Hex. Flange Elastic Nut M5

233251414

$1.04

20

Steering Support

518317510

Unavailable

21

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

22

Pivot Arm Support

518317509

Unavailable

23

Flat Washer

224061121

$0.53

24

Elastic Stop Nut M6

232561414

$0.55

25

Insert

293450275

$12.99

26

Guide

518317556

Unavailable

27

Pop Rivet 3/16"

390402200

$0.35

28

RH Upper Bracket

518317542

Unavailable

LH Upper Bracket

518317543

Unavailable

29

CAP - Call your local BRP dealership

414859400

Unavailable

30

Belt Protector

518317572

Unavailable

31

Hex. Screw M8 X 50

207085044

$1.48

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Strap

518317515

Unavailable

34

Lock Washer M6, Black

234161471

$0.53

35

Hex. Screw M6 X 18

207161844

$0.76

36

RH Vertical Bracket

518317520

Unavailable

LH Vertical Bracket

518317521

Unavailable

37

RH Holding Toe

518317531

Unavailable

LH Holding Toe

518317532

Unavailable

38

Flat Washer

224061201

$1.37

39

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Screw M5 X 14

207151444

$0.87

43

Flat Washer M5

234051410

$0.53

44

Elastic Stop Nut M5

232551414

$0.87

45

Handle Steering Support

518317534

Unavailable

46

Muffler Support

518317553

Unavailable

47

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

48

Heat Shield

518317503

Unavailable

49

Hex. Screw M6 X 30

207063044

$1.26

50

Hex. Flange Screw M6 X 35

207063544

$1.37

51

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable
