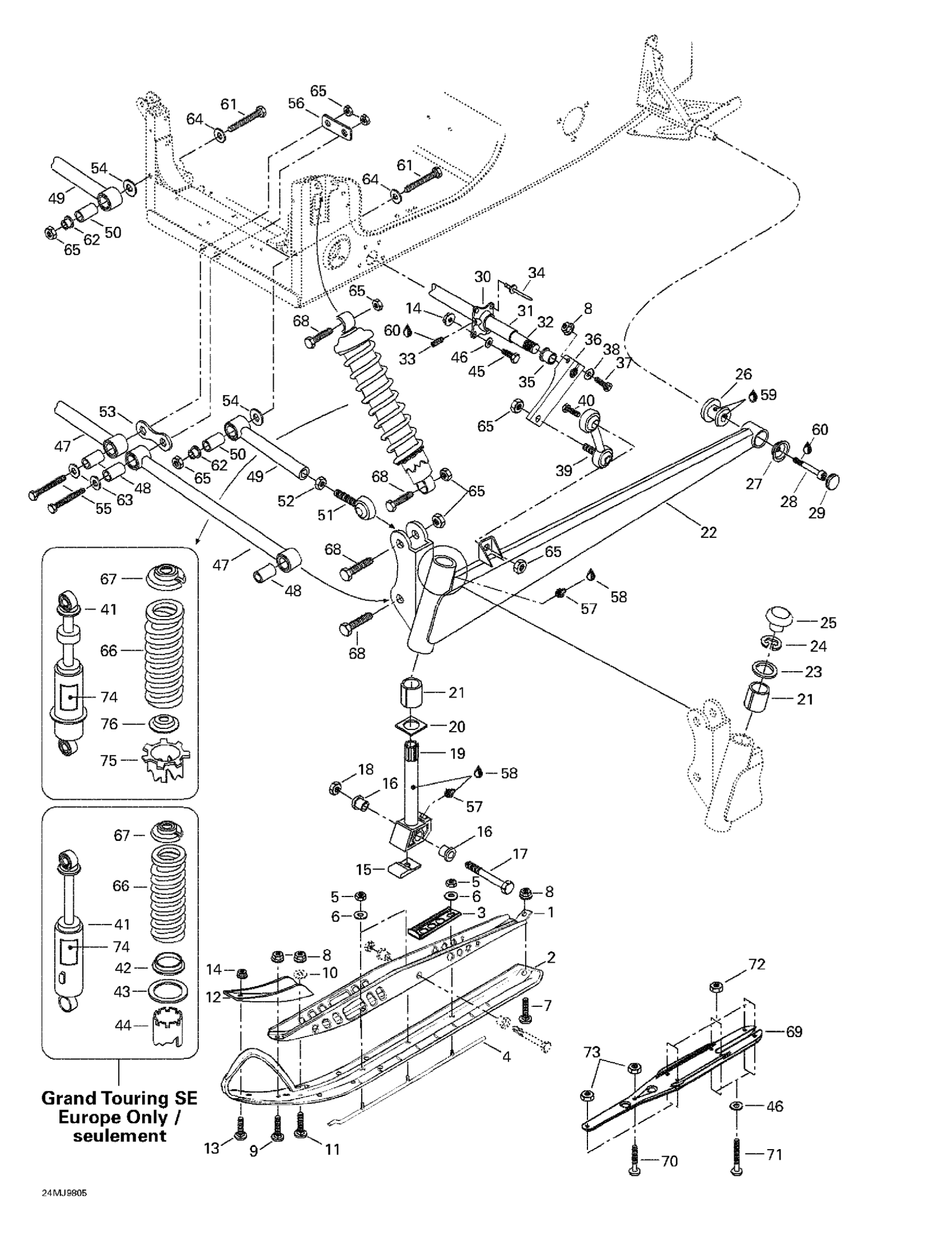

Ski-Doo Grand Touring 700, 1998 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505068100

Unavailable

2

Ski Plastic | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

572085700

Unavailable

3

Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067509

Unavailable

4

Runner Carbide (5) | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067320

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.69

6

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

7

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Carriage Bolt M8 X 30

207783044

$2.11

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

222284065

Unavailable

12

Ski Reinforcement | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

506143800

Unavailable

13

Carriage Bolt M6 X 25

207762544

$1.69

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

570046800

Unavailable

16

CUSHION - Call your local BRP dealership

414530600

Unavailable

17

Hex. Screw M12

732601176

Unavailable

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

19

Ski Leg | Includes 15 - 16.

506144500

Unavailable

20

Wear Plate

506081200

Unavailable

21

Cushion

572069900

Unavailable

22

LH Swing Arm | Grand Touring 700.

506142400

Unavailable

RH Swing Arm | Grand Touring 700.

506142500

Unavailable

23

Thrust Washer

506080900

Unavailable

24

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

25

Cap

572091300

$12.99

26

Damper

570062700

Unavailable

27

Cup

506128500

Unavailable

28

Socket Head Screw M10 X 25

205002544

$1.48

29

CAP - Call your local BRP dealership

572045900

Unavailable

30

RH Housing

506148000

Unavailable

LH Housing

506138900

Unavailable

31

Main Tube

506136200

Unavailable

32

Stabilizator

506134300

Unavailable

33

Socket Set Screw M8 X 10

414440800

$4.12

34

Rivet pop 1/4"

390404900

Unavailable

35

CUSHION - Call your local BRP dealership

415039500

Unavailable

36

Stabilizer Lever

506134402

Unavailable

37

Hex. Screw M8 X 45

207084544

$1.48

38

Flat Washer 8 mm

234081410

$0.83

39

Double Ball Joint

415101400

Unavailable

40

Hex. Screw M10 X 35

207103544

$1.58

41

Front Shock | Formula III 600 LT.

415075500

Unavailable

41

Front Shock | Includes 41 - 44. Formula III 600. Formula III 600 R.

415075200

Unavailable

42

Spring Guide

415052800

Unavailable

43

Thrust Washer

415052900

Unavailable

44

Cam

415109900

Unavailable

45

Hex. Screw M6 X 25

207162544

$1.15

46

Flat Washer 6 mm

234061410

$1.36

47

Lower Arm Ass'y | Includes 47 - 48.

580646500

Unavailable

48

Bushing

506129100

Unavailable

49

Adjustable Arm Ass'y | Includes 49 - 50.

580646400

Unavailable

50

Bushing

506129100

Unavailable

51

Ball Joint

415068400

Unavailable

52

Nut Hexagonal RH.

232026414

$1.48

53

Plate

506147900

Unavailable

54

WASHER - Call your local BRP dealership

506148100

Unavailable

55

Hex. Screw M10 x 85

207008544

$2.96

56

Plate

506148300

Unavailable

57

Grease Fitting

408200700

$3.49

58

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

59

Grease, Super Lube

293550030

$28.99

60

Loctite 271, 10 ml

293800005

$26.99

61

Hex. Screw M10 x 110

732601004

Unavailable

62

Spacer

506148400

Unavailable

63

Washer

503175800

$3.28

64

Flat Washer

399910100

Unavailable

65

Elastic Locking Nut M10 X 1.5

233601416

$1.69

66

Shock Spring | Grand Touring 700.

415079600

Unavailable

Shock Spring | Grand Touring SE.

415079700

Unavailable

Shock Spring (Europe) | Grand Touring SE.

415102000

Unavailable

67

Spring Stopper

706200881

$12.99

68

Hex. Screw M10 X 55

207005544

$2.22

69

Corrector | Formula 500 Deluxe. Formula 583 Deluxe.

572095200

Unavailable

70

SCREW M5 X 30 - Call your local BRP dealership

205453046

Unavailable

71

Allen Screw M5 x 40 | Formula 500 Deluxe. Formula 583 Deluxe.

732601274

Unavailable

72

Elastic Stop Nut M5

232551414

$0.87

73

Hex. Flange Elastic Nut M5

233251414

$1.04

74

Shock Decal

418001500

Unavailable

HPG Decal | Formula III 600. Formula III 600 R.

414871400

Unavailable

75

Cam

503169000

Unavailable

76

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable
