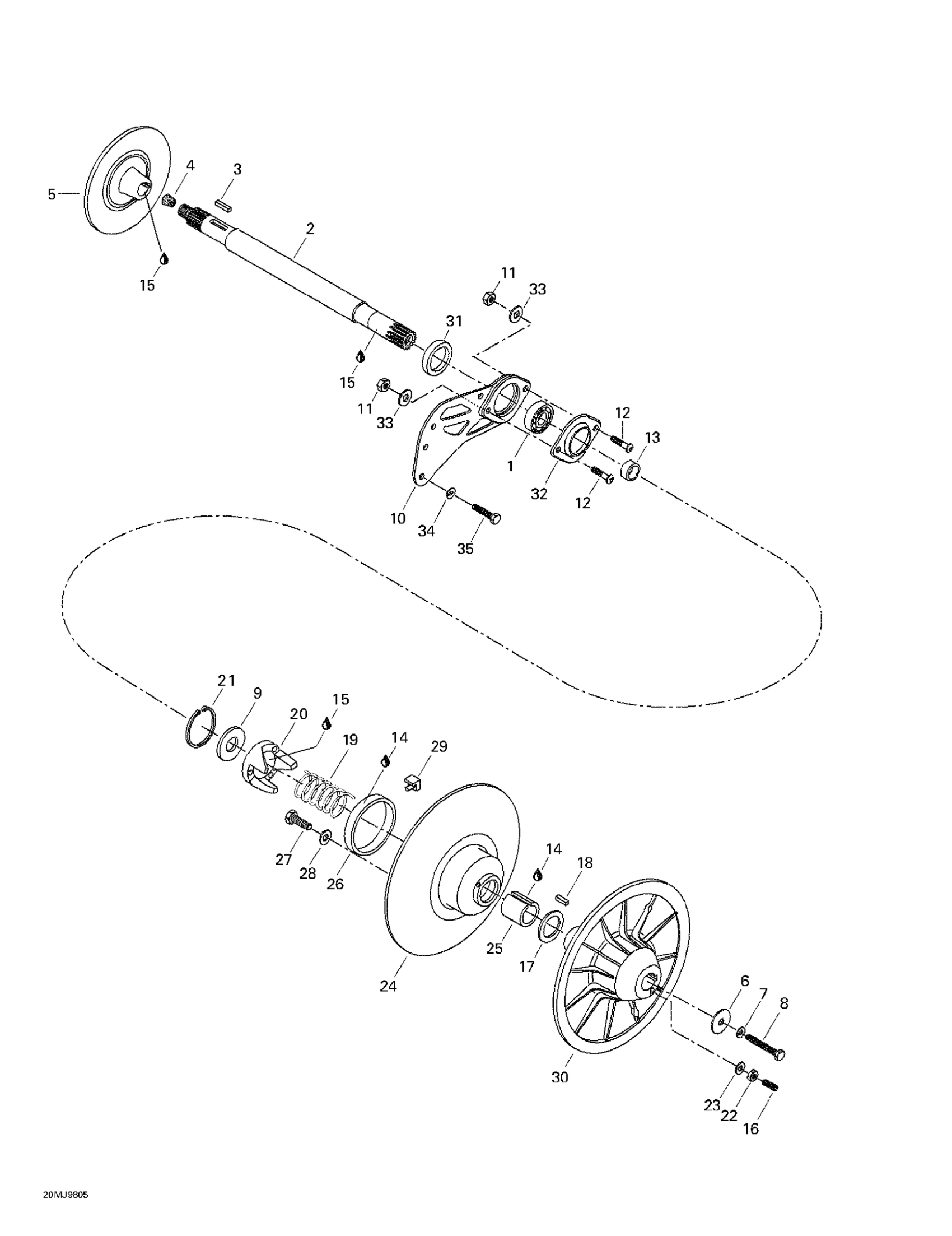

Ski-Doo Grand Touring 700, 1998 05- Driven Pulley Diagram

#

Description
Price

1

BALL BEARING - Call your local BRP dealership

405408200

Unavailable

2

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

3

KEY - Call your local BRP dealership

507021300

Unavailable

4

CORK - Call your local BRP dealership

414784800

Unavailable

5

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

6

Strength Washer

517302322

$12.63

7

Lock Washer 8 mm

234181401

$0.92

8

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

9

Washer

504141800

Unavailable

10

Spacer (Casting)

080039300

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Allen Screw M8 x 25

732601156

Unavailable

13

SPACER - Call your local BRP dealership

417126302

Unavailable

14

Loctite 609, 10 ml

413703100

$26.99

15

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

16

Allen Screw M6 x 30

223563065

Unavailable

17

Thrust Washer

504141900

Unavailable

18

Key

414820800

Unavailable

19

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

20

Cam (47 Deg.) | Grand Touring 583.

504140900

Unavailable

21

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

22

Hex. Nut M6

232061414

$0.53

23

WASHER - Call your local BRP dealership

420245370

Unavailable

24

Sliding Flange Ass'y | Includes 24 - 31. Formula III 800.

504143200

Unavailable

25

BUSHING - Call your local BRP dealership

415011200

Unavailable

26

Garlock Bushing Kit | Includes 14 - 16. Mach Z (Sport).

860423000

Unavailable

27

SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership

732600022

Unavailable

28

Flat Washer

399910000

Unavailable

29

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

30

Fixed Flange

417010200

Unavailable

31

SPACER - Call your local BRP dealership

417126302

Unavailable

32

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

33

Flat Washer 8 mm

234081410

$0.83

34

Lock Washer M6, Black

234161471

$0.53

35

Hex. Screw M6 X 18

207161844

$0.76
