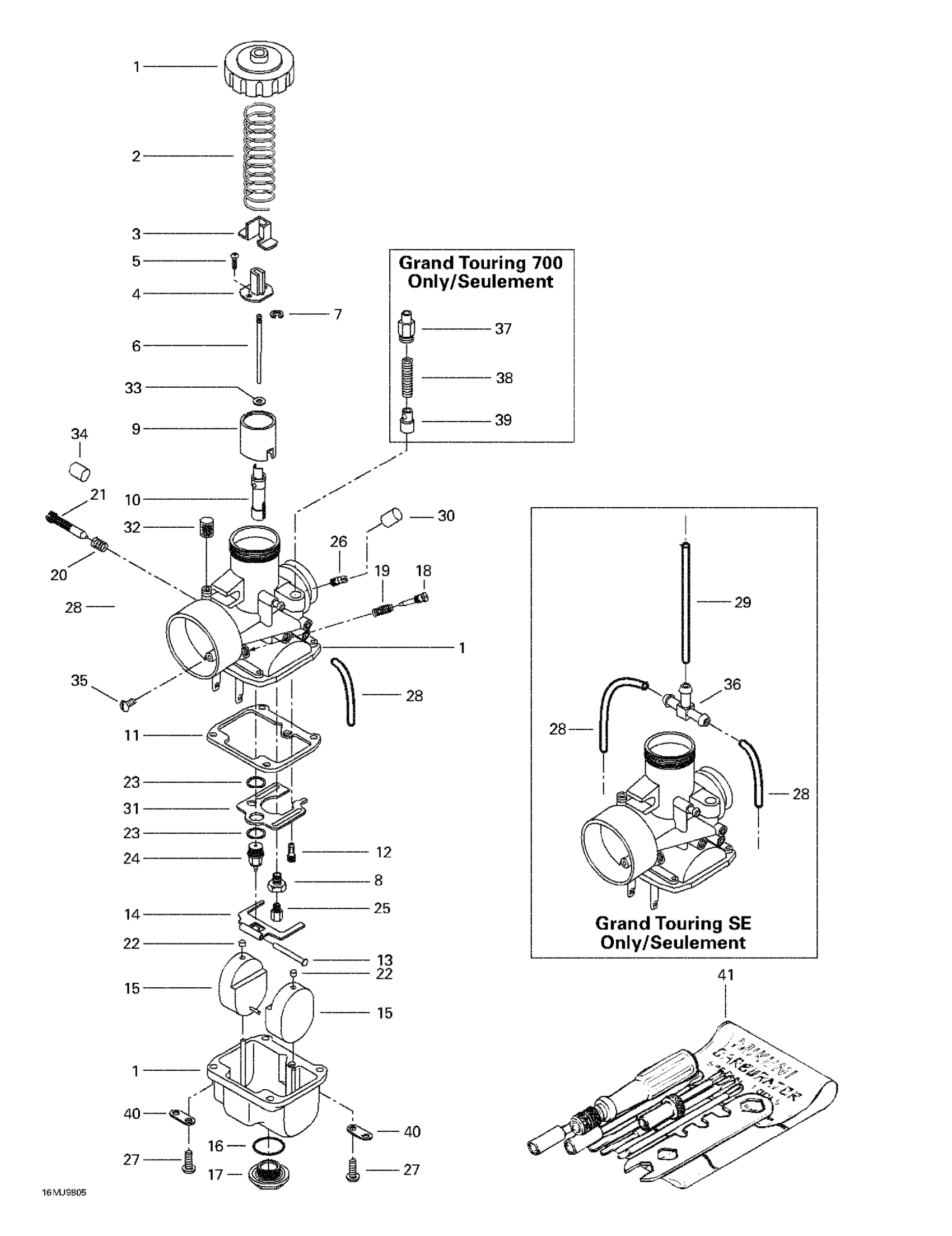

Ski-Doo Grand Touring 700, 1998 02- Carburetors Diagram

#

Description
Price

1

VM 38-396 Carburetor (PTO/MAG) .. | Formula III 700. Formula III 700 R.

403133000

Unavailable

VM 38-397 Carburetor (Center) | Formula III 700. Formula III 700 R.

403133100

Unavailable

1

Carburetor VM 38 -390 | Grand Touring SE.

403132100

Unavailable

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

Needle J8-6DEH5 | Formula III 700.

404161800

Unavailable

Needle J8-6DEY2 | Formula III 700 R.

404157900

Unavailable

7

E-Ring

404152400

$7.27

8

Guide Screw

404105500

$31.99

9

Piston Valve CA 2.5

404131300

Unavailable

10

Needle Jet | Formula III 700.

404159000

Unavailable

NEEDLE JET NJ 480 P-9 - Call your local BRP dealership

404161805

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

13

Lever Pin

404103300

$6.27

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Cap

404105800

$6.38

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

Main Jet MJ 310 (MAG) | Skandic 600.

404107800

$8.36

Main Jet 300

404162115

$9.06

26

Nipple

404153400

$12.16

27

Screw With Lock Washer

404102000

$3.18

28

Air Vent Tube

404161802

Unavailable

Hose | Grand Touring SE.

404161806

Unavailable

29

Vent Tube | Grand Touring SE.

404161808

Unavailable

30

CAP - Call your local BRP dealership

404154900

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Filter | Formula Deluxe 380.

404158900

Unavailable

33

Packing

404117000

$3.29

34

Cap | Formula III 700 R.

404152500

Unavailable

35

Plug Screw

404131700

Unavailable

36

Nipple | Grand Touring SE.

404161807

Unavailable

37

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

38

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

39

PLUNGER ASS'Y - Call your local BRP dealership

404161000

Unavailable

40

PLATE - Call your local BRP dealership

404103000

Unavailable

41

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

42

Hight Altitude Kit, (Not Shown) | Grand Touring 700.

861763100

Unavailable
