02- Air Intake System

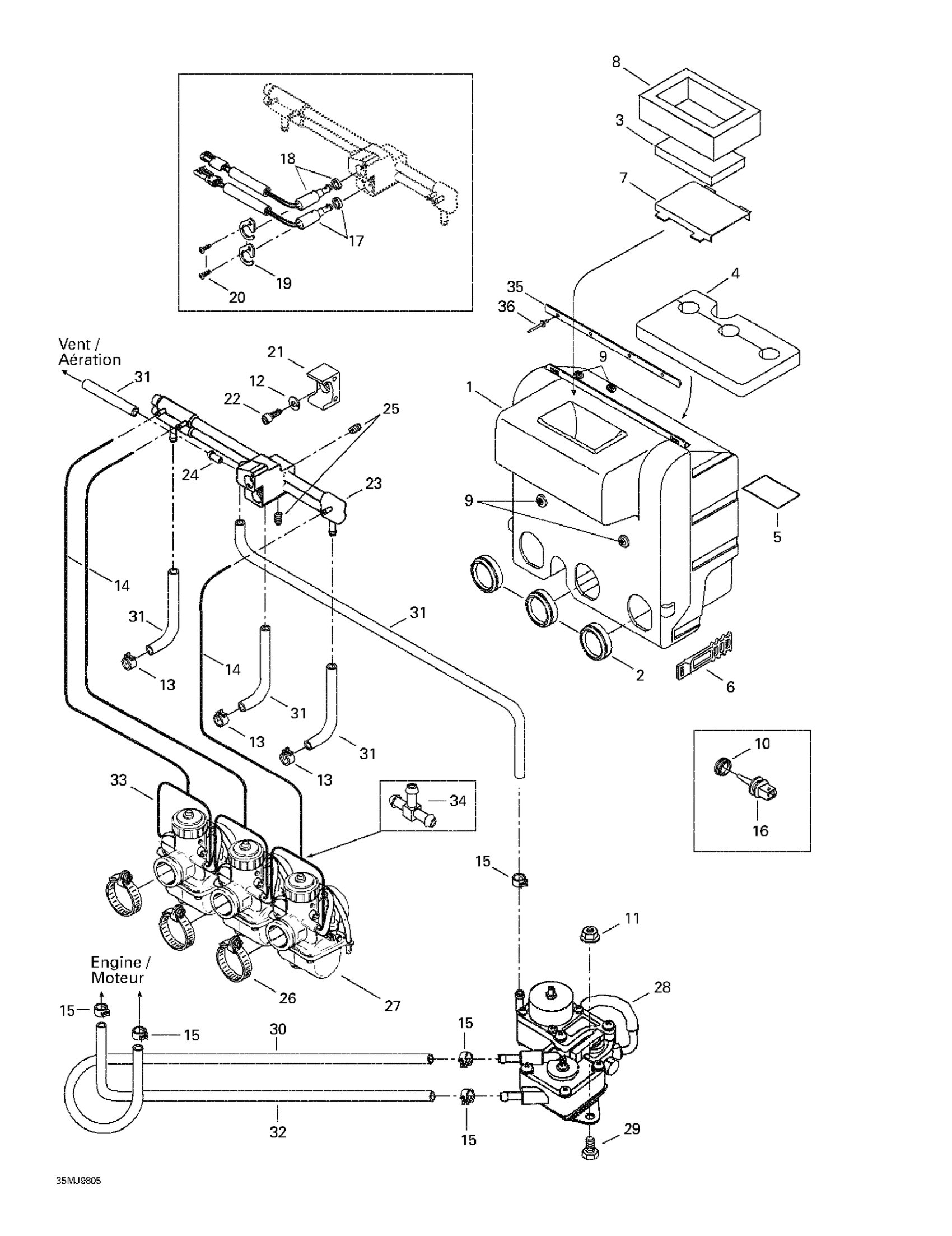

Ski-Doo Grand Touring 700, 1998 02- Air Intake System Diagram
#
Description
Price
1
Air Silencer Ass'y (3 Holes) | Includes 26 - 33.
580651701
Unavailable
1
Air Silencer Ass'y (3 Holes) | Includes 1 - 10. Grand Touring SE.
580651702
Unavailable
2
Air Adaptor | Formula III 700 R.
570065900
Unavailable
3
Air Filter
415081400
Unavailable
4
Inner Foam
415081200
Unavailable
5
Warning Decal
414161500
Unavailable
6
LATCH - Call your local BRP dealership
570069700
Unavailable
7
Intake Grill
517294400
Unavailable
8
Lower Foam
415081300
Unavailable
9
JACK NUT M6 - Call your local BRP dealership
732610057
Unavailable
10
GROMMET - Call your local BRP dealership
570065500
Unavailable
14
Vent Tube | Grand Touring SE.
404161808
Unavailable
16
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
17
Soleno‹d Valve (Female) | Grand Touring SE.
415061400
Unavailable
18
Soleno‹d Valve (Male) | Grand Touring SE.
415061500
Unavailable
19
SOLENOID LOCK - Call your local BRP dealership
415061600
Unavailable
20
SCREW - Call your local BRP dealership
404159300
Unavailable
21
Support | Grand Touring SE.
572096100
Unavailable
22
Machined Screw M6 x 16 | Grand Touring SE.
222861613
Unavailable
23
Pressure Manifold Ass'y | Includes 23 - 25. Grand Touring SE.
415097700
Unavailable
24
Air Jet | Grand Touring SE.
404159700
Unavailable
26
Clamp
420951510
Unavailable
27
VM 38-396 Carburetor (PTO/MAG) .. | Formula III 700. Formula III 700 R.
403133000
Unavailable
VM 38-397 Carburetor (Center) | Formula III 700. Formula III 700 R.
403133100
Unavailable
Carburetor VM 38 -390 | Grand Touring SE.
403132100
Unavailable
28
Air Pump
415097600
Unavailable
33
Hose | Grand Touring SE.
404161806
Unavailable
34
Nipple | Grand Touring SE.
404161807
Unavailable
35
Reinforcement
508000008
Unavailable
