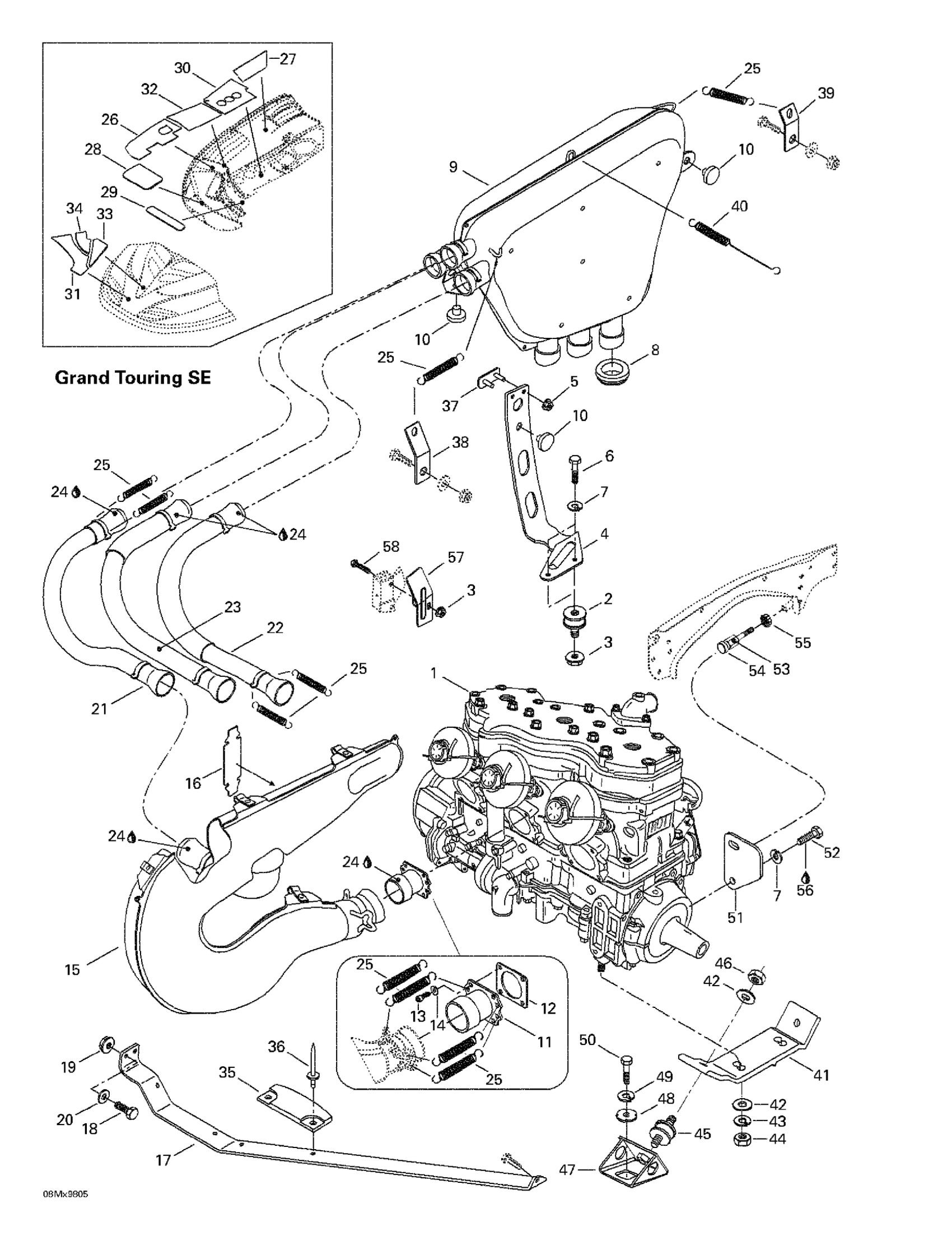

Ski-Doo Grand Touring 700, 1998 01- Engine Support And Muffler (Grand Touring SE) Diagram

#

Description
Price

1

Engine <<699>> | Grand Touring SE.

400603700

Unavailable

2

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Support (Muffler) | Formula III 600. Formula III 600 R. Formula III 600 LT.

514046800

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

7

Lock Washer 8 mm

234181401

$0.92

8

Exhaust Grommet

570066200

Unavailable

9

Muffler | Grand Touring SE.

514046900

Unavailable

10

Rubber Bumper

514053654

$50.99

11

Exhaust Socket | Formula III 600.

420978816

Unavailable

12

Gasket

420850552

$8.85

13

Socket Head Screw M6 X 25

205062544

$1.15

14

Lock Washer M6, Black

234161471

$0.53

15

Tuned Pipe | Includes 15 - 16. Grand Touring SE.

514047500

Unavailable

16

Rubber Pad | Formula III 600.

570068600

Unavailable

17

RH Tuned Pipe Support | Formula III 600.

514098900

Unavailable

LH Tuned Pipe Support | Formula III 600.

514098902

Unavailable

18

Hex. Screw M5 X 20

207152044

$0.90

19

Hex. Flange Elastic Nut M5

233251414

$1.04

20

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

21

Tail Pipe (MAG) | Grand Touring SE.

514099000

Unavailable

22

Tail Pipe (Central) | Grand Touring SE.

514099100

Unavailable

23

Tail Pipe (PTO) | Grand Touring SE.

514099200

Unavailable

24

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

25

Spring

415107100

$6.35

26

Reflective Sheet

514098000

Unavailable

27

RH Reflective Sheet

415083800

Unavailable

28

Leaf Valve Ø16 X 0.114 (C36)

415083900

Unavailable

29

Reflective Sheet

415111900

Unavailable

30

Reflective Sheet

415115000

Unavailable

31

RH Reflective Sheet

415112300

Unavailable

LH Reflective Sheet

415112400

Unavailable

32

Reflective Sheet

415084000

Unavailable

33

RH Reflective Sheet

415112500

Unavailable

LH Reflective Sheet

415112600

Unavailable

34

RH Reflective Sheet

415114800

Unavailable

LH Reflective Sheet

415114900

Unavailable

35

Rubber Pad

570044100

Unavailable

36

Pop Rivet 3/16"

390406500

$0.88

37

Bracket

517294300

Unavailable

38

SPRING BRACKET - Call your local BRP dealership

514049700

Unavailable

39

Spring Bracket

514051000

Unavailable

40

Spring | Formula III 600.

415100300

Unavailable

41

Engine Support | Formula III 600. Formula III 600 R. Formula III 600 LT.

512056400

Unavailable

42

Flat Washer 10 mm

234001410

$1.26

43

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

44

Hex. Nut M10 X 1.5

232006414

$1.37

45

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

46

Elastic Locking Nut M10 X 1.5

233601416

$1.69

47

Engine Support

512050900

Unavailable

48

Lock Washer

512056700

$3.17

49

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

50

Hex. Screw M10 X 25

207102544

$1.37

51

STOPPER PLATE - Call your local BRP dealership

512056000

Unavailable

52

Hex. Screw M8 x 16

207181644

$1.15

53

Stopper Screw

512056900

Unavailable

54

Stopper | Formula III 600.

570049500

Unavailable

55

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

56

Loctite 271, 10 ml

293800005

$26.99

57

Support | Formula III 600.

514050800

Unavailable

58

Hex. Screw M8 X 50

207085044

$1.48
