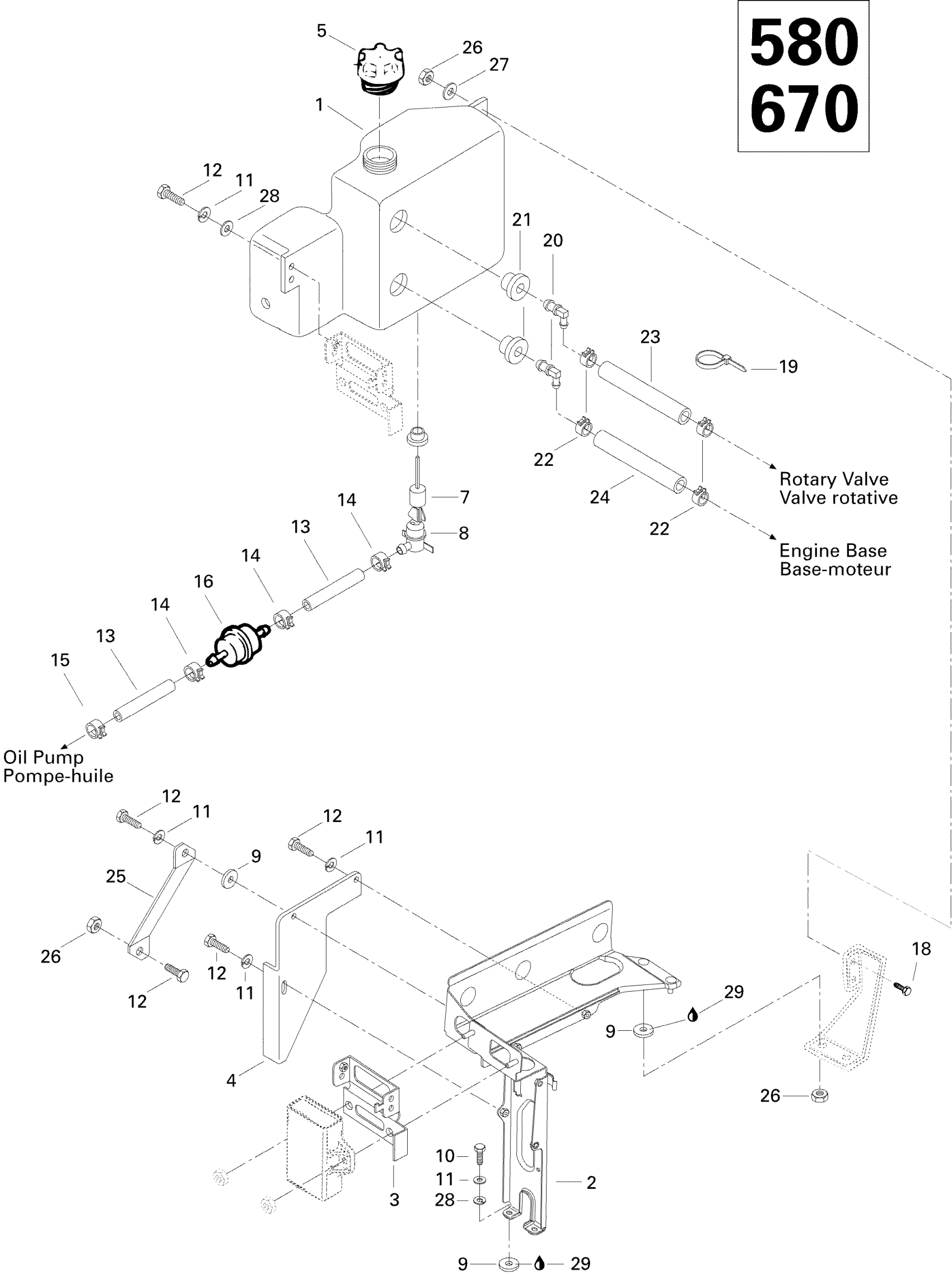

Ski-Doo Grand Touring 670SE, 1996 02- Oil Tank And Support 670SE Diagram

#

Description
Price

1

Injection Oil Tank

572043102

Unavailable

2

Support

517281200

Unavailable

3

Upper Support

517260300

Unavailable

4

Deflector

517275900

Unavailable

5

CAP - Call your local BRP dealership

519000044

Unavailable

6

Insulating Ring

570023000

$5.61

7

Float

414681900

Unavailable

8

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

9

Rubber Spacer

414454400

Unavailable

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

11

Lock Washer M6, Black

234161471

$0.53

12

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

Spring Clamp

414415200

$0.88

15

Spring Clamp

414420700

$0.72

16

Filter

414536500

$4.02

17

SPRING CLIP - Call your local BRP dealership

408801100

Unavailable

18

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

19

Tie-Rap 180 mm

414115200

$0.11

20

Elbow Fitting

414523600

$4.86

21

Grommet | Europe

707800347

$10.49

22

Spring Clamp

414655700

$0.72

23

Not Available As Spare Part - Friction Washer

Unavailable

24

OIL LINE - Call your local BRP dealership

414644800

Unavailable

25

Side Support

504098900

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Flat Washer

224061201

$1.37

28

Flat Washer 6 mm

234061410

$1.36

29

LOCTITE 495, 3GR - Call your local BRP dealership

413703200

Unavailable
