Description

Price

1

«670» Engine

400602200

Unavailable

2

Spring

415107100

$6.35

3

Reflection Plate

414706100

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Engine Support

512054400

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

7

Engine Support

512050900

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Spacer

514035400

Unavailable

11

Spacer

503128100

Unavailable

12

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Flat Washer 8 mm

234081410

$0.83

15

Exhaust Pipe Support

514031100

Unavailable

16

Hex. Screw M8 X 25

207182544

$0.90

17

Stopper Plate

512052900

Unavailable

18

Hex. Screw M6 X 16

207161644

$0.74

19

Lock Washer 8 mm

234181401

$0.92

19

Lock Washer M6, Black

234161471

$0.53

20

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

21

Muffler

514042000

Unavailable

22

Spring

414851600

Unavailable

23

Tail Pipe

514039800

Unavailable

24

Pop Rivet 3/16"

390906800

$0.93

25

Single Tuned Pipe | Includes 25 to 26

514040100

Unavailable

26

Spring

414851900

Unavailable

27

Support Plate

512052300

Unavailable

28

Hex. Screw M8 X 25

207182544

$0.90

29

Flat Washer 8 mm

234081410

$0.83

30

Hex. Elastic Stop Nut M8

232581414

$0.56

31

Nut Hexagonal RH.

232026414

$1.48

32

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

33

Lock Washer

512056700

$3.17

34

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

35

Hex. Screw M10 X 25

207102544

$1.37

36

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

37

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.37

40

FEMALE BALL JOINT - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

420879991

Unavailable

41

Support Ass’y

514031800

Unavailable

42

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Heat Deflector

517263800

Unavailable

46

Support

514034602

Unavailable

47

Loctite 271, 10 ml

293800005

$26.99

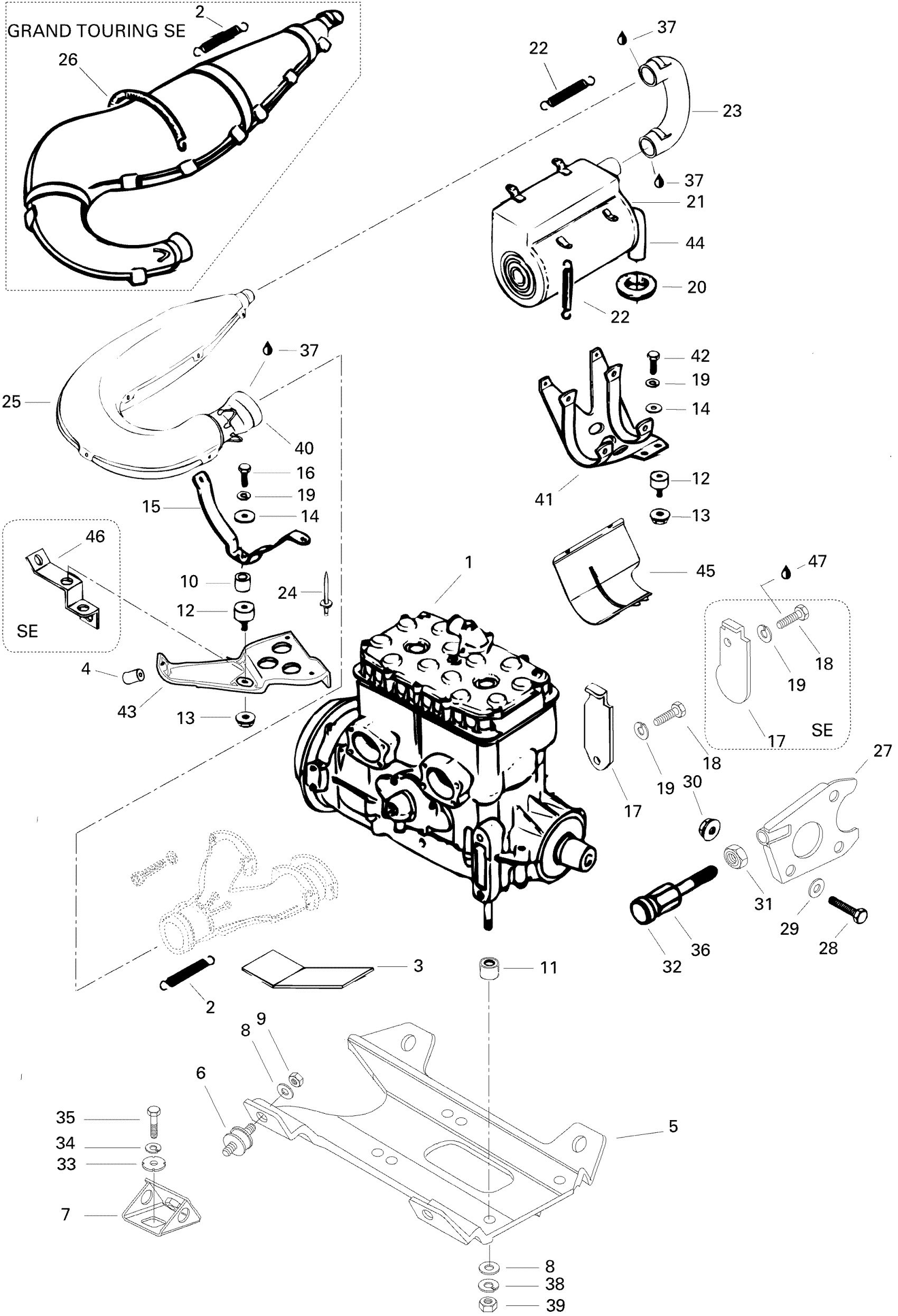

Ski-Doo Grand Touring 670SE, 1996 01- Engine And Engine Support 670SE Diagram

«670» Engine

Spring

Reflection Plate

Not Available As Spare Parts

Engine Support

RUBBER MOUNT - Call your local BRP dealership

Engine Support

Flat Washer 10 mm

Elastic Locking Nut M10 X 1.5

Spacer

Spacer

Rubber Mount | Formula 500. Formula 500 Deluxe.

Hex. Flange Elastic Nut M8

Flat Washer 8 mm

Exhaust Pipe Support

Hex. Screw M8 X 25

Stopper Plate

Hex. Screw M6 X 16

Lock Washer 8 mm

Lock Washer M6, Black

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

Muffler

Spring

Tail Pipe

Pop Rivet 3/16"

Single Tuned Pipe | Includes 25 to 26

Spring

Support Plate

Hex. Screw M8 X 25

Flat Washer 8 mm

Hex. Elastic Stop Nut M8

Nut Hexagonal RH.

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

Lock Washer

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

Hex. Screw M10 X 25

Screw | Formula Deluxe 500 LC.

Sealant, Loctite, 80 ml | DS 650

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

Hex. Nut M10 X 1.5

FEMALE BALL JOINT - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

Support Ass’y

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

Not Available As Spare Parts

Not Available As Spare Parts

Heat Deflector

Support

Loctite 271, 10 ml
