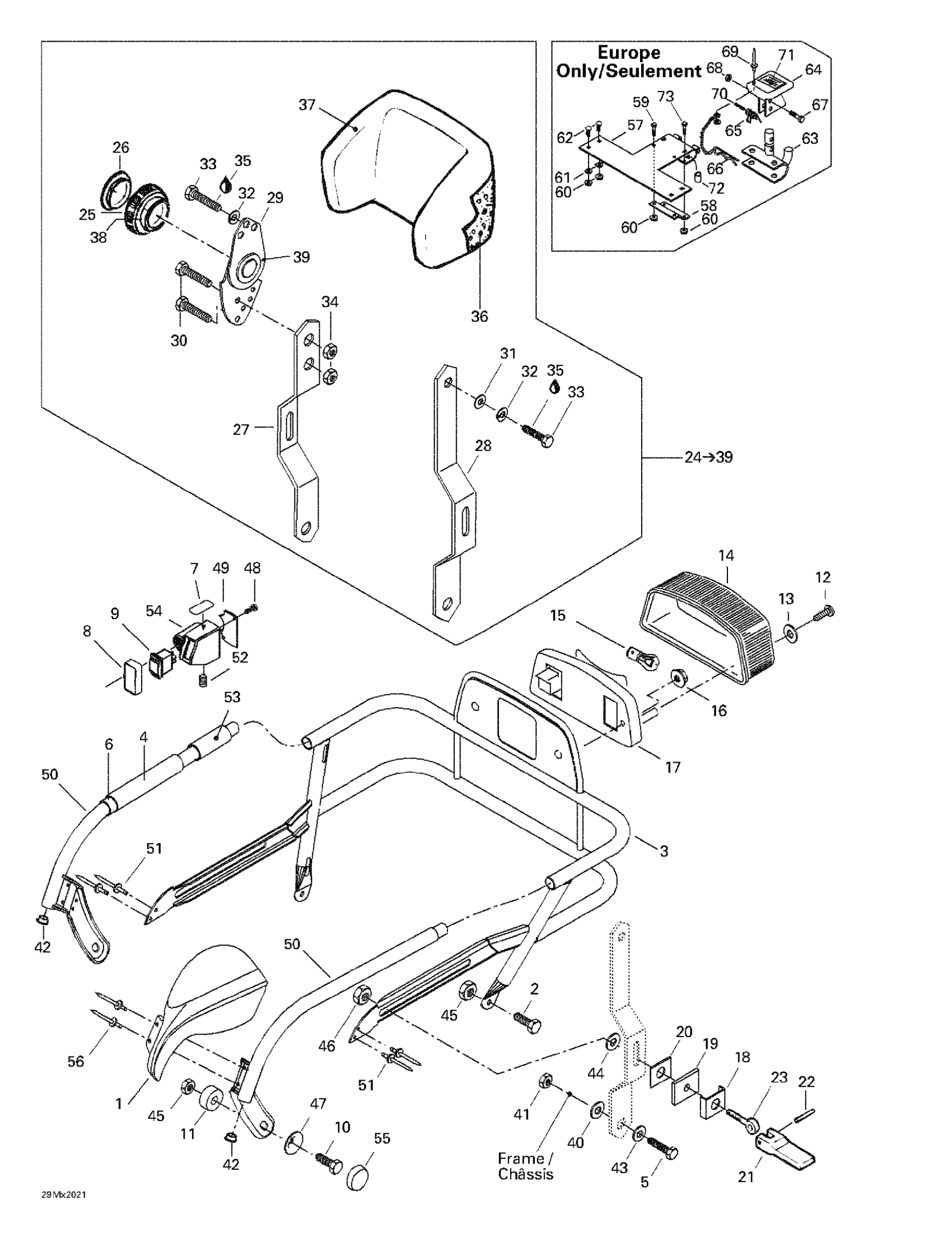

Ski-Doo Grand Touring 600, 2000 09- Luggage Rack, Hitch Diagram

#

Description
Price

1

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

2

Hex. Screw M8 X 20

207182044

$0.74

3

Rack Ass'y

511000126

Unavailable

4

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

5

Hex. Screw M8 X 25

207182584

Unavailable

6

Reflective Sheet

414988700

Unavailable

7

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

8

Switch Protector

511000002

Unavailable

9

Rocker Switch

511000001

Unavailable

10

Hex. Screw M8 X 40

207084044

$1.15

11

Spacer

511000114

Unavailable

12

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Lens

414513700

$28.99

15

Bulb

520000758

$9.10

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Lamp Housing

515175405

Unavailable

18

Guide

517257300

Unavailable

19

Rubber Shim

570027400

Unavailable

20

SPACER - Call your local BRP dealership

517251300

Unavailable

21

Lock Lever

572038200

Unavailable

22

Pin

414821400

$7.55

23

Eye Bolt

517257600

Unavailable

24

Backrest Ass'y | Includes 1 - 16.

510003783

Unavailable

25

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

26

Cap

414821000

Unavailable

27

RH Arm

517296400

Unavailable

28

LH Arm

517296500

Unavailable

29

Recliner

414813300

Unavailable

30

Hex. Screw M8 X 25

207182544

$0.90

31

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

32

Lock Washer 8 mm

234181401

$0.92

33

Hex. Screw M8 X 20

207182044

$0.74

34

Hex. Elastic Stop Nut M8

232581414

$0.56

35

Loctite 243, 10 ml

293800060

$21.49

36

Backrest Foam

414821200

Unavailable

37

Backrest Cover

510003782

Unavailable

38

STRIP - Call your local BRP dealership

415015500

Unavailable

39

Cap

517250500

Unavailable

40

Washer

414819600

Unavailable

41

Hex. Elastic Stop Nut M8

232581414

$0.56

42

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

43

Stainless Steel Flat Washer 8 mm

234081670

$0.67

44

Washer

414819500

Unavailable

45

Hex. Flange Elastic Nut M8

233281414

$1.47

46

Nut

517250000

Unavailable

47

Cup | Package Hunter

705007171

$7.89

48

Screw

732601255

Unavailable

49

Plate

572089300

Unavailable

50

RH Arm

511000108

Unavailable

LH Arm

511000111

Unavailable

51

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

52

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

53

Grip, Short, 60 mm

415050400

Unavailable

54

Switch Housing

572089200

Unavailable

55

CAP - Call your local BRP dealership

572045900

Unavailable

56

Pop Rivet 3/16"

390906800

$0.93

57

Fixation (Europe)

511000065

Unavailable

58

Reinforcement | Europe

517223500

Unavailable

59

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

61

Flat Washer

224061201

$1.37

62

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

63

Hitch | Europe

517199300

Unavailable

64

Hitch Protector | Europe

517152700

Unavailable

65

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

66

Hair Pin

114045200

$11.11

67

Hex. Screw M6 X 30

207063044

$1.26

68

Elastic Stop Nut M6

232561414

$0.55

69

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

70

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

71

Instruction Label (Hitch)

414998500

Unavailable

72

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

73

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable
