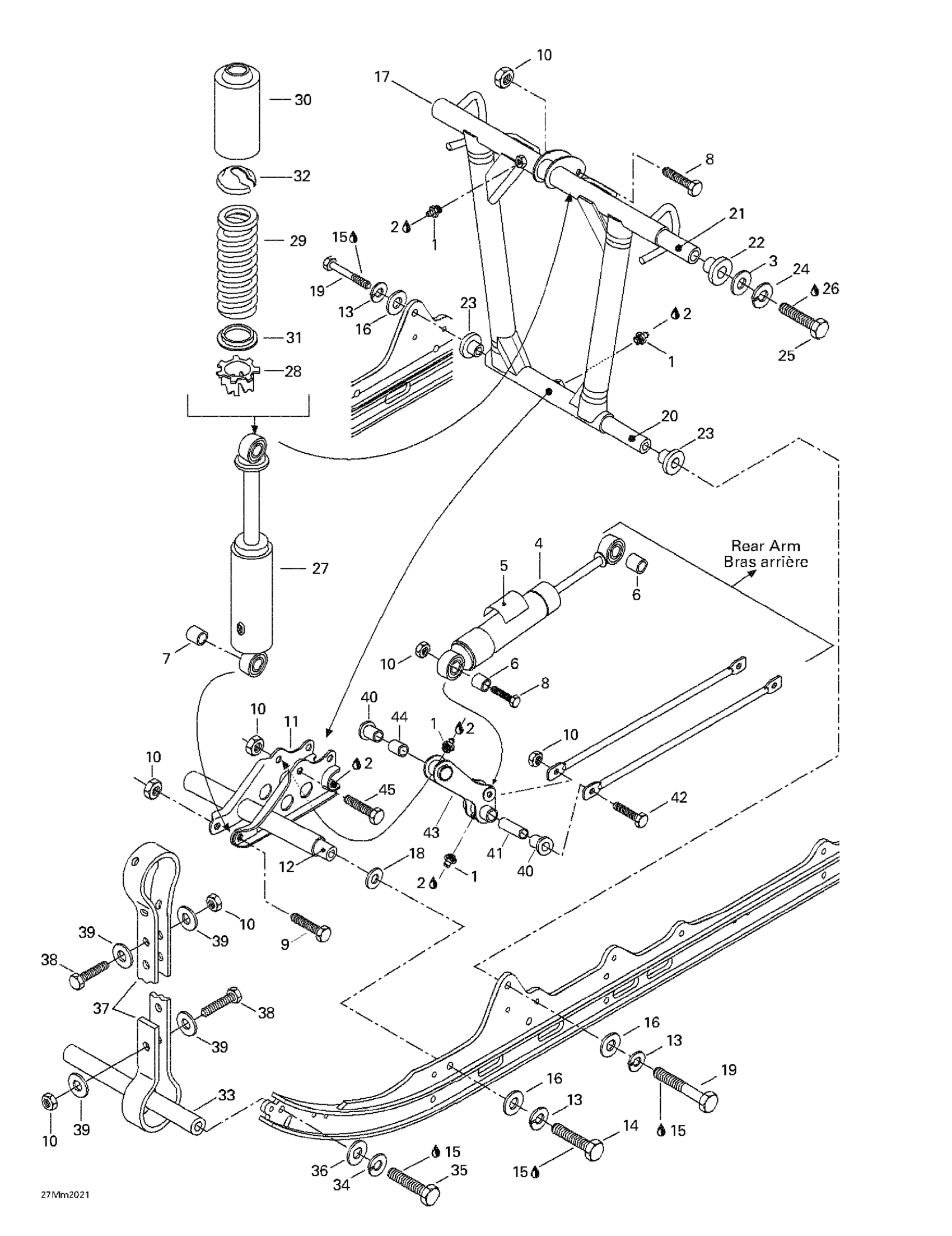

Ski-Doo Grand Touring 600, 2000 08- Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

$3.49

2

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

3

Flat Washer 10 mm

234001410

$1.26

4

Rear Shock

415102400

Unavailable

Rear Shock (Europe)

503189496

Unavailable

5

HPG Decal (Europe)

516000182

Unavailable

6

Bushing

414936000

$13.99

7

Cushion

414917900

Unavailable

8

Hex. Screw M8 X 40

207084044

$1.15

9

Hex. Screw M8 X 55

207085544

$1.68

10

Hex. Elastic Stop Nut M8

232581414

$0.56

11

Welded Shock Support

503188976

Unavailable

12

Lower Axle

503174900

Unavailable

13

Lock Washer 12 mm

234120602

Unavailable

14

Hex. Screw M12 x 40

207124044

Unavailable

15

Loctite 271, 10 ml

293800005

$26.99

16

Flat Washer 12 mm

234021410

$0.72

17

Front Arm

503189185

Unavailable

18

Hardened Washer

503175400

Unavailable

19

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

20

SHAFT - Call your local BRP dealership

503189313

Unavailable

21

SHAFT - Call your local BRP dealership

503190387

Unavailable

22

Bushing

503189324

$14.15

23

CUSHION - Call your local BRP dealership

503189323

Unavailable

24

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

25

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Center Shock

503189196

Unavailable

28

Cam

503169000

Unavailable

29

Shock Spring

415057500

Unavailable

30

Protector

503193663

$37.99

31

Spring Guide

572092600

Unavailable

32

Spring Stopper

706200881

$12.99

33

Axle

503151600

$18.49

34

Lock Washer 8 mm

234181401

$0.92

35

Hex. Screw M8 X 30

207183044

$1.15

36

Flat Washer 8 mm

234081410

$0.83

37

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

38

Hex. Screw M8 X 25

207182544

$0.90

39

WASHER - Call your local BRP dealership

517078700

Unavailable

40

Plastic Cushion

415052300

Unavailable

41

Tie Rod Shaft

503171600

Unavailable

42

Hex. Screw M8 X 90

207089044

$3.48

43

Lever

503171400

Unavailable

44

Pivot Axle

503171700

Unavailable

45

Hex. Screw M8 X 50

207085044

$1.48
