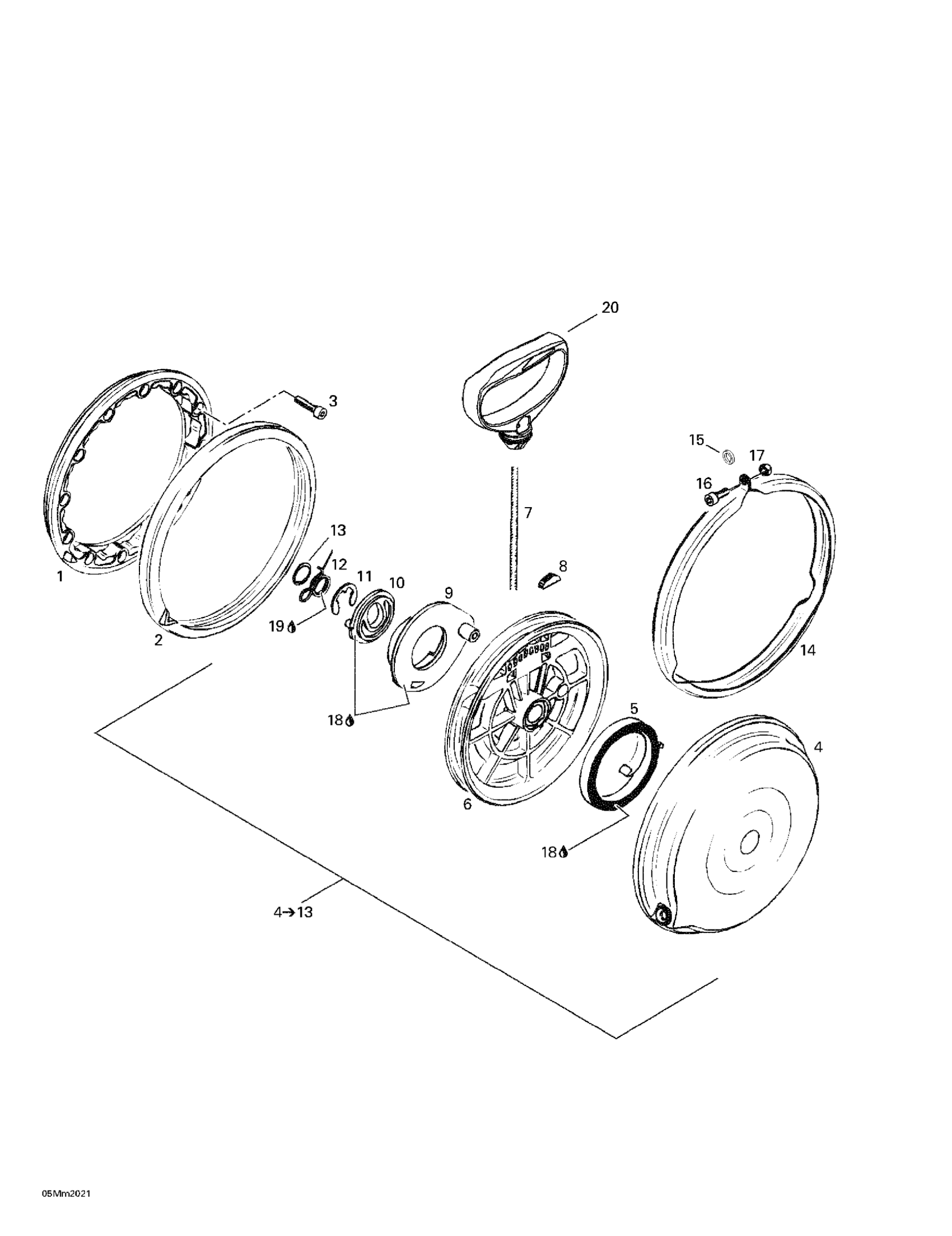

Ski-Doo Grand Touring 600, 2000 04- Rewind Starter Diagram

#

Description
Price

1

Connecting Flange | Skandic 600.

420810860

Unavailable

2

DAMPER RING - Call your local BRP dealership | Skandic 600.

420860950

Unavailable

3

Socket Head Screw M6 X 25

205062544

$1.15

4

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$270.49

4

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$270.49

5

Rewind Spring

420939115

$30.49

6

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

420852284

Unavailable

7

Was 412500100 Rope-Starter

219704403

$158.99

8

Key Clamp

420852070

$4.23

9

Pawl

420852296

$20.99

10

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

11

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

12

Pawl Spring

420938986

$9.27

13

LOCK RING - Call your local BRP dealership

420945770

Unavailable

14

Clamp | Skandic 600.

420851330

Unavailable

15

WASHER-DISTANCE 6.7X14X3 - Call your local BRP dealership | Skandic 600.

420944310

Unavailable

16

Socket Head Screw M6 X 20

205062044

$1.26

17

Elastic Stop Nut M6

232561414

$0.55

18

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

19

Molykote G-N, 50 g

420297433

$26.99

20

Starter Grip

572084400

$14.83
