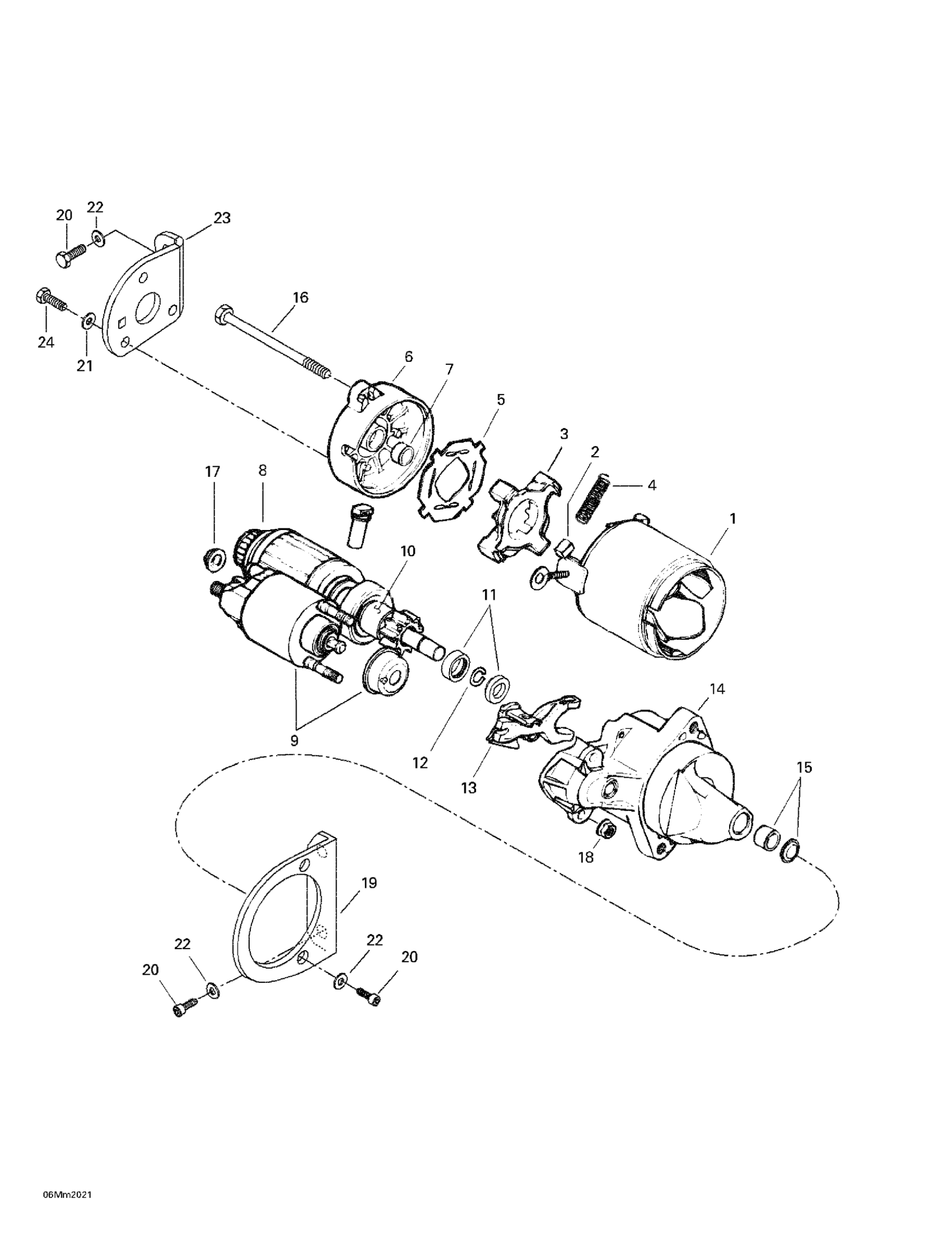

Ski-Doo Grand Touring 600, 2000 04- Electric Starter Diagram

#

Description
Price

1

Starter | Includes 1 - 18.

515175438

Unavailable

1

Starter Housing

410213106

Unavailable

2

BRUSH KIT - Call your local BRP dealership

410213107

Unavailable

3

BRUSH HOLDER - Call your local BRP dealership

410209700

Unavailable

4

BRUSH SPRING - Call your local BRP dealership

410209800

Unavailable

5

INSULATOR - Call your local BRP dealership

410209900

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

BRASS BUSHING - Call your local BRP dealership

410210100

Unavailable

8

Armature Assy.

410210200

Unavailable

9

SWITCH ASSY. - Call your local BRP dealership

410210300

Unavailable

10

STARTER CLUTCH - Call your local BRP dealership

410210400

Unavailable

11

NUT - Call your local BRP dealership

410212500

Unavailable

12

CIRCLIP - Call your local BRP dealership

410212600

Unavailable

13

Lever

410213109

Unavailable

14

Housing

410213110

Unavailable

15

BRASS BUSHING - Call your local BRP dealership

410210900

Unavailable

16

Bolt | Skandic 600.

410213112

Unavailable

17

NUT - Call your local BRP dealership

410211100

Unavailable

18

NUT - Call your local BRP dealership

410211200

Unavailable

19

Starter Bracket (PTO) | Skandic 600.

515175142

Unavailable

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

21

Flat Washer 6 mm

234061410

$1.36

22

Flat Washer With Teflon 8 mm

250200008

$3.80

23

Starter Bracket (MAG) | Skandic 600.

515175441

Unavailable

24

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87
