Description

Price

1

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

512059039

Unavailable

2

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

3

Plastic Clip, Spark Plug Wire

410914600

$5.61

4

Female Connector, 2 Circuits

409207300

$9.85

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

Female Terminal

278000632

$2.09

7

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

8

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

9

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

10

Calibration Module | Formula Deluxe 500.

515175380

Unavailable

11

Electrical Box Decal

516000245

Unavailable

12

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

13

Female Terminal

278000632

$2.09

14

Sealing Cap

293000052

$3.19

15

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

16

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

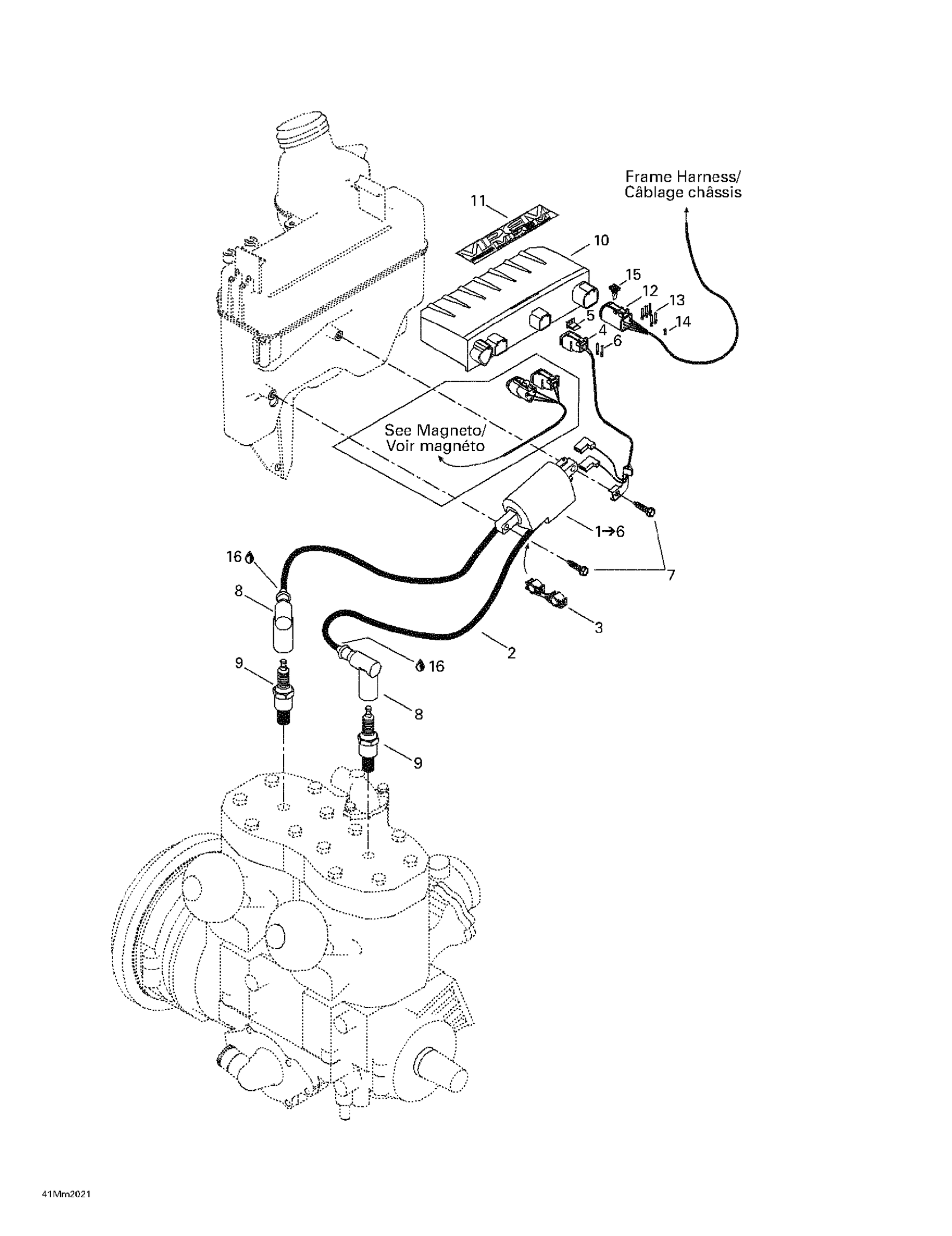

Ski-Doo Grand Touring 600, 2000 03- Ignition Diagram

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

Plastic Clip, Spark Plug Wire

Female Connector, 2 Circuits

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

Female Terminal

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

SPARK PLUG CAP - Call your local BRP dealership

Spark Plug NGK BR9ES This part replaces 414961100.

Calibration Module | Formula Deluxe 500.

Electrical Box Decal

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

Female Terminal

Sealing Cap

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

Was 293550004 Dielectric Grease, 150 g
