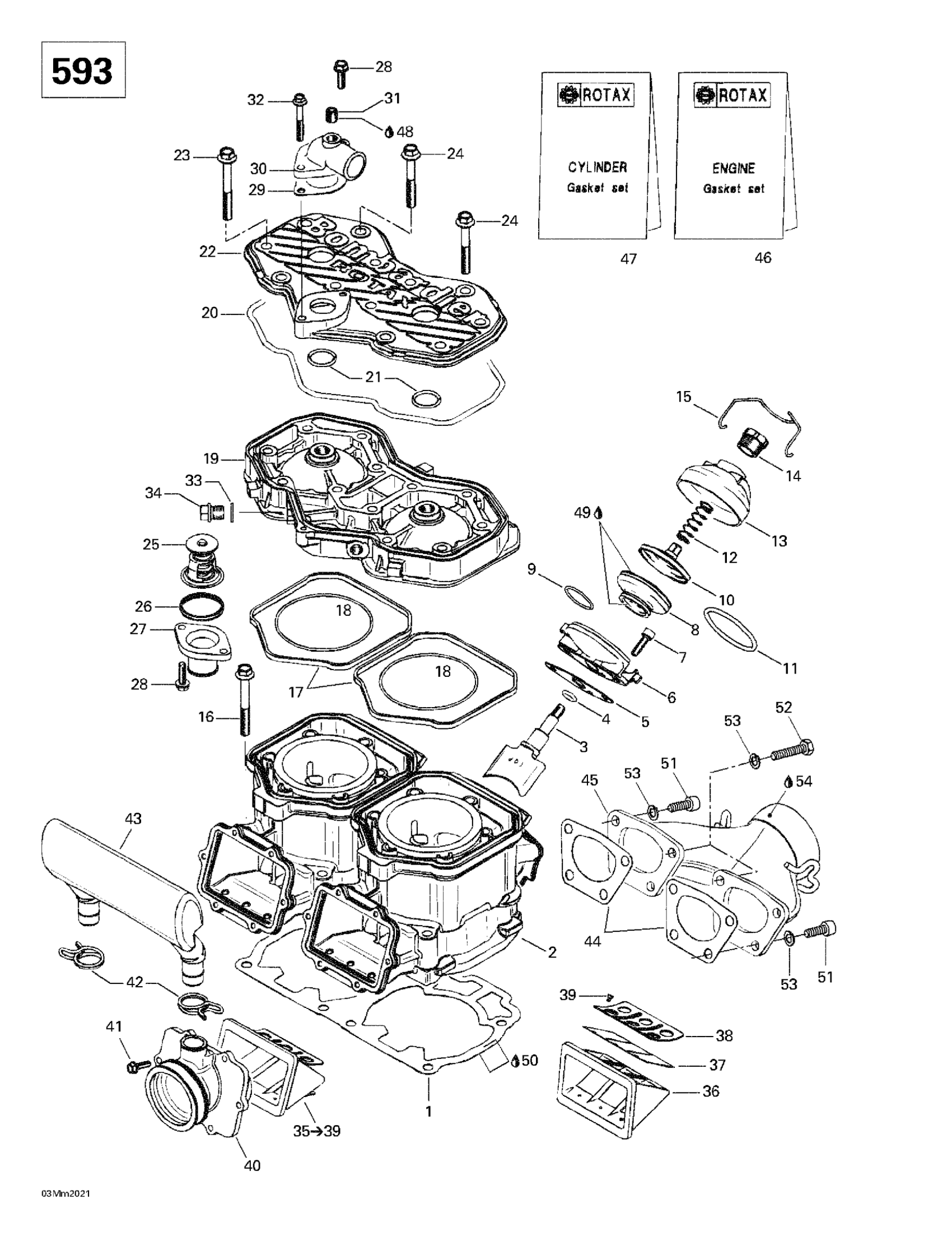

Ski-Doo Grand Touring 600, 2000 Cylinder, Exhaust Manifold, Reed Valve Diagram

#

Description
Price

1

Gasket 0.8 mm

420431423

$24.60

Gasket 0.7 mm

420431422

$26.09

Gasket 0.6 mm

420431421

$18.63

Gasket 0.5 mm

420431420

$23.10

2

Cylinder With Sleeve

420613628

$435.04

3

Exhaust Valve

420854371

$55.94

4

O-Ring

420430110

$4.15

5

Gasket

420250239

$6.42

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 X 20

205062044

$1.22

8

Exhaust Bellows

420260723

$40.27

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

Spring This part replaces 420239944.

420239954

$7.09

13

Valve Cover

420911552

$36.54

14

Adjuster Screw

420241221

$12.15

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$5.91

17

Rubber Ring

420931590

$5.52

18

O-Ring This part replaces 420850540.

293300026

$3.06

19

CYLINDER HEAD (SILVER) - Call your local BRP dealership | Skandic 600.

420923450

Unavailable

20

O-Ring This part replaces 290950320.

420950320

$13.18

21

O-Ring

420430782

$5.06

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

23

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

24

Hex. Screw M8 X 56.5

420941627

$8.09

25

Thermostat This part replaces 414834100.

420922519

$57.43

26

SEALING RING - Call your local BRP dealership

420931270

Unavailable

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

28

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

29

Gasket

420850338

$9.97

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

31

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

32

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

33

Aluminum Sealing Ring

420250016

$5.06

34

Plug screw

420841924

$13.18

35

Reed Valve Ass'y

420924519

$49.22

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Reed Pedal

420924532

$42.51

38

Reed Pedal Stop

420924539

$11.18

39

Phillips Screw M3 X 5

420941215

$1.63

40

CARBURETOR SOCKET - Call your local BRP dealership | Formula Deluxe 600.

420867805

Unavailable

41

Taptite Screw M5 X 16

420941928

Unavailable

42

CLAMP - Call your local BRP dealership

420851440

Unavailable

43

Intake Resonator

420867815

Unavailable

44

Gasket

420931610

$11.04

45

Exhaust Manifold

420979543

Unavailable

46

Engine Gasket Set | Formula Deluxe 600.

420888581

Unavailable

47

Gasket Set, Cylinder

420893075

$161.91

48

Loctite 243, 10 ml

293800060

$21.49

49

Dow Corning 111, 150 g

413707000

$59.99

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

51

Socket Head Screw M8 X 25

205082544

$1.06

52

Hex. Screw M8 X 20

207182044

$0.70

53

Lock Washer 8 mm

234181401

$0.87

54

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85
