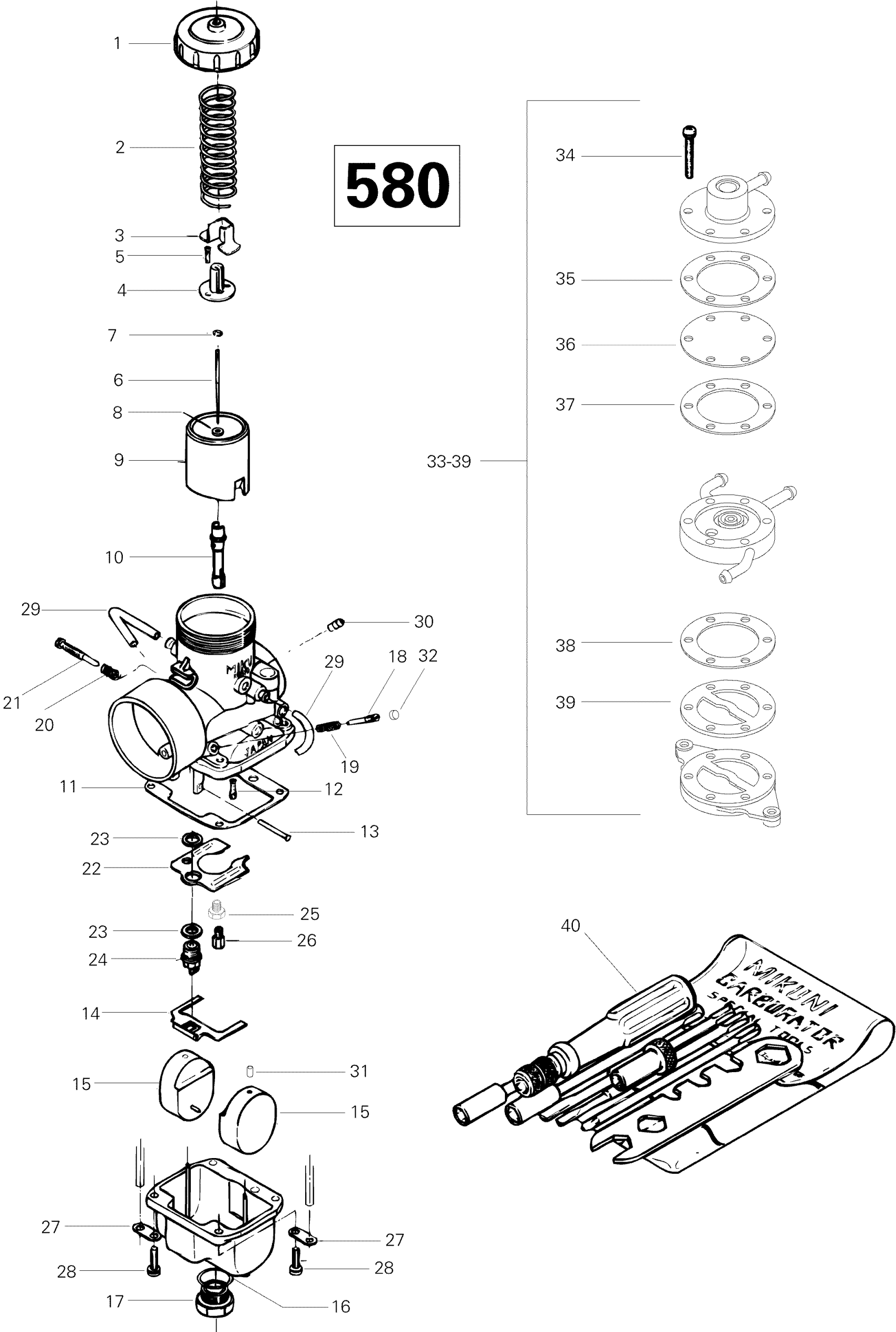

Ski-Doo Grand Touring 580, 1996 02- Carburetor 580 Diagram

#

Description
Price

1

VM 38-317 Carburetor (PTO Side) | Includes 1 to 33

403126000

Unavailable

1

VM 38-318 Carburetor (MAG Side) | Includes 1 to 33

403126100

Unavailable

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

Jet Needle 6DHN44

404149200

Unavailable

7

E-Ring

404152400

$7.27

8

Packing

404117000

$3.29

9

Piston Valve CA 2.5

404131300

Unavailable

10

Needle Jet NJ-480-O-4

404152100

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.27

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

18

Air Screw

404102300

$14.35

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Baffle Plate

404105900

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

Guide Screw

404105500

$31.99

26

Main Jet MJ 370 (MAG) | Summit 670.

404106200

$5.21

26

Main Jet 360

404106100

$5.21

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

Hose | Grand Touring SE.

404109800

Unavailable

30

Nipple

404153400

$12.16

31

Cap

404105800

$6.38

32

Cap | Formula III 700 R.

404152500

Unavailable

33

Fuel Pump

403900900

Unavailable

34

Screw

404900500

Unavailable

35

Packing

404900400

Unavailable

36

Gasket

404902000

Unavailable

37

Diaphragm

404901500

Unavailable

38

Gasket

404901900

Unavailable

39

PACKING - Call your local BRP dealership

404900000

Unavailable

40

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

41

High Altitude Kit, (Not Shown)

861751000

Unavailable
