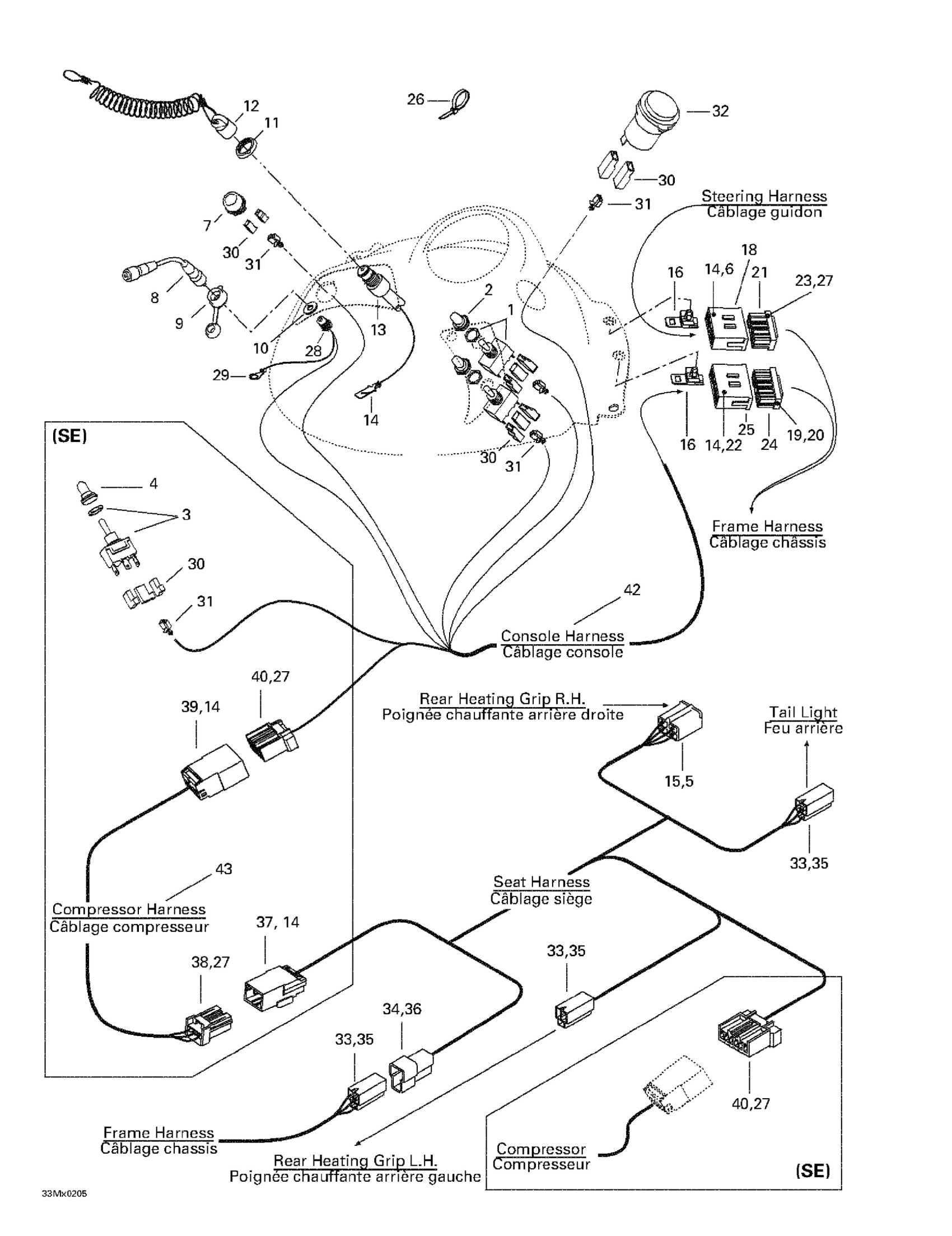

Ski-Doo Grand Touring 500/600/700/800, 2002 Console Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$34.58

2

Switch Cover

515175281

$15.03

3

Switch (Compressor) | Grand Touring 600. Grand Touring 800.

410111500

Unavailable

4

Switch Cover

515175281

$15.03

5

Female Terminal

515175724

Unavailable

6

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

7

Push Button

415130372

$124.99

8

EXTENSION - Call your local BRP dealership

515175971

Unavailable

9

Cap

572103300

$9.65

10

Washer

503175800

$3.26

11

Safety Nut (DESS Switch)

278002963

$2.72

12

DESS

515178284

$81.51

13

DESS SWITCH - Call your local BRP dealership

515175145

Unavailable

14

Male Terminal

515175232

$1.49

15

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

16

Housing Support

515175283

$8.43

17

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

18

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

19

Female Terminal

515175231

$4.12

20

Female Terminal

515175235

Unavailable

21

Female Terminal Housing, 13 Circuits

515175350

$12.88

22

Male terminal

515175234

Unavailable

23

Female Terminal

515175282

$6.43

24

Female Terminal Housing (12 circuits)

278001676

Unavailable

25

Male Terminal Housing (12 circuits)

278001675

Unavailable

26

Tie Wrap 94 mm | 4X4

293750001

$0.83

27

Female Terminal

515175231

$4.12

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Female Terminal Housing, 1 Circuit

409010400

$7.48

31

Female Terminal

409010100

$5.46

32

Outlet Power Kit, 12 Volts

861507200

$30.52

33

Female Housing

409204300

Unavailable

34

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

35

Female Terminal

561503100

Unavailable

36

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

37

Male Housing, 3 Circuits

515175494

$15.35

38

Female Housing, 3 Circuits

515175495

$15.35

39

Male Terminal Housing, 6 Circuits

515175662

$8.57

40

Female Terminal Housing, 6 Circuits

515175543

$8.57

41

Frame Harness (Not Shown)

515175639

Unavailable

42

Console Harness

515175640

Unavailable

43

Compressor Harness (SE) | Grand Touring 600. Grand Touring 800.

515175645

Unavailable
