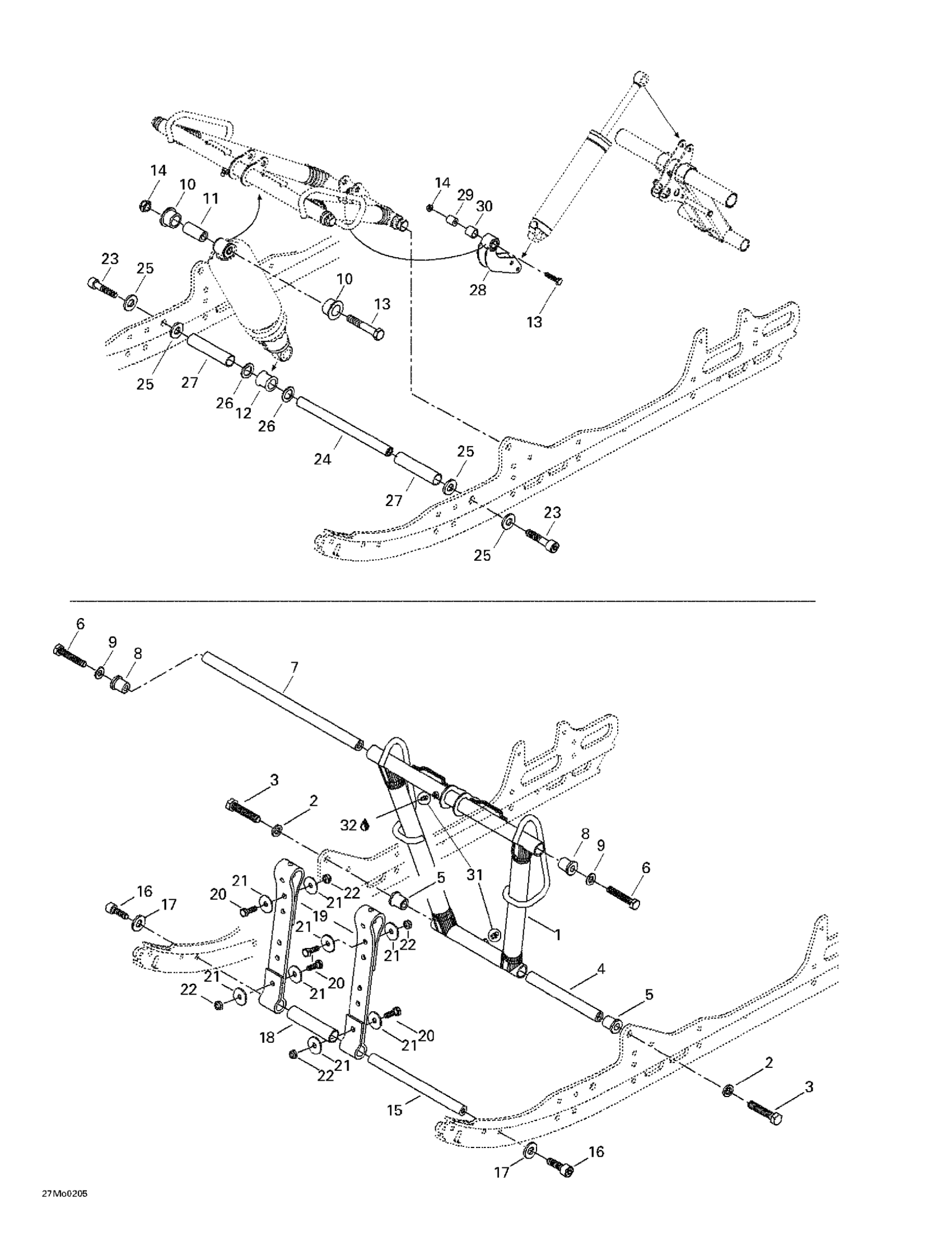

Ski-Doo Grand Touring 500/600/700/800, 2002 Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.10

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$10.84

9

Washer

732900049

$0.55

10

Urethane Bushing

503189117

$6.67

11

Bushing | Includes 240d to 240d1

503189282

$4.06

12

Bushing

503189271

$10.15

13

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

14

Elastic Locking Nut M10 X 1.5

233601416

$1.63

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

17

Washer

503189564

$0.70

18

Spacer

503189265

$4.61

19

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

20

Hex. Screw M8 X 25

207182544

$0.85

21

Flat Washer

224081301

$0.84

22

Hex. Elastic Stop Nut M8

232581414

$0.54

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

24

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

25

Washer

503189276

$3.10

26

Washer

503189273

$3.10

27

SPACER - Call your local BRP dealership

503189274

Unavailable

28

Rocker

503189417

Unavailable

29

Rocker Axle

503189388

Unavailable

30

CUSHION - Call your local BRP dealership

503189626

Unavailable

31

Grease Fitting

408200700

$3.21

32

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
