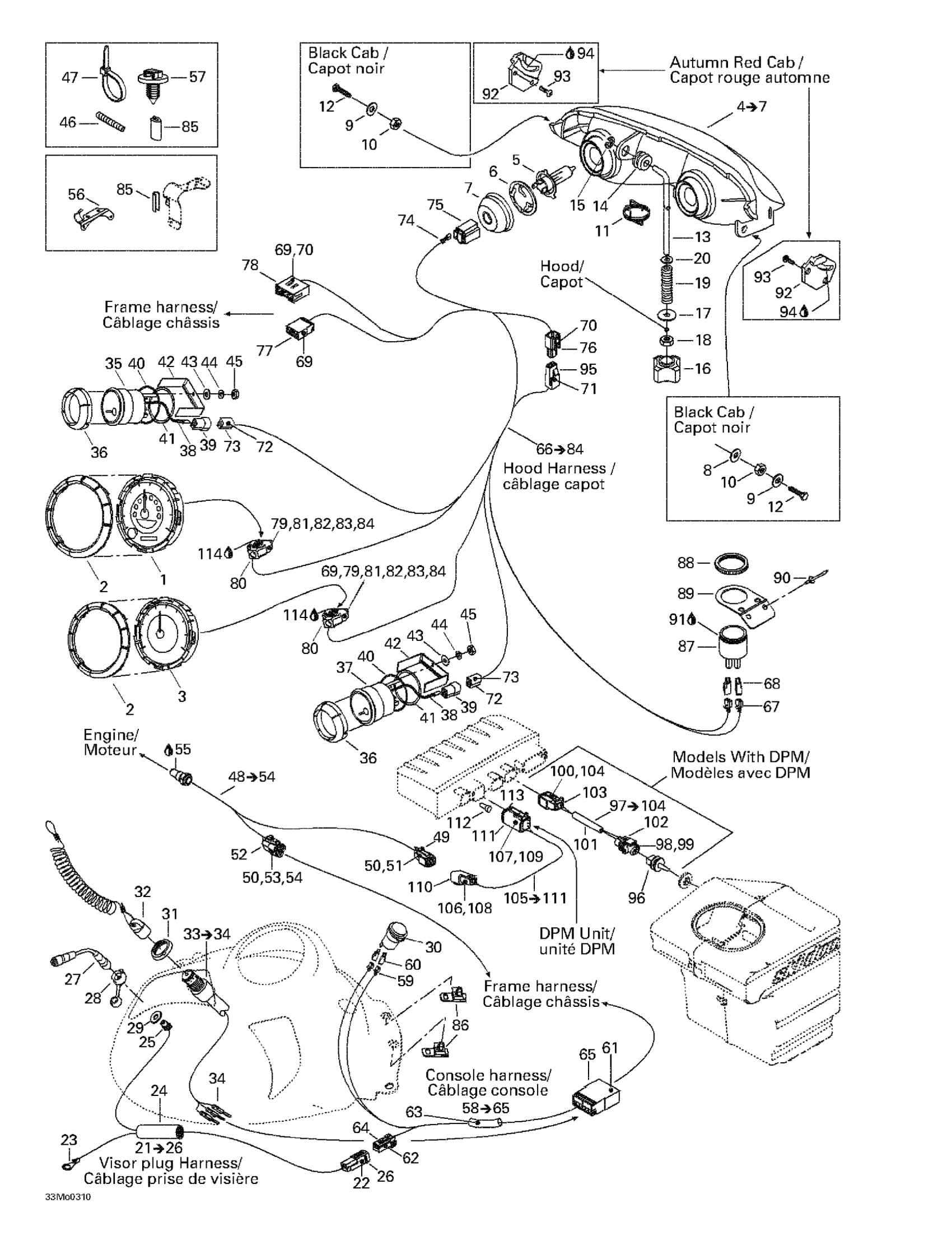

Ski-Doo Grand Touring 500/600/700, 2003 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Grand Touring 600. Grand Touring 700.

515175683

Unavailable

1

Electronic Speedometer, Kmh

515175942

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515175943

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

Flat Washer M5

234051410

$0.53

10

NUT M5 - Call your local BRP dealership

250100018

$6.99

11

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

12

Hex. Screw M5 X 35

207053544

$1.15

13

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

14

Grommet - Call your local BRP dealership

415100800

Unavailable

15

Push Nut

732610072

$2.19

16

Handle - Call your local BRP dealership

515175548

Unavailable

17

Washer

224060251

$0.58

18

Elastic Stop Nut M6

232561414

$0.55

19

SPRING - Call your local BRP dealership

415100600

Unavailable

20

Flat Washer 6 mm

234061410

$1.36

21

Visor Harness

515177837

$33.99

22

Male Terminal

515175232

$1.58

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Male Terminal Housing, 2 Circuits

515175654

$9.12

27

EXTENSION - Call your local BRP dealership

515175971

Unavailable

28

Cap

572103300

$10.49

29

Washer

503175800

$3.28

30

Outlet Power Kit, 12 Volts

861507200

$36.99

31

Safety Nut (DESS Switch)

278002963

$3.28

32

DESS

515178284

$84.99

33

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

34

Male Terminal

515175232

$1.58

35

Temperature Gauge

515175601

Unavailable

36

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

37

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

38

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

39

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

40

O-RING - Call your local BRP dealership

414807200

Unavailable

41

WASHER - Call your local BRP dealership

517258600

Unavailable

42

Case Holder

415099800

Unavailable

43

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

44

Lock Washer | SE Models

414833700

Unavailable

45

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

46

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 10 MM 1000MM Long

219704407

$2.79

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

47

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

48

Temperature Sensor | Includes 48 - 54.

515175930

Unavailable

Temperature Sensor | Grand Touring 600. Grand Touring 700.

515175820

Unavailable

49

Female Terminal Housing, 2 Circuits

515175670

$8.39

50

Female Terminal

278000632

$2.09

51

Female Lock, 2 Circuits

515175675

$4.55

52

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

53

Female Lock, 3 Circuits

515175676

$5.39

54

Sealing Cap

293000052

$3.19

55

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

56

Cable Support

515175254

Unavailable

57

Mount Dart

293730040

$1.04

58

Console Harness | Includes 58 - 65.

515175826

Unavailable

59

Female Terminal

409010100

$5.61

60

Female Terminal Housing, 1 Circuit

409010400

$7.62

61

Male Terminal

515175232

$1.58

62

Female Terminal

515175231

$4.39

63

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

64

Female Housing, 2 Circuits

515175658

$16.18

65

Male Terminal Housing, 6 Circuits

515175662

$8.79

66

Hood Harness | Includes 66 - 84.

515175827

Unavailable

67

Female Terminal

409010100

$5.61

68

Female Terminal Housing, 1 Circuit

409010400

$7.62

69

Male Terminal

515175232

$1.58

70

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

71

Female Terminal

515175282

$7.86

72

Female Terminal

561503100

$2.41

73

Female Housing

409204300

Unavailable

74

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

75

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

76

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

77

Male Terminal Housing, 6 Circuits

515175662

$8.79

78

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

79

Plug

515175812

$2.19

80

Female Housing, 24 Circuits

515175801

$9.59

81

Retainer Block

515175802

$11.49

82

Wire Seal

515175803

$2.99

83

BLOCK - Call your local BRP dealership

515175804

Unavailable

84

Female Terminal

515175806

$0.99

85

Was 271000110 Protection Trim

219704353

$15.99

86

Housing Support

515175283

$9.19

87

HORN - Call your local BRP dealership

515176035

Unavailable

88

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

89

PLATE - Call your local BRP dealership

515175688

Unavailable

90

Pop Rivet 3/16"

390402200

$0.35

91

Silicone Sealant 51388, 300 ml

296000309

$36.99

92

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

93

Headlamp Screw

732601315

Unavailable

94

Grease Tube Lmz, 400 G

413707500

Unavailable

95

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

96

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

97

Temperature Harness | Includes 40 to 47

515175703

Unavailable

98

Female Terminal

278000998

$4.39

99

Wire Seal

278000999

$3.19

100

Female Terminal

278000632

$2.09

101

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

102

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

103

Female Terminal Housing, 2 Circuits

515175670

$8.39

104

Female Lock, 2 Circuits

515175706

Unavailable

105

Sensor Harness | INCLUDES ITEMS 104 TO 110

515175898

Unavailable

106

Male Terminal

278000631

$4.39

107

Female Terminal

278000632

$2.09

108

Male Lock, 2 Circuits

409207500

$3.19

109

Sealing Cap

293000052

$3.19

110

Male Terminal Housing, 2 Circuits

517175665

Unavailable

111

Male Housing, 6 Circuits

515175673

$15.49

112

Sealing Cap

293000052

$3.19

113

Male Wedge, 6 Circuits

515175678

$5.39

114

Was 293550004 Dielectric Grease, 150 g
