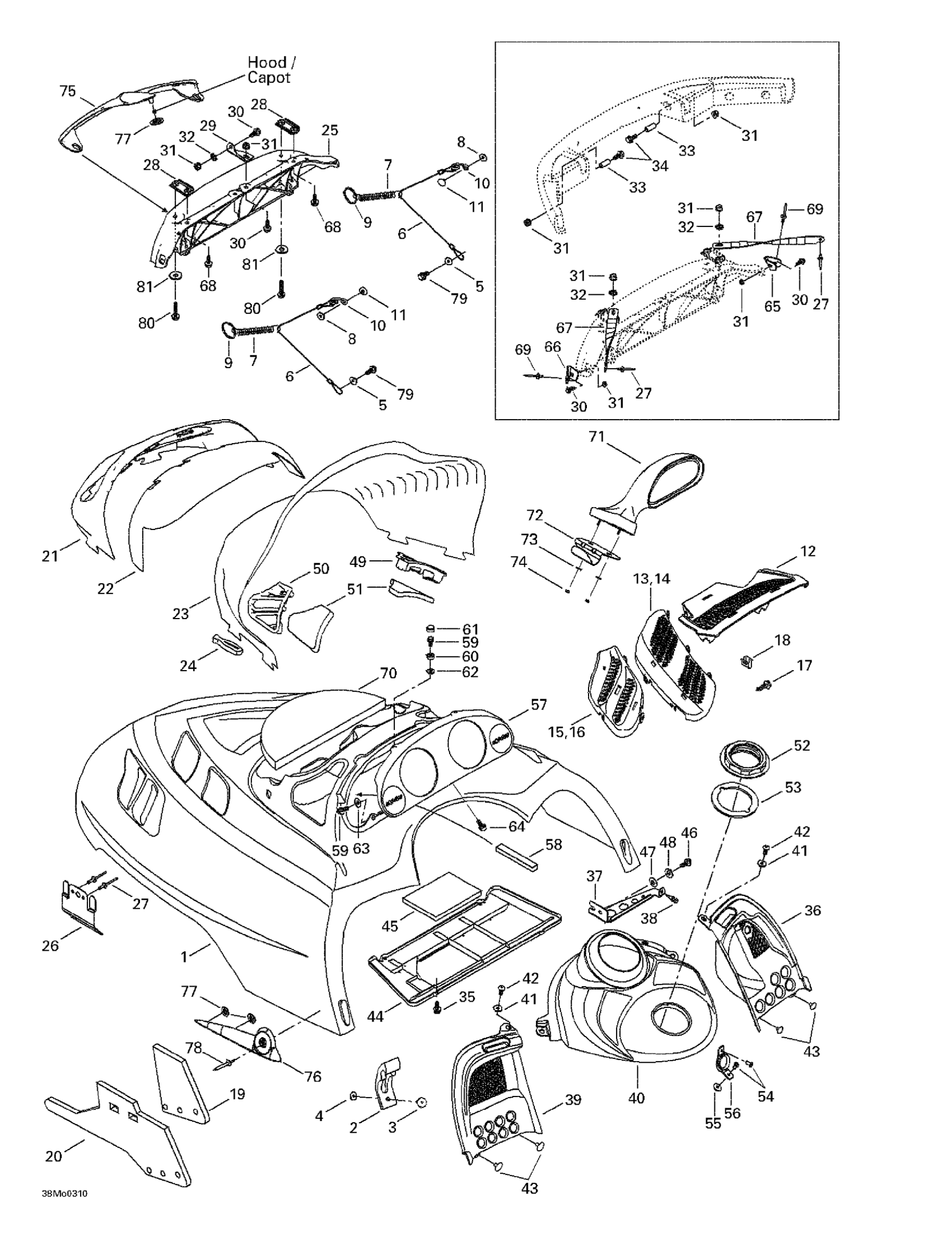

Ski-Doo Grand Touring 500/600/700, 2003 09- Cab, Console Diagram

#

Description
Price

1

Hood, Autumn Red M-549

517302732

Unavailable

HOOD, BLACK, B-160 - Call your local BRP dealership | BLACK (B-160)

517302740

Unavailable

2

Hood Latch

570027100

$13.49

3

Pop Rivet 3/16”

293150108

$1.19

4

Washer

517124300

$0.19

5

Washer | DS 650 X

391301600

$0.48

6

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

7

Spring

415043300

Unavailable

8

Washer

517124300

$0.19

9

RING - Call your local BRP dealership

415058300

Unavailable

10

Bracket

517262800

Unavailable

11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

12

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

Unavailable

13

RH Intermediate Grill, Black | Grand Touring 500.

517302028

Unavailable

RH Intermediate Grill, Black

517302671

Unavailable

14

LH Intermediate Grill, Black | Grand Touring 500.

517302031

Unavailable

LH Intermediate Grill, Black

517302672

Unavailable

15

RH Side Grille

517302034

Unavailable

16

LH Side Grille

517302036

Unavailable

17

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

18

Edge Clip

517302785

$0.88

19

RH Side Foam

517302675

Unavailable

20

LH Side Foam

517302630

Unavailable

21

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

22

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

23

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

$180.99

24

Windshield Latch

570023800

$4.49

25

Hinge

517302631

$48.99

26

Hood Guide

517302615

Unavailable

27

Pop Rivet 3/16”

390910000

$0.57

28

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

29

Hinge Center Plate

517302045

Unavailable

30

Hex. Flange Screw M6 X 16

207661654

$2.11

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Lock Washer Serrated M6

250200041

$1.15

33

BUSHING - Call your local BRP dealership

517302179

Unavailable

34

Hex. Flange Screw M6 X 35

207663544

$0.90

35

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

36

RH CONSOLE - Call your local BRP dealership

517302005

Unavailable

37

RH Console Support

517302621

Unavailable

38

Rubber Stopper

517302624

Unavailable

39

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

40

Center Console | Sport & Sport GT

517302757

Unavailable

Center Console | Grand Touring 600. Grand Touring 700.

517302758

Unavailable

41

Washer | DS 650 X

391301600

$0.48

42

Forming Screw M5 x 16

250000676

$1.01

43

Pop Rivet 3/16"

293150103

$0.55

44

AIR INTAKE PLATE - Call your local BRP dealership

517302836

Unavailable

45

Secondary Foam

517302425

Unavailable

46

Hex. Flange Screw M6 X 12

210261250

$1.90

47

Flat Washer 6 mm

234061410

$1.36

48

Lock Washer M6, Black

234161471

$0.53

49

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

50

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

51

Air Intake Foam

517302151

Unavailable

52

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

53

Gasket

293250029

$14.82

54

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

55

Rubber Stopper

517302286

Unavailable

56

Rope Guide

517302129

Unavailable

57

Indicator Support

517302760

Unavailable

Indicator Support | SE

517302761

Unavailable

58

Foam

517302420

Unavailable

59

Screw K40 X 10

241140060

$1.48

60

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

61

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

62

Flat Washer 4 mm, Stainless

234042600

$1.15

63

Washer

517124300

$0.19

64

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

65

RH Corner Support

517302254

Unavailable

66

LH Corner Support

517302255

Unavailable

67

HOOD CLAMP - Call your local BRP dealership

517302837

Unavailable

68

Hex. Flange Screw M6 X 25

207662544

$0.64

69

Pop Rivet 3/16"

390406500

$0.88

70

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

Unavailable

71

RH Mirror

517302679

Unavailable

LH Mirror

517302681

Unavailable

72

Retainer Plate

517302539

Unavailable

73

Washer

517124300

$0.19

74

Elastic Stop Nut M4

232541414

$0.58

75

Front Hood Moulding

517302780

Unavailable

76

RH Hood Moulding

517302781

Unavailable

LH Hood Moulding

517302782

Unavailable

77

Push Nut

732610072

$2.19

78

Pop Rivet 3/16”

293150092

$3.09

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Hex. Forming Screw M6 X 20

207162060

$1.29

81

Flat Washer M6, Stainless

234062600

$0.77
