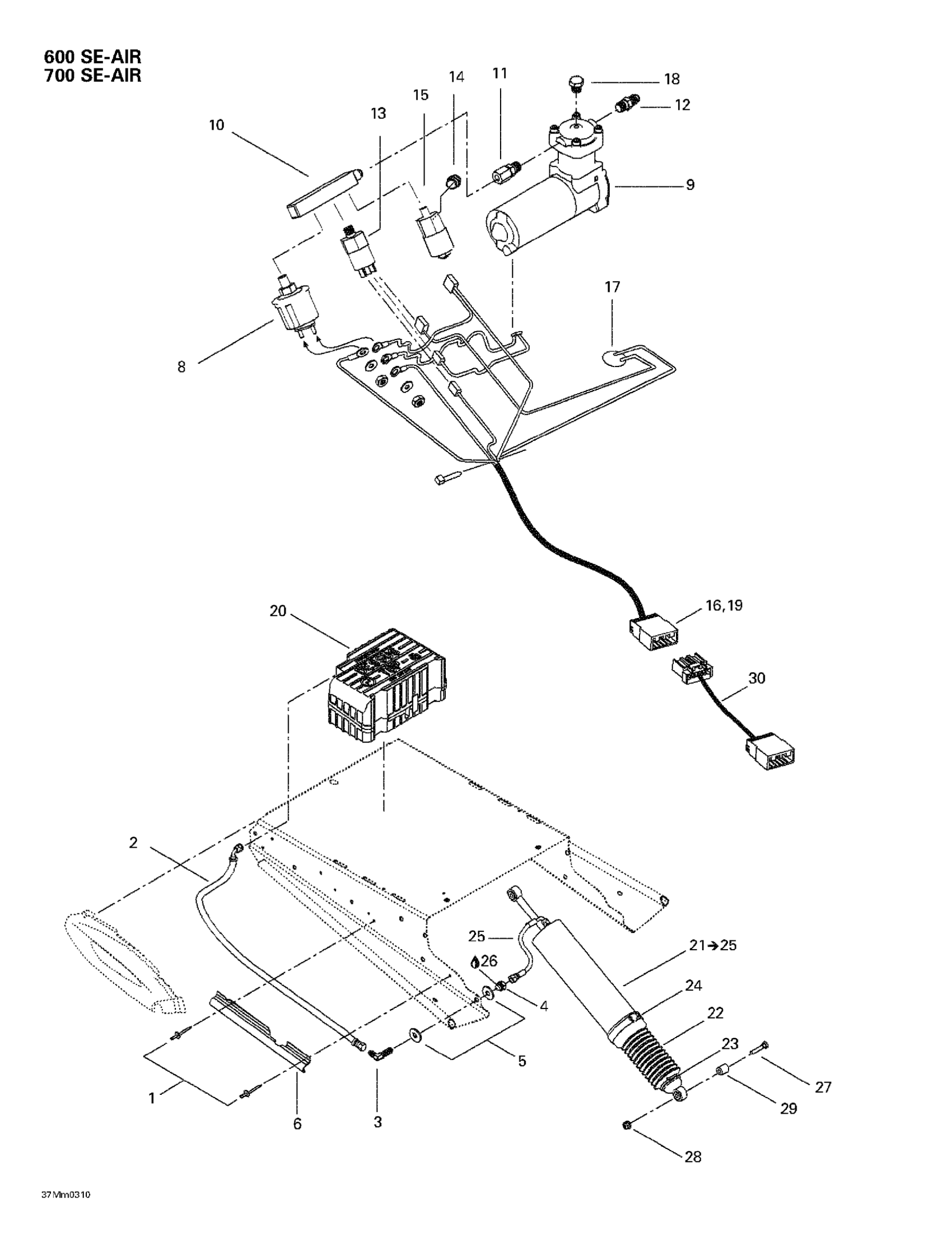

Ski-Doo Grand Touring 500/600/700, 2003 08- Air Shock And Compressor (SE-Air Shock) Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402200

$0.35

2

Pneumatic Line | Grand Touring 600. Grand Touring 700.

503189758

Unavailable

3

Pneumatic Junction | Grand Touring 600. Grand Touring 700.

503189756

Unavailable

4

Nut Junction | Grand Touring 600. Grand Touring 700.

503189846

Unavailable

5

WASHER - Call your local BRP dealership

503189264

Unavailable

6

Protector | Grand Touring 600. Grand Touring 700.

503190318

Unavailable

7

COMPRESSOR ASSY - Call your local BRP dealership | Includes 7 - 19. Grand Touring 600. Grand Touring 700.

503190274

Unavailable

8

Pressure Sender | Grand Touring 600. Grand Touring 700.

415043600

Unavailable

9

Air Compressor | Grand Touring 600. Grand Touring 700.

503189096

Unavailable

10

Pneumatic Adaptor | Grand Touring 600. Grand Touring 700.

503189761

Unavailable

11

Pneumatic Adaptor | Grand Touring 600. Grand Touring 700.

503189762

Unavailable

12

Adaptor | Grand Touring 600. Grand Touring 700.

414893900

Unavailable

13

Valve | Grand Touring 600. Grand Touring 700.

503189212

Unavailable

14

Pressure Regulator | Grand Touring 600. Grand Touring 700.

415099200

Unavailable

15

VALVE - Call your local BRP dealership

503189097

Unavailable

16

Male Terminal

515175232

$1.58

17

Resettable Fuse | Grand Touring 600. Grand Touring 700.

503189825

Unavailable

18

Plug 1/8”-27

504151921

$4.19

19

Male Terminal Housing, 6 Circuits

515175662

$8.79

20

Compressor Box | Grand Touring 600. Grand Touring 700.

503189760

Unavailable

21

Rear Air Shock, Se-Air | Includes 21 - 25. Grand Touring 600. Grand Touring 700.

415128448

Unavailable

22

Protection Boot

570278300

$59.99

23

Tie-Rap 180 mm

414115200

$0.11

24

Tridon Gear Clamp | Grand Touring 600. Grand Touring 700.

408803300

Unavailable

25

Pneumatic Line | Grand Touring 600. Grand Touring 700.

503190267

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Hex. Flange Screw M8 X 40

207684044

$1.48

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Bushing

414936000

$13.99

30

Compressor Harness | Grand Touring 600. Grand Touring 700.

515175875

Unavailable
