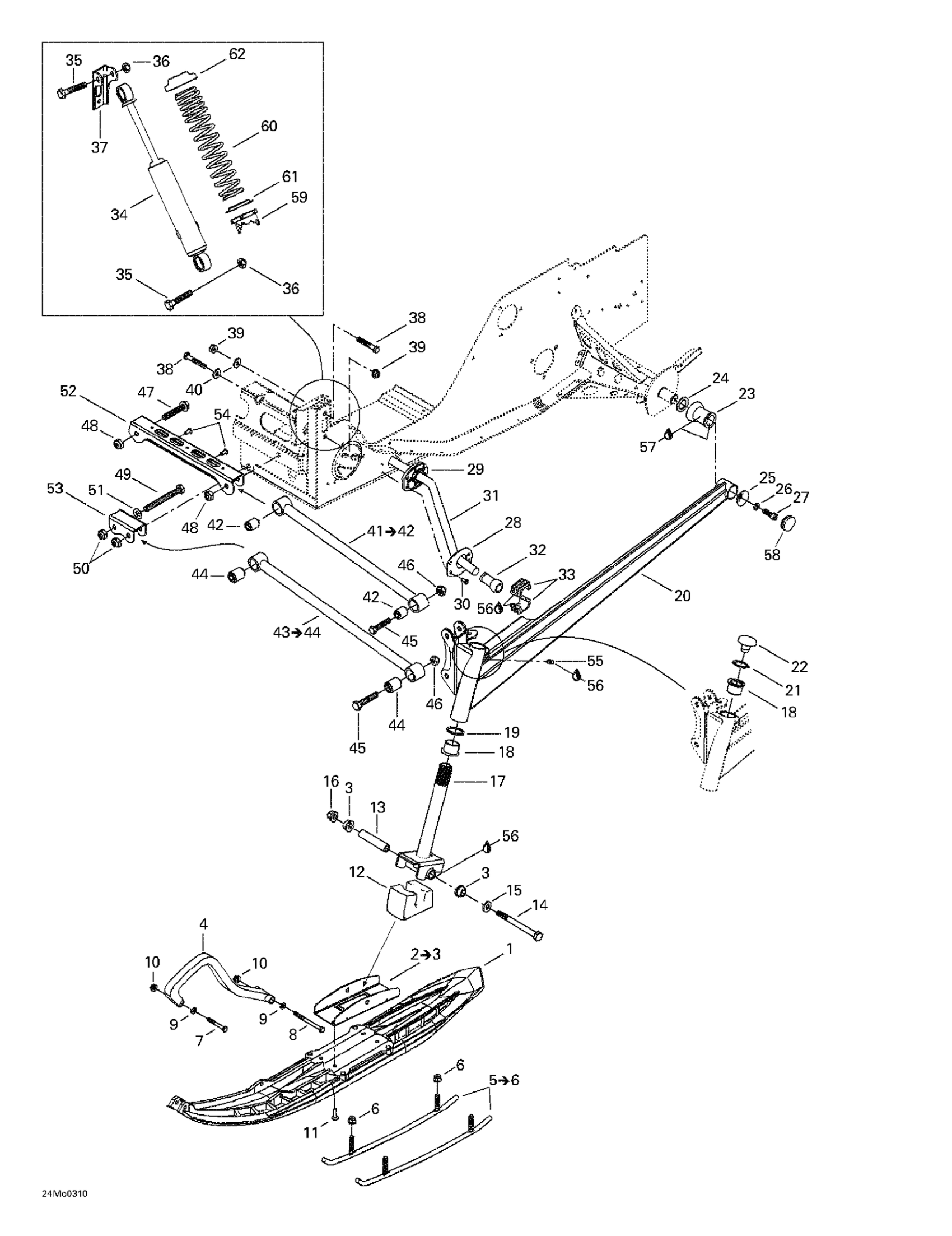

Ski-Doo Grand Touring 500/600/700, 2003 07- Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

$111.49

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$35.99

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$92.99

6

Hex. Flange Elastic Nut M10

233201414

$1.58

7

Hex. Screw M8 X 50

207085044

$1.48

8

Hex. Screw M8 X 90

207089044

$3.48

9

Flat Washer 8 mm

234081410

$0.83

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

$23.99

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

$0.58

16

Flange Nut M10

732610084

$6.79

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

$9.23

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$12.99

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

Unavailable

25

Cup | Package Hunter

705007171

$7.89

26

Lock Washer 8 mm

234181401

$0.92

27

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

28

Plate

505070542

Unavailable

29

BUSHING - Call your local BRP dealership

505070139

Unavailable

30

Pop Rivet 3/16”

390407200

$0.70

31

STABILISATOR - Call your local BRP dealership

505070563

Unavailable

32

BALL JOINT - Call your local BRP dealership

505070819

Unavailable

33

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

34

FRONT SHOCK ASSY - Call your local BRP dealership

505071113

Unavailable

35

Hex. Screw M10 X 55

207005544

$2.22

36

Elastic Locking Nut M10 X 1.5

233601416

$1.69

37

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

38

Hex. Screw M8 X 50

207085044

$1.48

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Washer

506151245

$0.93

41

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

42

Bushing

505070025

Unavailable

43

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

44

Bushing

505070025

Unavailable

45

Hex. Screw M10 X 55

207005544

$2.22

46

Elastic Locking Nut M10 X 1.5

233601416

$1.69

47

Hex. Flange Screw M10 X 55

207605544

$3.38

48

Elastic Locking Nut M10 X 1.5

233601416

$1.69

49

Hex. Screw M10 X 95

207009544

Unavailable

50

Elastic Locking Nut M10 X 1.5

233601416

$1.69

51

Flat Washer 10 mm

234001410

$1.26

52

Upper Arm Bracket

505070010

Unavailable

53

Lower Arm Bracket

505070011

Unavailable

54

Pop Rivet 3/16"

390402200

$0.35

55

Grease Fitting

408200700

$3.49

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

57

Grease, Super Lube

293550030

$28.99

58

CAP - Call your local BRP dealership

572045900

Unavailable

59

Adjustment Cam

505073625

$12.99

60

Spring

505070686

Unavailable

61

Spring Guide

503187500

$10.49

62

Spring Stopper

706200881

$12.99
