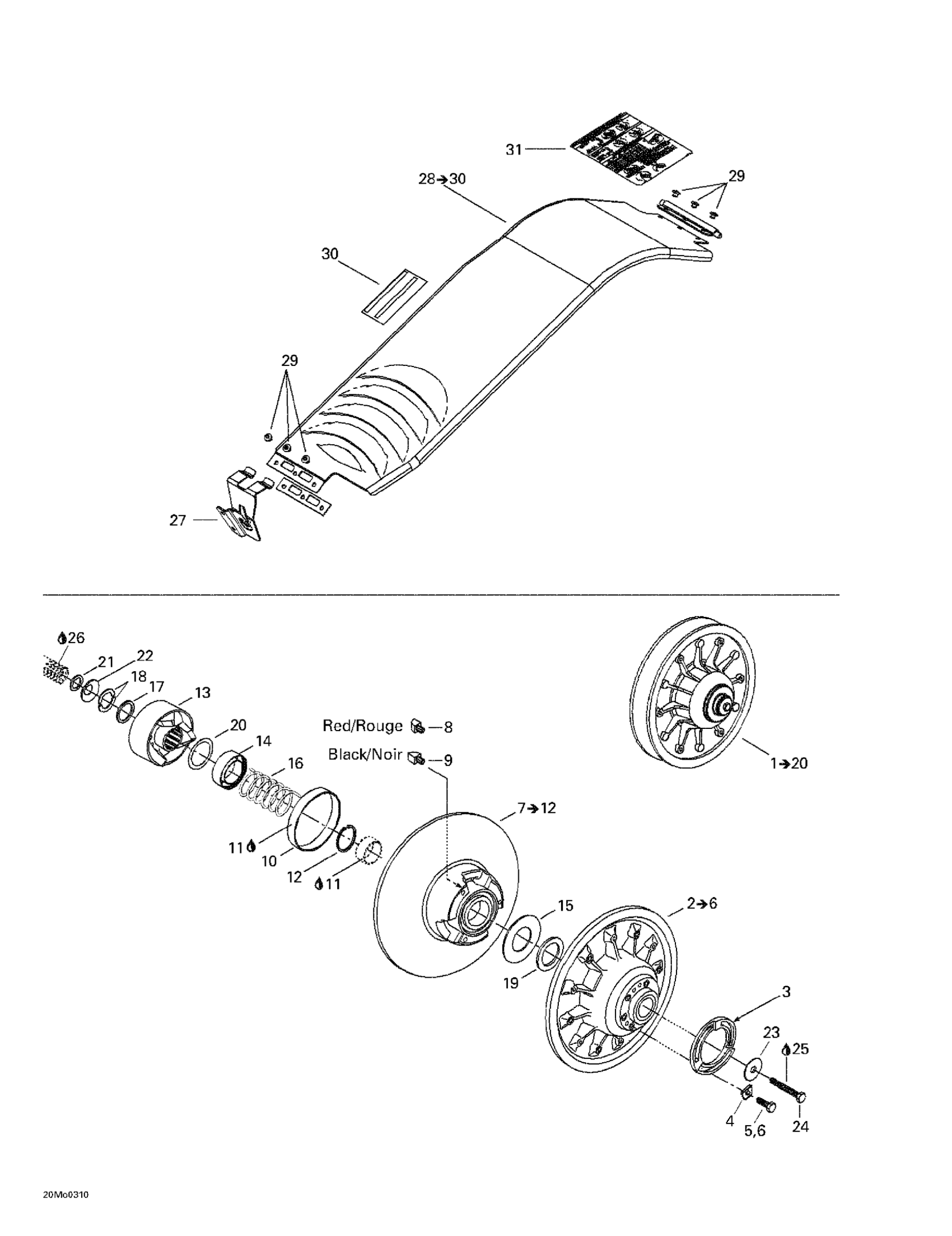

Ski-Doo Grand Touring 500/600/700, 2003 05- Driven Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass’Y | INCLUDES ITEMS 39 TO 42

417126527

Unavailable

3

Adjustment Ring

415005800

Unavailable

4

Adjustment Shim

415005900

Unavailable

5

Hex. Screw M6 X 25

207162544

$1.15

6

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

7

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

8

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

9

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

10

BUSHING - Call your local BRP dealership

417126902

Unavailable

11

Loctite 609, 10 ml

413703100

$26.99

12

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

13

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

CAM ASSY 47 - Call your local BRP dealership | Modèle 800 HO

417126577

Unavailable

14

GUARD - Call your local BRP dealership

417126381

Unavailable

15

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

16

Release Spring, Purple | North America

414978300

$33.99

17

Spacer

417126375

Unavailable

18

HALF KEY - Call your local BRP dealership

371911000

Unavailable

19

SHIM - Call your local BRP dealership

504112300

Unavailable

20

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

21

Spacer

417300265

$2.29

22

Protector

417300055

Unavailable

23

Strength Washer

517302322

$12.63

24

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

27

Bracket

417300001

Unavailable

28

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

29

Pop Rivet 3/16"

390402200

$0.35

30

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

31

Decal, Suspension Adjustment Decal

516001640

Unavailable

Suspension Adjustment Decal | (Air Shock Models only) Grand Touring 600. Grand Touring 700.

516001641

Unavailable
