Partiron

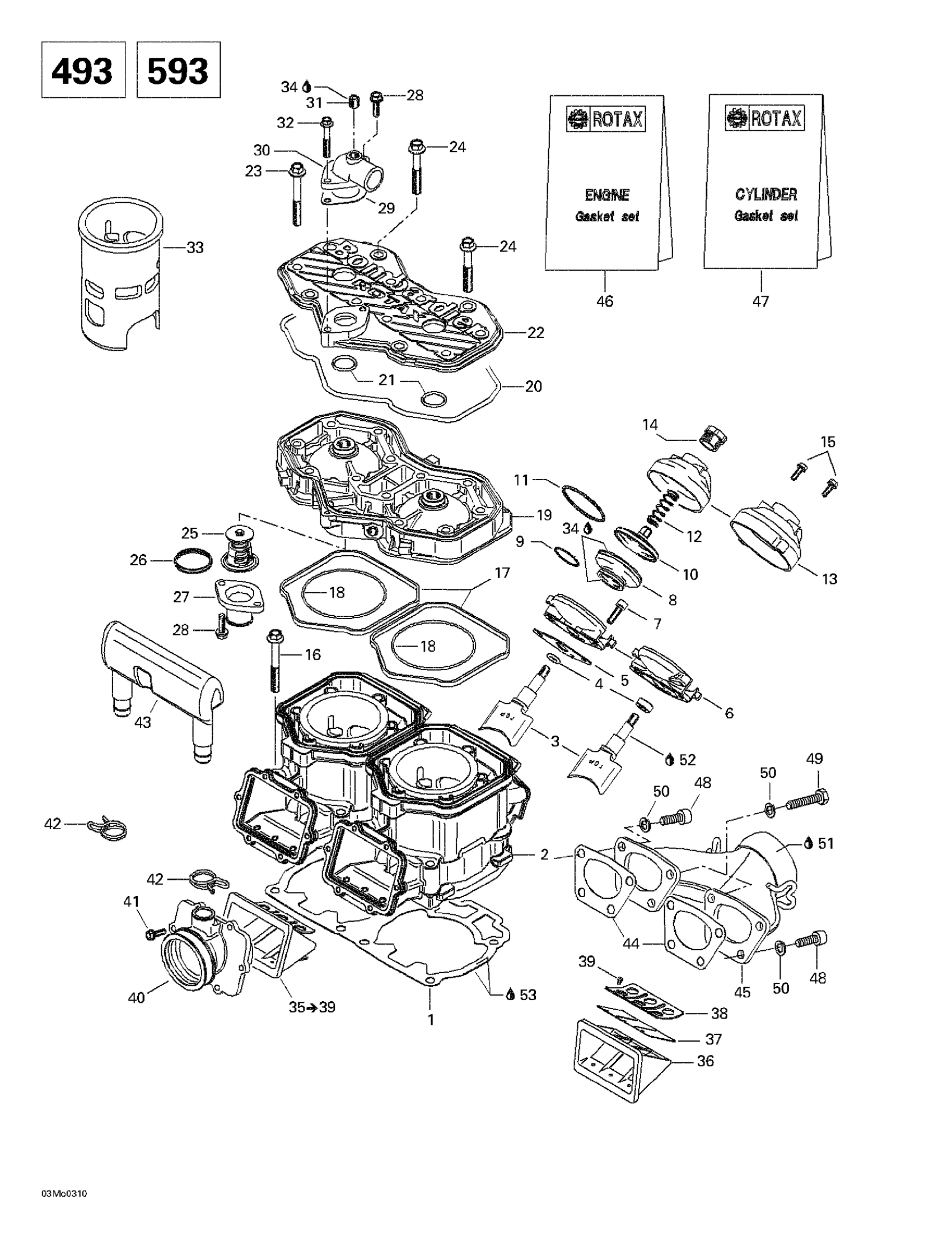

Ski-Doo Grand Touring 500/600/700, 2003 Cylinder, Exhaust Manifold, Reed Valve (493 Diagram

#

Description
Price

1

DOUBLE GASKET 0.8 MM - Call your local BRP dealership | Grand Touring 500.

420931589

Unavailable

Gasket 0.8 mm

420431423

$25.35

DOUBLE GASKET 0.7 MM - Call your local BRP dealership | Grand Touring 500.

420931960

Unavailable

Gasket 0.7 mm

420431422

$26.89

DOUBLE GASKET 0.6 MM - Call your local BRP dealership | Grand Touring 500.

420931587

Unavailable

Gasket 0.6 mm

420431421

$19.20

DOUBLE GASKET 0.5 MM - Call your local BRP dealership | Grand Touring 500.

420931588

Unavailable

Gasket 0.5 mm

420431420

$23.82

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

2

Cylinder With Sleeve | Grand Touring 500.

420613605

Unavailable

2

REBUILD-CYLINDER 493 2000 - Call your local BRP dealership

421000568

Unavailable

Cylinder With Sleeve

420613628

$439.99

Cylinder With Sleeve

420613628

$439.99

3

EXHAUST VALVE - Call your local BRP dealership | Grand Touring 500.

420854490

Unavailable

Exhaust Valve

420854371

$57.66

4

O-Ring

420430110

$3.61

Oil Seal | Included in gasket kit

420950732

$8.34

5

Gasket

420250239

$6.62

6

Valve Housing

420854266

$93.82

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Exhaust Bellows

420260723

$35.07

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

SPRING - Call your local BRP dealership

420239948

Unavailable

Spring This part replaces 420239944.

420239954

$7.31

13

Valve Cover

420911552

$37.66

14

Adjuster Screw

420241221

$12.52

15

Hex. Tapping Screw M5 X 20

420841555

$1.68

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

17

Rubber Ring

420931590

$5.69

18

O-Ring | Grand Touring 500.

420831792

$15.35

O-Ring This part replaces 420850540.

293300026

$2.67

19

Cylinder Head, Silver | Grand Touring 500.

420923885

Unavailable

CYLINDER HEAD - Call your local BRP dealership

420613845

Unavailable

20

O-Ring This part replaces 290950320.

420950320

$11.48

21

O-Ring

420430782

$4.41

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

23

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

24

Hex. Screw M8 X 56.5

420941627

$8.34

25

Thermostat This part replaces 414834100.

420922519

$59.20

26

Sealing Ring

420931272

$15.35

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

28

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

29

Gasket

420850338

$10.28

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

31

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

32

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

33

CYLINDER SLEEVE - Call your local BRP dealership | Grand Touring 500.

420923861

Unavailable

Cylinder Sleeve

420923443

Unavailable

34

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

35

Reed Valve Ass'y

420924519

$50.74

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Reed Pedal

420924532

$43.82

38

Reed Pedal Stop

420924539

$11.52

39

Phillips Screw M3 X 5

420941215

$1.42

40

CARBURETOR SOCKET - Call your local BRP dealership

420867882

Unavailable

41

Taptite Screw M5 X 16

420941928

Unavailable

42

CLAMP - Call your local BRP dealership

420851440

Unavailable

43

Intake Resonator

420867817

Unavailable

44

GASKET - Call your local BRP dealership | Grand Touring 500.

420931615

Unavailable

Gasket

420931610

$11.38

45

Exhaust Manifold | Grand Touring 500.

420973650

Unavailable

Exhaust Manifold

420979543

Unavailable

46

ENGINE GASKET SET - Call your local BRP dealership | Grand Touring 500.

420888722

Unavailable

Gasket Set, Engine

420893070

$209.97

47

CYLINDER GASKET SET - Call your local BRP dealership | Grand Touring 500.

420888726

Unavailable

Gasket Set, Cylinder

420893075

$166.89

48

Socket Head Screw M8 X 25

205082544

$0.92

49

Hex. Screw M8 X 20

207182044

$0.61

50

Lock Washer 8 mm

234181401

$0.89

51

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

52

Molykote G-N, 50 g

420297433

$22.72

53

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
