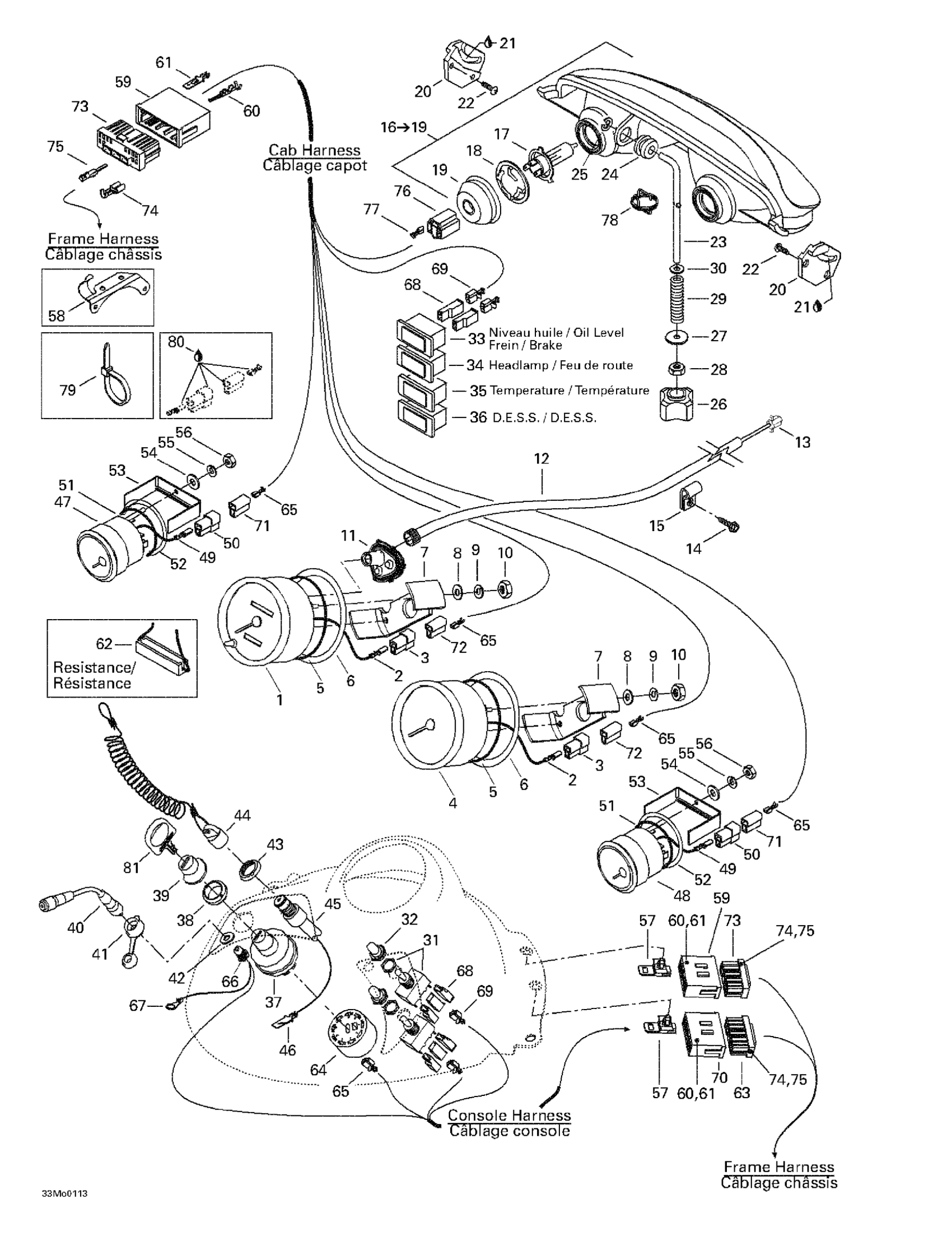

Ski-Doo Grand Touring 500/600/700, 2001 Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175340

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

415101500

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Open Clamp

414176000

$1.86

16

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

17

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

18

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

21

Grease Tube Lmz, 400 G

413707500

Unavailable

22

Headlamp Screw

732601315

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

Unavailable

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

Washer

224060251

Unavailable

28

Elastic Stop Nut M6

232561414

Unavailable

29

SPRING - Call your local BRP dealership

415100600

Unavailable

30

Flat Washer 6 mm

234061410

Unavailable

31

Switch (Heating Grip) | FREERIDE

410107300

$34.58

32

Switch Cover

515175281

$15.03

33

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

34

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

35

Pilot Lamp (Temperature) | Formula Deluxe 500. Formula Deluxe 600.

515175593

Unavailable

36

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

37

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

38

FACE NUT - Call your local BRP dealership

410112100

$14.29

39

Switch Boot

570013700

Unavailable

40

EXTENSION - Call your local BRP dealership

515175971

Unavailable

41

Cap

572103300

$9.65

42

Washer

503175800

$3.26

43

Safety Nut (DESS Switch)

278002963

$2.72

44

DESS

515178284

Unavailable

45

DESS SWITCH - Call your local BRP dealership

515175145

Unavailable

46

Male Terminal

515175232

$1.49

47

Temperature Gauge

515175342

Unavailable

48

FUEL GAUGE - Call your local BRP dealership

515175343

Unavailable

49

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

50

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

51

O-RING - Call your local BRP dealership

414807200

Unavailable

52

WASHER - Call your local BRP dealership

517258600

Unavailable

53

Case Holder

415099800

Unavailable

54

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

55

Lock Washer | SE Models

414833700

Unavailable

56

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

57

Housing Support

515175283

$8.43

58

Cable Support

515175254

Unavailable

59

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

60

Male Terminal

515175232

$1.49

61

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

62

Resistance

515175241

Unavailable

63

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

64

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

65

Female Terminal

561503100

Unavailable

66

Not Available As Spare Part - Friction Washer

Unavailable

67

Not Available As Spare Part - Friction Washer

Unavailable

68

Female Terminal Housing, 1 Circuit

409010400

$7.48

69

Female Terminal

409010100

$5.46

70

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

71

Female Housing

409204300

Unavailable

72

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

73

Female Terminal Housing, 13 Circuits

515175350

Unavailable

74

Female Terminal

515175231

Unavailable

75

Female Terminal

515175282

$6.43

76

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

77

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

78

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

79

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

80

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

81

Blank Key

415129350

Unavailable

82

Frame Harness (Not Shown)

515175549

Unavailable

83

Console Harness (Not Shown)

515175551

Unavailable

84

Hood Harness (Not Shown)

515175550

Unavailable
