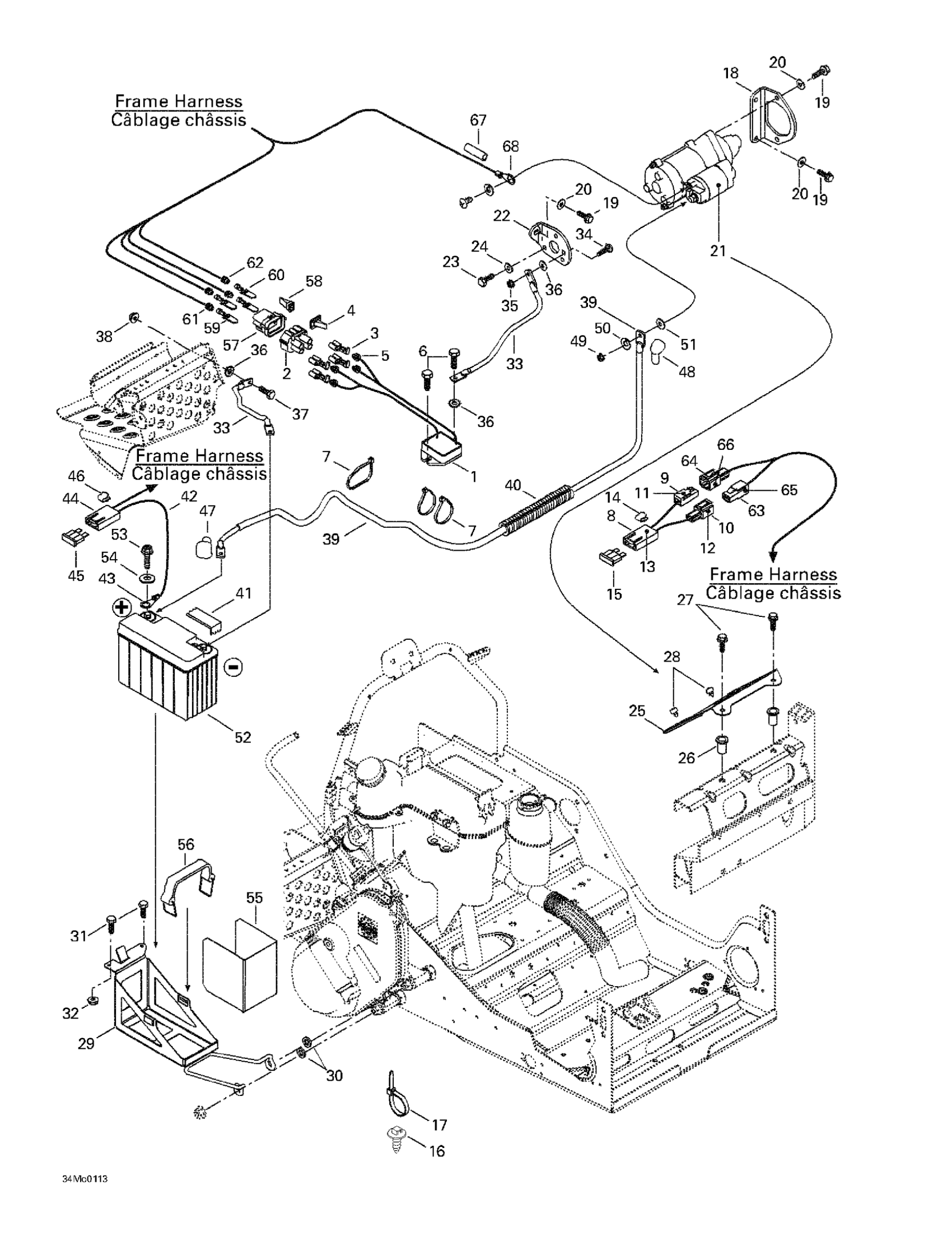

Ski-Doo Grand Touring 500/600/700, 2001 Battery And Starter Diagram

#

Description
Price

1

Voltage Regulator | Includes 1 - 5.

515175217

Unavailable

2

Female Terminal Housing (4 circuits)

409208000

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

4

Female Lock

409013400

Unavailable

5

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

6

Hex. Flange Screw M6 X 16

210261650

$1.22

7

Tie Wrap 368 mm

293750008

$0.85

8

Not Available As Spare Part - Friction Washer

Unavailable

8

Fuse Holder

409004000

Unavailable

9

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

10

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175282

$6.43

13

Female Terminal

409011600

$5.11

14

CLIP - Call your local BRP dealership

409014200

$4.23

15

Fuse, 20 Amperes

409003900

$3.22

16

Mount Dart

293730040

$0.86

17

Tie-Rap 180 mm

414115200

$0.09

18

Starter Bracket (PTO) | Skandic 600.

515175142

Unavailable

19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

20

Flat Washer With Teflon 8 mm

250200008

Unavailable

21

Electric Starter | Skandic 600.

515175565

Unavailable

22

Starter Bracket (MAG) | Skandic 600.

515175441

Unavailable

23

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

24

Flat Washer 6 mm

234061410

Unavailable

25

Protector

515175536

Unavailable

26

Insert

293450275

Unavailable

27

Hex. Flange Screw M6 X 16

207661644

Unavailable

28

Rubber Bumper

293830005

$5.33

29

Battery Support | Formula Deluxe 500. Formula Deluxe 600.

515175472

Unavailable

Battery Support | Formula Deluxe 700.

515175556

Unavailable

30

Washer

503175800

$3.26

31

Hex. Screw M5 X 12

207151244

Unavailable

32

Hex. Flange Elastic Nut M5

233251414

Unavailable

33

GROUND WIRE - Call your local BRP dealership

515175483

Unavailable

34

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

Lock Washer Serrated M6

250200041

Unavailable

37

Hex. Screw M6 X 16

207161644

Unavailable

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

39

Battery Wire

515175482

Unavailable

40

Was 409901700 Tubing (9 mm)

219704399

Unavailable

41

Tape

293740005

Unavailable

42

Battery Fuse Wire | Includes 21 to 22

515175489

Unavailable

43

Open Barrel

278000992

$1.79

44

Fuse Holder

409004000

Unavailable

45

Fuse, 30 Amperes

410917200

$3.22

46

CLIP - Call your local BRP dealership

409014200

$4.23

47

Protection Cap

570151000

$18.43

48

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

49

Hex. Nut M8

232081414

Unavailable

50

Lock Washer 8 mm

234181401

Unavailable

51

Flat Washer 8 mm

234081410

Unavailable

52

BATTERY - Call your local BRP dealership | Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.

515175481

Unavailable

BATTERY (16 AMPERES) - Call your local BRP dealership | Formula Deluxe 700.

515175560

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Deflector | Formula Deluxe 500. Formula Deluxe 600.

515175363

Unavailable

Deflector | Formula Deluxe 700.

515175561

Unavailable

56

Battery Strap

515176044

Unavailable

57

Male Terminal Housing (4 circuits)

409207700

Unavailable

58

Male Lock

409013100

Unavailable

59

Male Terminal

409013000

Unavailable

60

Male Terminal

409010900

Unavailable

61

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

62

Seal

278001223

Unavailable

63

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

64

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

65

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

66

Female Terminal

515175282

$6.43

67

Hose

415079200

Unavailable

68

Ring Terminal

515175504

Unavailable
