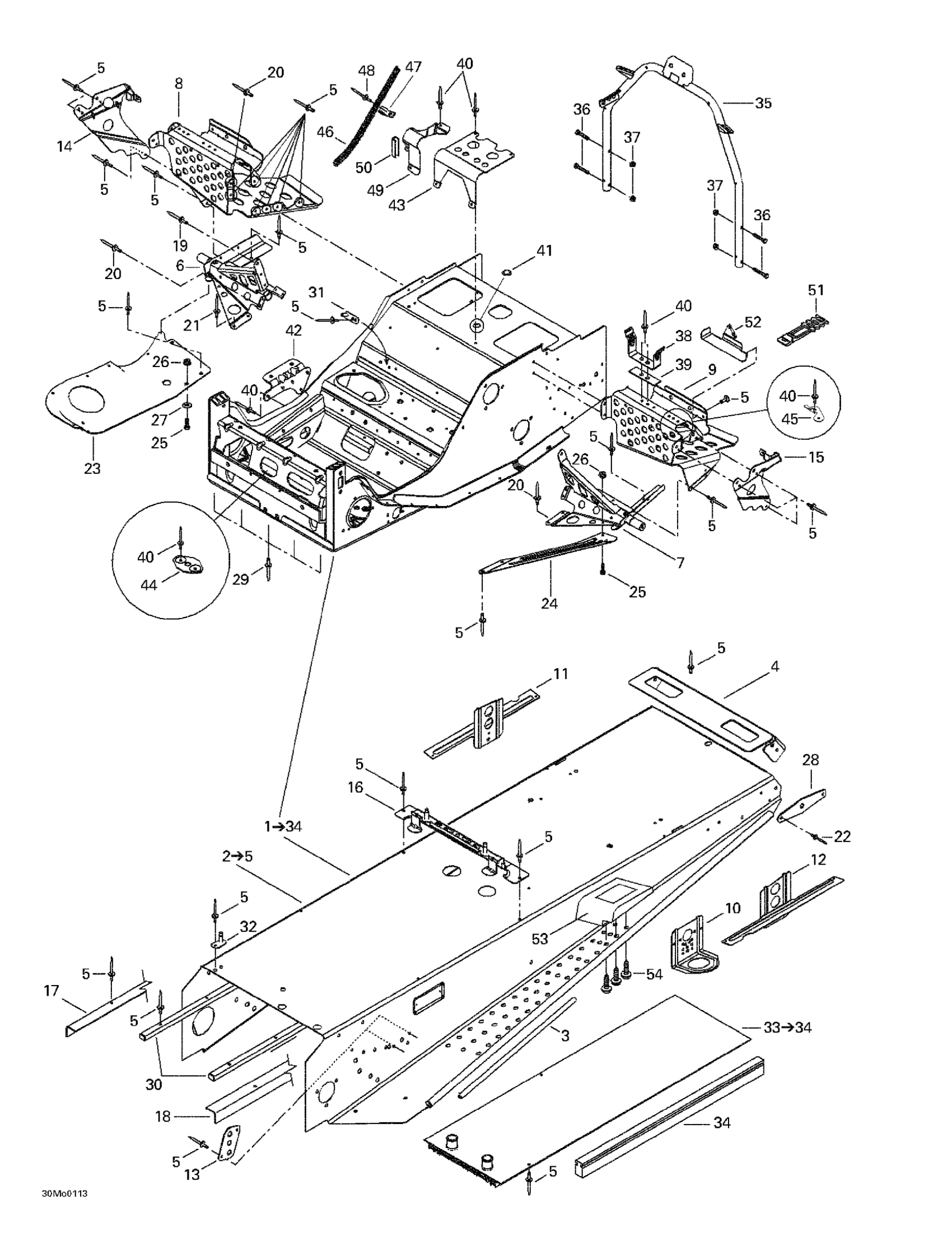

Ski-Doo Grand Touring 500/600/700, 2001 Frame And Accessories Diagram

#

Description
Price

1

Full Moon, Frame | Includes 1 - 34.

518322497

Unavailable

2

Full Moon, Forming Frame | Includes 2 - 5.

518322539

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap

518321873

Unavailable

5

Pop Rivet 3/16"

390402200

$0.26

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

$104.58

8

RH Footrest

518322393

Unavailable

9

LH Footrest

518322394

$57.66

10

Front Bracket

518321495

Unavailable

11

RHRear Bracket

518322289

Unavailable

12

LH Rear Bracket

518322292

Unavailable

13

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

$7.08

14

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

$12.65

15

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

$12.65

16

FUEL TANK BRACKET - Call your local BRP dealership

518321510

$17.66

17

RH Frame Reinforcement

518322395

Unavailable

18

LH Frame Reinforcement

518322396

Unavailable

19

Avex Rivet

390909200

Unavailable

20

Avex Rivet

390909100

$0.29

21

Pop Rivet 3/16"

390402300

Unavailable

22

Pop Rivet 3/16"

390402400

Unavailable

23

RH Bottom Pan Plate | 600

518319760

Unavailable

24

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

$11.06

25

Hex. Screw M5 X 20

207152044

$0.88

26

Hex. Flange Elastic Nut M5

233251414

Unavailable

27

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

28

Rear Reinforcement

518316767

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Frame Protector

518321543

Unavailable

31

Double Bracket

518322391

Unavailable

32

Guide

518321604

Unavailable

33

Rear Radiator | Includes 28 - 29.

517296310

Unavailable

34

Radiator Protector | Grand Touring 500.

518321656

Unavailable

35

Handle Support

518321957

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.74

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

38

Belt Guard Bracket

518202100

$16.12

39

REINFORCEMENT - Call your local BRP dealership

518207500

$6.31

40

Pop Rivet 3/16"

390402200

$0.26

41

CAP - Call your local BRP dealership

414859400

$2.78

42

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

43

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

44

Plate Bracket

518201307

Unavailable

45

TOOL KIT BRACKET - Call your local BRP dealership

518322031

$3.82

46

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

47

Open Clamp

518321570

Unavailable

48

Pop Rivet 3/16"

390406500

Unavailable

49

Hose Support

518319762

Unavailable

50

Was 271000110 Protection Trim

219704353

Unavailable

51

LATCH - Call your local BRP dealership

570069700

Unavailable

52

Tool Kit Support

518321999

Unavailable

53

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

54

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable
