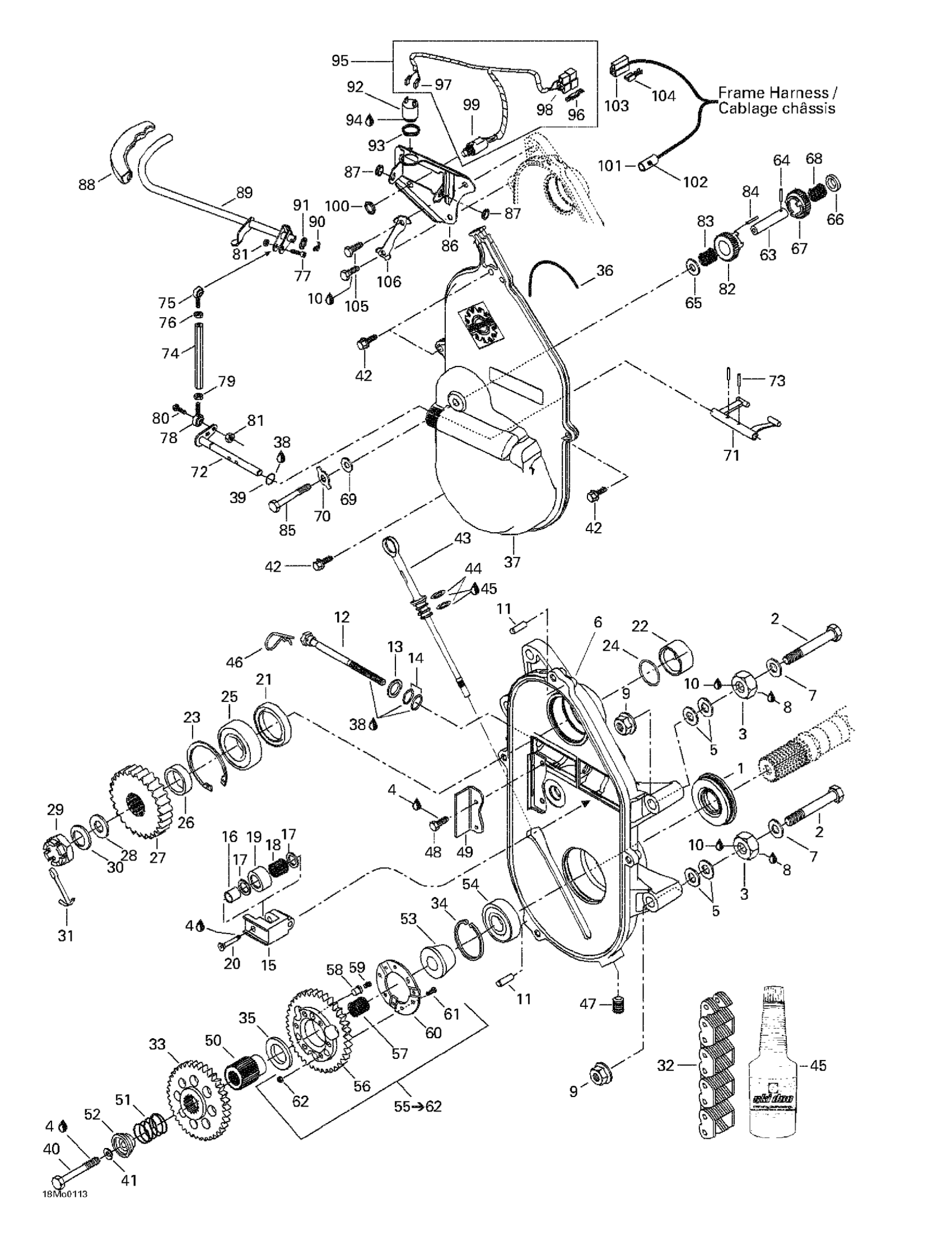

Ski-Doo Grand Touring 500/600/700, 2001 Transmission Diagram

#

Description
Price

1

Oil Seal Ass'y

504151918

Unavailable

2

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

3

Spacer

504083800

Unavailable

4

Loctite 271, 10 ml

293800005

Unavailable

5

WASHER - Call your local BRP dealership

504073700

Unavailable

6

CHAINCASE - Call your local BRP dealership

504151776

Unavailable

7

Washer

503183800

$3.20

8

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

9

Hex. Flange Elastic Nut M10

233201414

$1.26

10

Loctite 243, 10 ml

293800060

$20.77

11

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

12

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

13

Flat Washer 10 mm

234001410

Unavailable

14

O-Ring

414484400

$7.31

15

Chain Tensioner

504151951

Unavailable

16

SPACER - Call your local BRP dealership

504080200

Unavailable

17

WASHER - Call your local BRP dealership

504080300

Unavailable

18

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

19

ROLLER - Call your local BRP dealership

414531300

Unavailable

20

SCREW - Call your local BRP dealership

732601144

Unavailable

21

SEAL - Call your local BRP dealership

504151927

Unavailable

Oil Seal

293200158

Unavailable

22

SPACER - Call your local BRP dealership

507031500

Unavailable

23

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

24

O-RING - Call your local BRP dealership

414876700

Unavailable

25

Ball Bearing

293350115

Unavailable

26

SHIM - Call your local BRP dealership

504147200

Unavailable

27

22 Teeth Sprocket (Narrow) | Formula Deluxe 500.

504074700

Unavailable

Sprocket, 23 Teeth (Large)

504085400

Unavailable

28

SPACER - Call your local BRP dealership

504152049

Unavailable

29

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

30

Spring Washer

417000900

Unavailable

31

Cotter Pin

371801300

Unavailable

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

32

Drive Chain Narrow, 74 Links | 550F

504151859

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

Unavailable

33

SLIDING GEAR, 56 TEETH - Call your local BRP dealership

504096800

Unavailable

34

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

35

WASHER - Call your local BRP dealership

504094300

Unavailable

36

O-Ring

415046400

$24.58

37

COVER - Call your local BRP dealership

504151845

Unavailable

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

39

O-RING - Call your local BRP dealership

414773200

$2.28

40

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

41

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

42

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

43

FILLER CAP ASSY - Call your local BRP dealership

504151750

Unavailable

44

O-RING - Call your local BRP dealership

414969400

Unavailable

45

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

46

Hair Pin

414575600

Unavailable

47

Plug 1/8”-27

504151921

Unavailable

48

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

49

SLIDER CHAIN - Call your local BRP dealership

504152036

Unavailable

50

Coupling Axle

504097700

Unavailable

51

Spring Release

504153178

Unavailable

52

CAP - Call your local BRP dealership

504151964

Unavailable

53

RETAINING RING - Call your local BRP dealership

504076300

Unavailable

54

Ball Bearing

504152005

Unavailable

55

SPROCKET ASS'Y (44 TEETH) - Call your local BRP dealership | Includes 55 - 62. Formula Deluxe 500.

581095900

Unavailable

SPROCK ASSY, 44 TEETH - Call your local BRP dealership | Includes 55 to 63

581096800

Unavailable

56

SPROCKET (44 TEETH) - Call your local BRP dealership | Formula Deluxe 500.

504088200

Unavailable

Sprocket, 44 Teeth

504084400

Unavailable

57

NEEDLE BEARING - Call your local BRP dealership

414772600

$16.12

58

DRIVE PIN - Call your local BRP dealership

504076800

Unavailable

59

SPRING - Call your local BRP dealership

414772700

$3.85

60

RETAINER RING - Call your local BRP dealership

504076100

Unavailable

61

Hex. Screw M5 X 20

207152044

$0.88

62

NUT-LOCK SPRING DIN.980V - Call your local BRP dealership

233551416

Unavailable

63

Reverse Shaft

504083100

$46.12

64

Rolled Pin M3 X 10

250400010

$1.85

65

Spacer

504077300

$6.26

66

Ring

504078700

$17.66

67

Sprocket Ass'y (19 Teeth) | Includes 67 - 68. Formula Deluxe 500.

581098200

Unavailable

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$103.82

68

NEEDLE BEARING - Call your local BRP dealership

414773100

$11.51

69

Washer

504082900

Unavailable

70

TAB LOCK - Call your local BRP dealership

504087700

Unavailable

71

Fork

504075800

Unavailable

72

Fork Axle

504151806

Unavailable

73

SPRING PIN - Call your local BRP dealership

414772500

$1.37

74

TIE ROD - Call your local BRP dealership

504151814

Unavailable

75

RH BALL-JOINT - Call your local BRP dealership

414773400

Unavailable

76

Hex. Nut M6

232061414

$0.44

77

Socket Head Screw M6 X 25

205062560

$1.42

78

LH BALL-JOINT - Call your local BRP dealership

414773500

$41.51

79

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

80

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

81

Elastic Stop Nut M6

232561414

Unavailable

82

SPROCK ASS?Y, 19 TEETH - Call your local BRP dealership | Includes 76 to 77

581122200

Unavailable

83

NEEDLE BEARING - Call your local BRP dealership

414805000

Unavailable

84

Alignement Rod

570048600

Unavailable

85

Hex. Screw M8 X 90

207089044

$2.82

86

SUPPORT, REVERSE - Call your local BRP dealership

504151823

Unavailable

87

BUSHING - Call your local BRP dealership

504151818

Unavailable

88

Grip

570064600

Unavailable

89

HANDLE - Call your local BRP dealership

504151810

Unavailable

90

COTTER PIN - Call your local BRP dealership

371800800

Unavailable

91

WASHER - Call your local BRP dealership

503189264

Unavailable

92

DC Horn

414805102

Unavailable

93

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

94

Silicone Sealant 51388, 300 ml

296000309

Unavailable

95

Switch Ass'y | Includes 95 - 99.

515175318

Unavailable

96

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

97

Female Terminal

409010300

$4.12

98

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

99

Push Button Switch

515175317

Unavailable

100

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

101

Hose

415079200

Unavailable

102

Not Available As Spare Part - Friction Washer

Unavailable

103

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

104

Female Terminal

561503100

Unavailable

105

Hex. Screw M10 X 35

207103544

Unavailable

106

Locking Tab

507029900

Unavailable
