Partiron

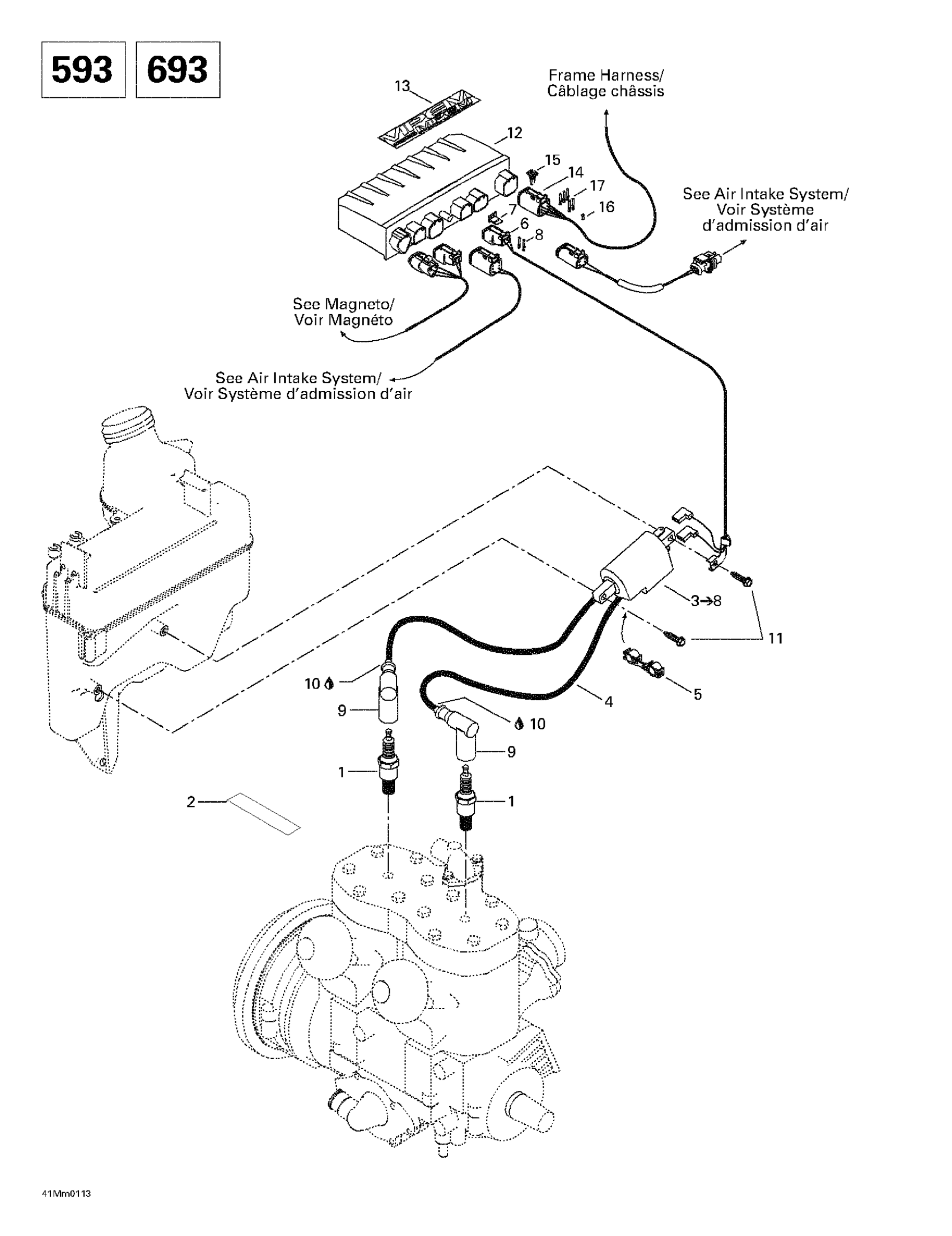

Ski-Doo Grand Touring 500/600/700, 2001 Ignition (593, 693) Diagram

#

Description
Price

1

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

2

Spark Plug Decal

516000986

Unavailable

3

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

512059039

Unavailable

4

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

5

Plastic Clip, Spark Plug Wire

410914600

Unavailable

6

Female Connector, 2 Circuits

409207300

$9.60

7

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

8

Female Terminal

278000632

Unavailable

9

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

11

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

12

Calibration Module (Standard) | Formula Deluxe 600.

512059300

Unavailable

Calibration Module (GSE/GS) | Formula Deluxe 700.

512059385

Unavailable

13

Electrical Box Decal

516000245

Unavailable

14

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

15

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

16

Sealing Cap

293000052

Unavailable

17

Female Terminal

278000632

Unavailable
