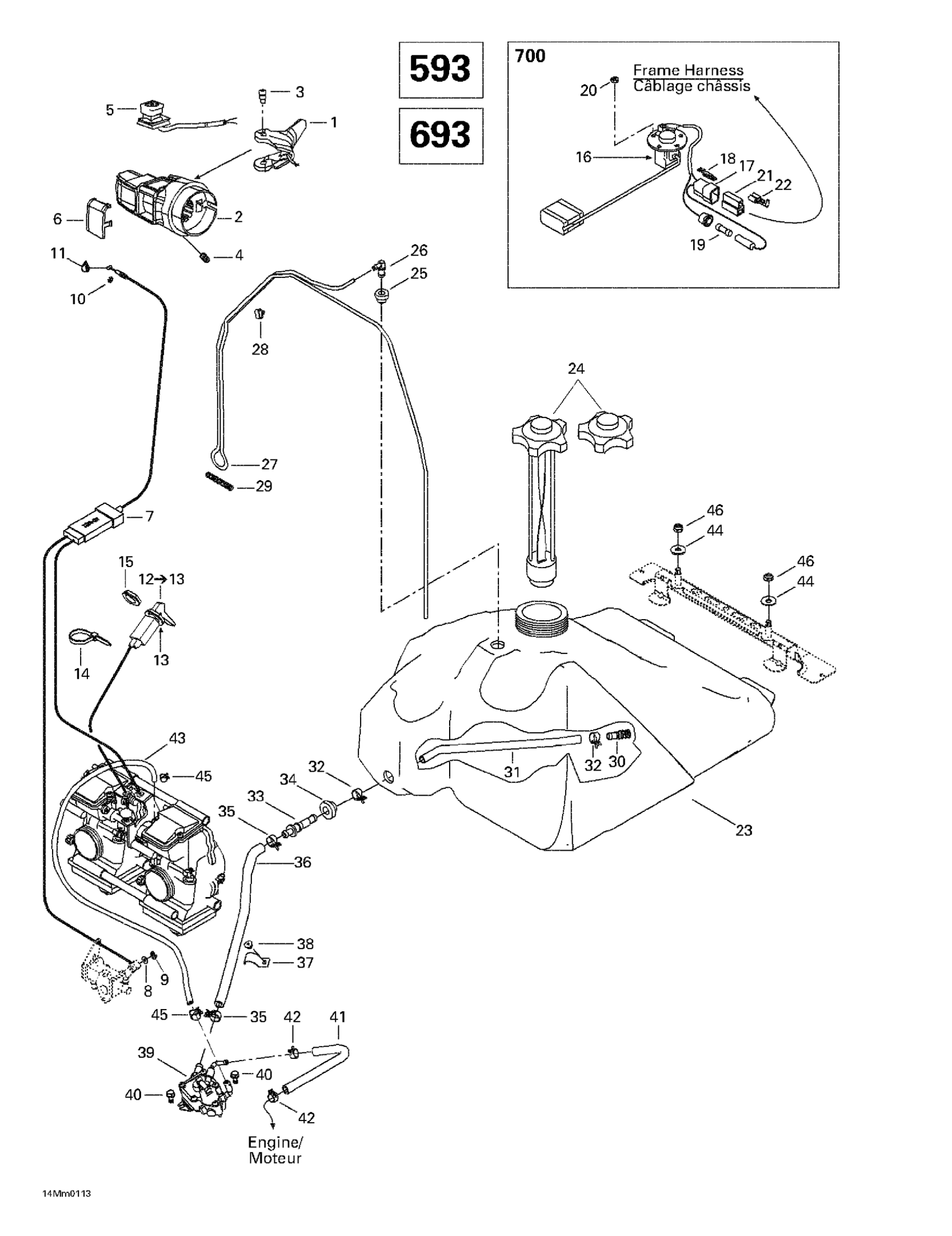

Ski-Doo Grand Touring 500/600/700, 2001 Fuel System Diagram

#

Description
Price

1

Throttle Handle

512059481

Unavailable

2

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

3

Flange Screw

732601143

$4.02

4

Socket Set Screw M8 X 10

414440800

$4.00

5

Kill Switch

515175410

Unavailable

6

Switch Cover

572100901

Unavailable

7

Throttle Cable | Formula Deluxe 600. Formula Deluxe 700.

512059388

Unavailable

8

Flat Washer 8 mm, Nylon

234081100

$1.00

9

Circlip

414753500

$0.59

10

Circlip

414274500

Unavailable

11

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

12

CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42

512059110

Unavailable

13

Lock Washer, Interior Teeth

394103300

Unavailable

14

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

15

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

16

Fuel Sensor Ass’Y | SE / INCLUDES ITEMS 14 TO 17

515175170

Unavailable

17

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

18

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

19

Fuse, 0.25 Ampere

410112400

Unavailable

20

Elastic Stop Nut M5

232551414

Unavailable

21

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

22

Female Terminal

561503100

Unavailable

23

Fuel Tank

513032987

Unavailable

Fuel Tank | SE

513032988

Unavailable

24

Fuel Tank Cap | Sport / Sport GT

513033020

$35.35

Fuel Tank Cap

513033025

$19.47

25

Grommet

513032908

$8.74

26

Male Connector

414814100

$2.18

27

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

28

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

29

SPRING - Call your local BRP dealership

414818200

Unavailable

30

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

31

Hose

415005700

$5.49

32

Norma Spring Clamp

513033010

Unavailable

33

Male Connector

414872700

Unavailable

34

Grommet | Europe

707800347

Unavailable

35

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

36

Formed Hose

513032903

$28.43

37

CLIP - Call your local BRP dealership

415018200

$2.89

38

Pop Rivet 3/16"

390406500

Unavailable

39

Fuel Pump | Formula Deluxe 600. Formula Deluxe 700.

403901804

Unavailable

40

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

41

Hose

219704549

Unavailable

42

Spring Clamp

414415200

$0.83

43

Formed Tube

513032986

Unavailable

44

Flat Washer 8 mm

234082410

$1.11

45

Spring Clamp

414420700

Unavailable

46

Hex. Elastic Stop Nut M8

232581414

Unavailable
