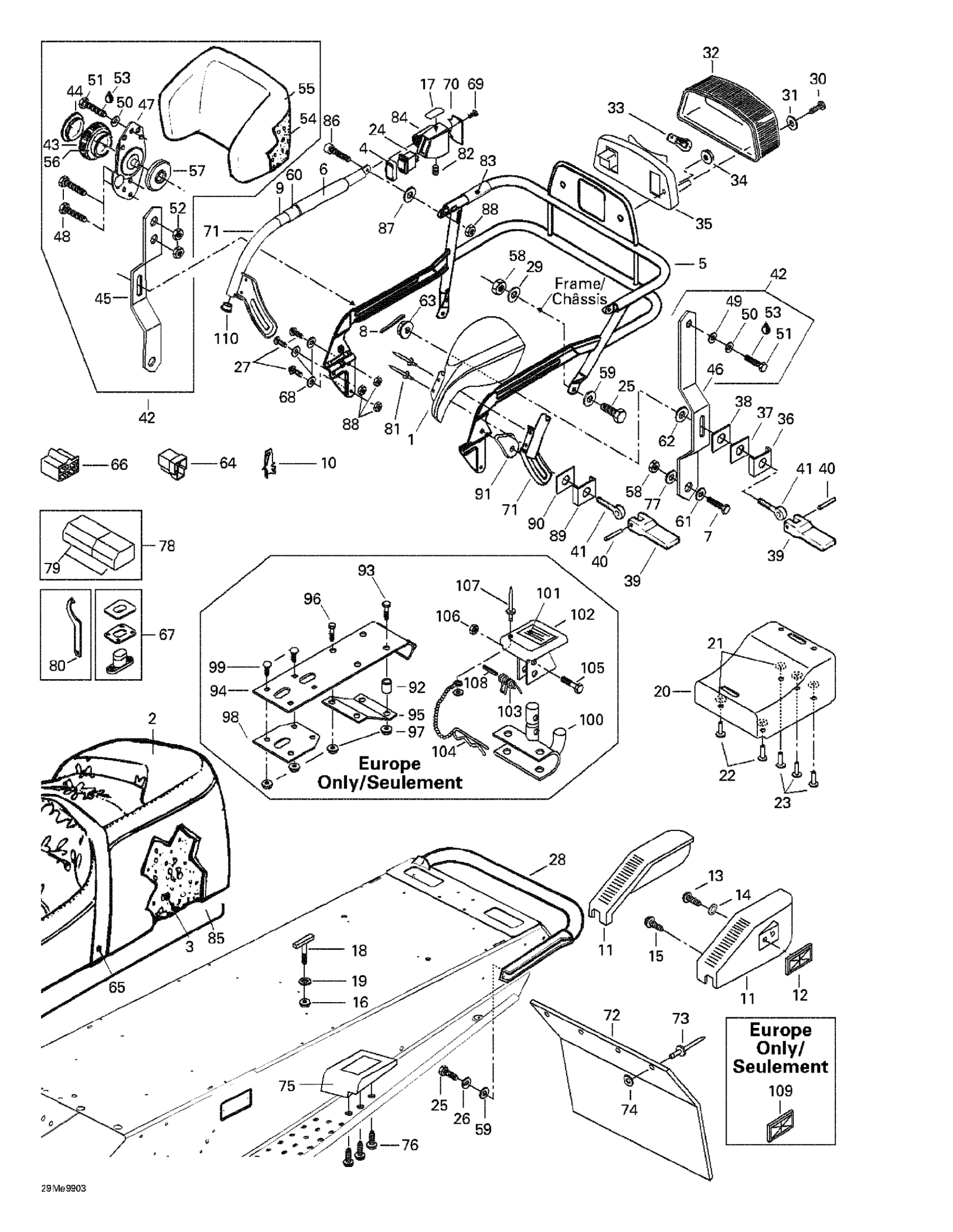

Ski-Doo Grand Touring 500/583, 1999 09- Seat And Accessories Diagram

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

Seat Cover

510003570

Unavailable

Foam Seat

415041902

Unavailable

Switch Protector

511000002

Unavailable

Rack Ass'y

511000006

Unavailable

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

Hex. Screw M8 X 25

207182584

Unavailable

Hair Pin

414108300

Unavailable

Reflective Sheet

414988700

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

RH Rear Moulding Ass'y | Includes 11 - 14.

580651300

Unavailable

LH Rear Moulding Ass'y

580651400

Unavailable

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

«T» Bolt

732601221

Unavailable

Push Nut

732610072

$2.19

Rear Trunk | GT 700.

572051200

Unavailable

Flat Washer M5

234051410

$0.53

Not Available As Spare Part - Friction Washer

Unavailable

Pop Rivet 3/16"

390906800

$0.93

Rocker Switch

511000001

Unavailable

Hex. Screw M8 X 20

207182044

$0.74

Lock Washer 8 mm

234181401

$0.92

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

Rear Bumper | Includes 32 to 33

517272510

Unavailable

Yellow, Washer

503183200

$3.19

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

Washer - Call your local BRP dealership

414516400

Unavailable

Lens

414513700

$28.99

Bulb

520000758

$9.10

Hex. Flange Elastic Nut M5

233251414

$1.04

Taillamp Housing

415109800

Unavailable

Guide

517257300

Unavailable

Rubber Shim

570027400

Unavailable

SPACER - Call your local BRP dealership

517251300

Unavailable

Lock Lever

572038200

Unavailable

Pin

414821400

$7.55

Eye Bolt

517257600

Unavailable

Backrest Ass'y | GT SE.

510003560

Unavailable

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

Cap

414821000

Unavailable

RH Arm

517296400

Unavailable

LH Arm

517296500

Unavailable

Recliner

414813300

Unavailable

Hex. Screw M8 X 25

207182544

$0.90

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

Lock Washer 8 mm

234181401

$0.92

Hex. Screw M8 X 20

207182044

$0.74

Hex. Elastic Stop Nut M8

232581414

$0.56

Loctite 243, 10 ml

293800060

$21.49

Backrest Foam

414821200

Unavailable

Backrest Cover | GT SE.

510003562

Unavailable

STRIP - Call your local BRP dealership

415015500

Unavailable

Cap

517250500

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

Flat Washer 8 mm

234081410

$0.83

Heating Grip

515175573

$63.99

Conical Spring Washer M8

234281474

$1.48

Washer

414819500

Unavailable

Nut

517250000

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

Holding Strap

414985400

Unavailable

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

Washer

517293700

Unavailable

Screw

732601255

Unavailable

Plate

572089300

Unavailable

RH Arm, Rack

511000012

Unavailable

LH Am, Rack

517300900

Unavailable

Snow Guard (Blue)

520000018

Unavailable

Pop Rivet 3/16"

293150100

$1.09

Flat Washer

517225900

$0.18

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Washer

414819600

Unavailable

Tool Kit

529027900

Unavailable

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

Socket Wrench 10/13 mm

529014900

$0.94

Socket Wrench 21/26 mm

529014800

Unavailable

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

Was 412500100 Rope-Starter

219704403

$158.99

Starter Grip

529000060

$14.15

Spacing Tool

529035501

$4.72

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

Wrench-Adjuster

529030900

Unavailable

Pop Rivet 3/16"

390906800

$0.93

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

Grip, Short, 60 mm

415050400

Unavailable

Switch Housing

572089200

Unavailable

Sub-Seat

510003595

Unavailable

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

Flat Washer 6 mm

234062100

$1.26

Elastic Stop Nut M6

232561414

$0.55

Guide

517290000

Unavailable

Outer Spacer

570063800

Unavailable

Spacer Block

572088900

Unavailable

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

Support

517275500

Unavailable

Reinforcement | Europe

517223500

Unavailable

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Inner Plate

517256100

Unavailable

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

Hitch | Europe

517199300

Unavailable

Instruction Label (Hitch)

414998500

Unavailable

Hitch Protector | Europe

517152700

Unavailable

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

Hair Pin

114045200

$11.11

Hex. Screw M6 X 30

207063044

$1.26

Elastic Stop Nut M6

232561414

$0.55

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable
